- mpn941B
- brandname: TB WOOD'S
- manufacturername: TB WOOD'S

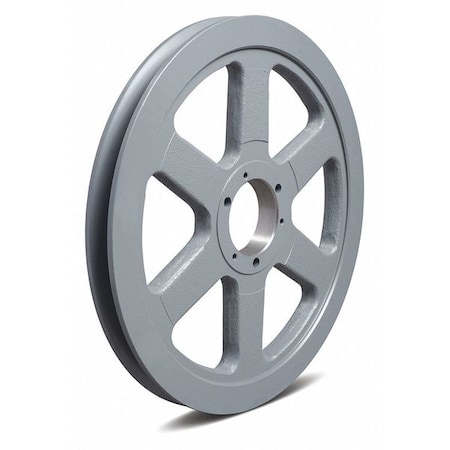

TB Woods 941B Classical V-Belt Sheave, B Belt Section, 1 Groove, SDS Bushing required, Cast Iron, 9.75" OD
- Brand: TB Woods
- PartNumber: 941B
- Model: 941B
- Color: Grey
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3L Pitch Diameter | Not Applicable |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 9.25 in |
| 4L, A, or AX Belt Pitch. | 9 in |
| 5L Pitch Diameter | 9.813 in |
| 5L, B, or BX Belt Pitch. | 9.4 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 9.25 in |
| AX Pitch Diameter | 9.25 in |
| B Pitch Diameter | 9.813 in |
| Balance | Standard, 1 plane |
| Belt section | A-B |
| Bore Type | Bushed |
| Bore type | Quick disconnect bushing |
| Brand | Tb Woods |
| Bushing | SDS |
| Bushing Required | SDS |
| BX Pitch Diameter | 9.813 in |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.72 |
| Construction | Arm |
| Current Stock | 22 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 9.4 |
| Dimension | 1.31 |
| Dimension (E) | 0.50 |
| Dimension (L) | 1.31 |
| Dimension (M) | 0.19 |
| Face Diameter | 9.75 in |
| Face width | 1 |
| Face Width | 1 in |
| Face width (in) | 1.00 |
| Fits Shaft Dia. | 1/2 in to 1-15/16 in |
| For Belt Family | Classical, Classical Co. |
| For Belt Section (broad. | 4L, A, or AX, 5L, B, or. |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX, 4. |
| For Bushing Size | SDS |
| For Bushing Type | Quick Detachable |
| For V-Belt Section | 4L, A, AX, B, BX |
| For V-Belt Type | Classical, Cogged |
| Groove cross section se. | A-B |
| Hub location | 0.13 |
| Hub location (in) | 0.13 |
| I.D. | 8.06 |
| Industry Number | 941B |
| Inertia WR? | 73 |
| Inside diameter (in) | 8.06 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Lead Time | Expected to ship in 1-2. |
| Length through Bore | 1 5/16 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | CI |
| Max RPM | 2570 |
| Maximum Bore Diameter | 1 15/16 in |
| Minimum Bore Diameter | 1/2 in |
| Mpn | 941B |
| Number of Grooves | 1 |
| Number of grooves | 1 |
| O.D. | 9.75 |
| Outside Diameter | 9.75 in |
| Outside diameter (in) | 9.75 |
| Overall Width | 1 1/2 in |
| Pitch diameter | 9.81 |
| Pitch Diameter | Not Applicable, 9.81 in |
| Pitch Diameter for V-Be. | 4L: 9.25 in / 5L: 9.813. |
| Pulley Bore Type | Quick Detachable Bushed. |
| Pulley Construction | Arm |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 9.75 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 2570 |
| Set Screw Included | No |
| SKU | ZO-G0260574 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672022651 |
| Weight | 7.6 lb |
