TE Raychem 761825-000

B07NQS5M5N

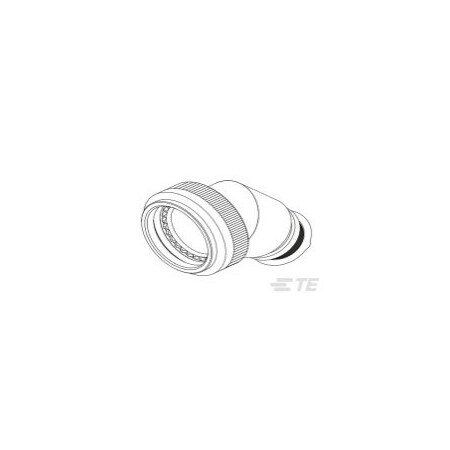

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Adapter Angle45
Adapter Entry Size18
Adapter Plating MaterialCadmium (AMS-QQ-P-416, .
Backshell MaterialAluminum
Base Product NumberTXR41AB45
Cable Diameter Range12.7 ? 20.5 mm[.5 ? .1 .
Cable Entry Diameter.2 ? 28.6 mm[.01 ? 1.13.
Cable Exit45?
Cable Opening-
CategoryConnectors, Interconnec.
ColorOlive Drab
Connector Detail Specif.MS24266, MS27467, MS274.
Connector General Speci.MIL-DTL-38999 Series I,.
Connector Shell Size24,25
Diameter - Outside1.720"" (43.70mm)
FeaturesTinel Lock
For Use With/Related Pr.MIL-DTL-38999 Series I,.
Includes4 pcs - 1 Backshell, 1 .
Ingress Protection-
MaterialAluminum Alloy
Material Flammability R.-
MfrTE Connectivity Raychem.
Operating Temperature R.-65 ? 175 ?C[-85 ? 347 .
Overbraid TerminationTinel-Lock Ring
PackageBulk
Package Quantity1
Part StatusActive
PlatingCadmium
Pluggable I/O Accessory.Tinel-Lock Adapter
Salt Spray Resistance500 Hr
SeriesTXR, Raychem TXR
Shell Size - Insert24, 25
ShieldingShielded
TE Adapter Code41
Termination Device Incl.TR18BI
Termination Device TypeSide-Entry Tinel-Lock R.
Thread Size1 7/16-18 UNEF
TypeBackshell, Heat Shrink .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key2395369126.201225In StockTE Connectivity Raychem Cable Protection126.2012 @ 25
Onlinecomponents.com761825-000131.623In StockTE Connectivity / Raychem Brand131.62 @ 3
Newark44M2582148.825In StockRAYCHEM - TE CONNECTIVITY148.8 @ 25
WaldomTE CONNECTIVITY RAYCHEM TXR41AB45-2418BI153.52252TE CONNECTIVITY / RAYCHEM153.52 @ 25
Allied ElectronicsE5197717154.985In StockTE Connectivity154.98 @ 5
thumbzoomZoroG400963131191.991In StockRaychem191.99 @ 1
