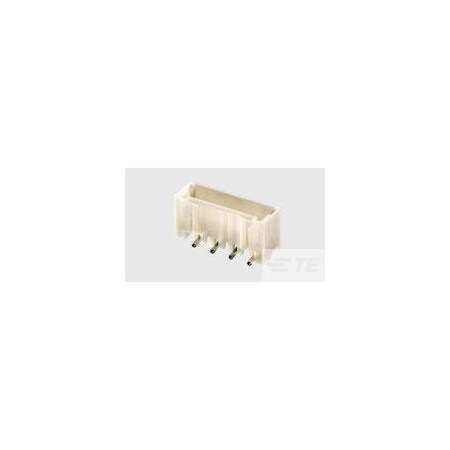

TE Connectivity 292232-5

mpn292232-5
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 292232-5

Brand: TE Connectivity
PartNumber: 292232-5
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applications	General Purpose
Base Product Number	292232
Category	Connectors, Interconnec.
Color	Beige
Connection Material	Brass
Connector Terminates To	Printed Circuit Board
Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	-
Contact Finish Thicknes.	-
Contact Length - Mating	0.094" (2.40mm)
Contact Length - Post	-
Contact Material	Brass
Contact Plating Thickne.	1 ?m
Contact Shape	Square
Contact Type	Male Pin, Pin
Current Rating	2 A
Current Rating (Amps)	Varies by Wire Gauge
Description	CONN HEADER SMD 5POS 1..
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	292232-5-ND - Tape & Re.
Fastening Type	Detent Lock
Features	Board Guide, Pick and P.
Flammability Rating	UL 94 V-0
Height	6.9 mm
Ingress Protection	-
Insulation Color	Beige
Insulation Height	0.272" (6.91mm)
Insulation Material	Polyamide (PA), Nylon, .
Item	PCB Mount Header
Length	0.393 in
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	292232-5
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-0
Max. Insulation Dia.	0.041 in
Max. Single Wire Size	24 AWG
Max. Temp.	105?C
Max. Voltage	50V AC/DC
Mfr	TE Connectivity AMP Con.
Min. Single Wire Size	28 AWG
Mounting Type	Surface Mount
Number of Contacts	5
Number of Positions	5
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-30?C ~ 105?C
Overall Contact Length	-
Package	Tape & Reel (TR)
Pitch - Mating	0.059" (1.50mm)
Product Status	Active
Row Spacing - Mating	-
Series	Mini CT
Shrouding	Shrouded - 4 Wall
Standards	UL 94V-0; CSA Certified.
Style	Board to Cable/Wire
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder
Voltage Rating	50VAC
Width	0.185 in
Wire Type	Discrete

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Waldom	TE CONNECTIVITY AMP BRAND 292232-5	0.68	500	1500	TE CONNECTIVITY/AMP BRAND	0.68 @ 500
Newark	17R9386	0.835	20000	119	AMP - TE CONNECTIVITY	0.835 @ 20000
Digi-Key	1863248	1.152	500	1500	TE Connectivity AMP Connectors	1.152 @ 500
Zoro	G601041553	525.0	1	119	Te Connectivity	525.0 @ 1
