TE Connectivity 2-644803-4

B00KSOGKWA

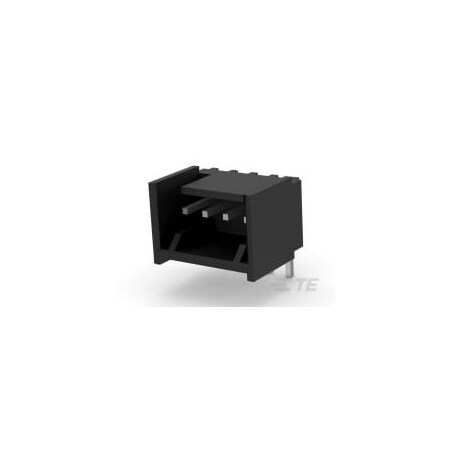

TE Connectivity Part Number 2-644803-4

TE Connectivity Part Number 2-644803-4zoom

Attributes

Key Value
Alternate Part No.571-2-644803-4
ApplicationWire-to-Board
ApplicationsGeneral Purpose
Base Product Number644803
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact GenderPin (Male)
Contact Length - Mating0.200" (5.08mm)
Contact Length - Post0.130" (3.30mm)
Contact MaterialCopper Alloy
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating5 A
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER R/A 4POS 2..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA30926-ND
Fastening TypeFriction Lock
Features-
Flammability RatingUL 94 V-0
Housing MaterialPolyester
Ingress Protection-
Insulation ColorBlack
Insulation Height0.343" (8.71mm)
Insulation MaterialPolyester
Latching TypeFriction Lock
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.2-644803-4
Manufacturer Product Nu.2-644803-4
Manufacturer Standard L.15 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting AngleRight
Mounting TypeThrough Hole, Right Ang.
Number of Positions4
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Overall Contact Length-
PackageBulk
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
SeriesMTA-100
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination Post Length3.3 mm
Termination StyleThrough Hole
TypeShrouded
Voltage Rating250 V, 250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark40P27460.2841838AMP - TE CONNECTIVITY0.284 @ 2
WaldomTE CONNECTIVITY 2-644803-40.3715002TE Connectivity0.37 @ 1500
Onlinecomponents.com2-644803-40.47011751TE Connectivity / AMP Brand0.4701 @ 2
thumbzoomZoroG8009280130.8715002Te Connectivity0.87 @ 1500
thumbzoomswatee.com2-644803-40.9111656TE Connectivity0.91 @ 2
thumbzoomDigi-Key6984410.9611038TE Connectivity AMP Connectors0.96 @ 2
