NTN Bearing LM67048/LM67010

B00X3RX0PY

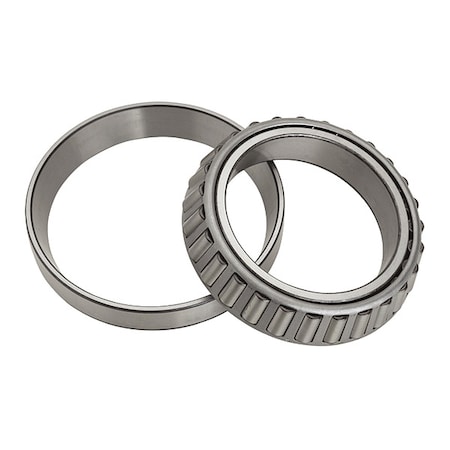

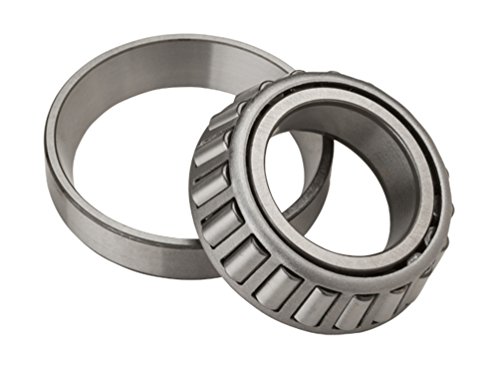

NTN Bearing LM67048/LM67010 Tapered Roller Bearing Cone and Cup Set, American-Made, Case Carburized Steel, 1.25" Bore, 2.328" OD, 0.66" Width

NTN Bearing LM67048/LM67010 Tapered Roller Bearing Cone and Cup Set, American-Made, Case Carburized Steel, 1.25" Bore, 2.328" OD, 0.66" Widthzoom

Attributes

Key Value
Bearing Industry Number4T-LM67048/LM67010
Bore Dia. (mm)31.75 mm
Bore Diameter1 1/4 in
Bore TypeCylindrical
BrandNtn
Cone Width0.465 in
Cone Width (mm)11.81 mm
Country of Origin (subj.Japan
Current Stock97
Dynamic Load Capacity7,750 lbf
Dynamic Load Capacity (.7,750 lb
Flange DiameterNot Applicable
Flange ThicknessNot Applicable
Flange TypeNot Applicable
Housing Fillet Radius0.05 in
International ShippingNo
ItemTapered Roller Bearing .
Lead TimeExpected to ship in 1-2.
Lubrication OpeningsNone
Maximum Temperature248 Degrees F
Minimum Temperature-40 Degrees F
MpnLM67048/LM67010
Number of RowsOne
Outside Dia. (mm)59.13 mm
Outside Diameter2 5/16 in
Overall Width0.625 in
Raceway Ring ShapeTapered Roller
Ring MaterialAlloy Steel
Ring Material GradeAISI 52100
Roller MaterialAlloy Steel
Roller Material GradeAISI 52100
Shaft Fillet Radius0.05 in
SKUZO-G0745424
Specifications/Environm.Standard
StandardsABMA
Static Load Capacity9,200 lbf
Static Load Capacity (L.9,200 lb
SubCategoryPower Transmission
System of MeasurementInch
Two Row DesignNot Applicable
UPC4547359482652

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG074542416.1144Ntn0.416.1 @ 1
thumbzoomsimsupply.comZO-G074542427.45197Ntn27.45 @ 1
thumbzoomMisumi USALM67048/LM6701027.651In Stock18NTN27.65 @ 1
motionindustries.com0066646327.931In StockNTN27.93 @ 1
