TB Woods 951C

mpn951C
brandname: T.B. Woods
manufacturername: T.B. Woods

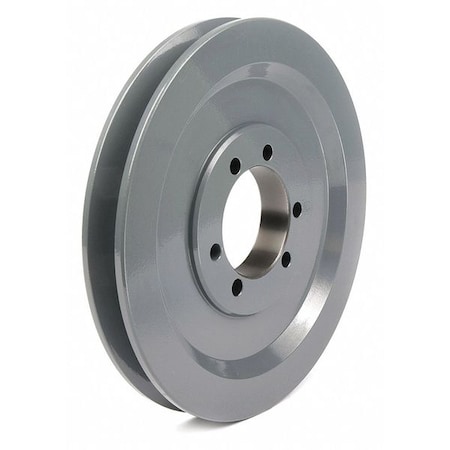

TB Woods 951C Classical V-Belt Sheave, C Belt Section, 1 Groove, SF Bushing required, Cast Iron, 9.90" OD

TB Woods 951C Classical V-Belt Sheave, C Belt Section, 1 Groove, SF Bushing required, Cast Iron, 9.90" OD

zoom

Brand: TB Woods
PartNumber: 951C
PackageQuantity: 1
Binding: Misc.
Manufacturer: TB Woods
Label: TB Woods

Attributes

Key	Value
Balance	Standard, 1 plane
Belt section	C
Bore type	Quick disconnect bushing
Bushing	SF
Component WR2 (lbs ft2)	1.31
Datum diameter	9.5
Dimension	2
Dimension (E)	0.56
Dimension (L)	2.00
Dimension (M)	0.06
Face width	1.38
Face width (in)	1.38
Groove cross section se.	C
Hub location	0.13
Hub location (in)	0.13
I.D.	7.69
Inertia WR?	126
Inside diameter (in)	7.69
Item	V-Belt Sheave,Classical.
Material type	CI
Max RPM	2530
Number of grooves	1
O.D.	9.9
Outside diameter (in)	9.90
Pitch diameter	9.9
RPM upper limit	2530

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G1534893	76.99	1	In Stock	11	Tb Woods	15.0	76.99 @ 1
	MRO Supply	346436	245.91	1	In Stock		TB Woods		245.91 @ 1
	us.rs-online.com	73931413	272.8	1	In Stock		TB Wood's (Altra)		272.8 @ 1
