TE Connectivity AV2220E612Q04

mpnAV2220E612Q04
brandname: TE Connectivity ALCOSWITCH Switches
manufacturername: TE Connectivity ALCOSWITCH Switches

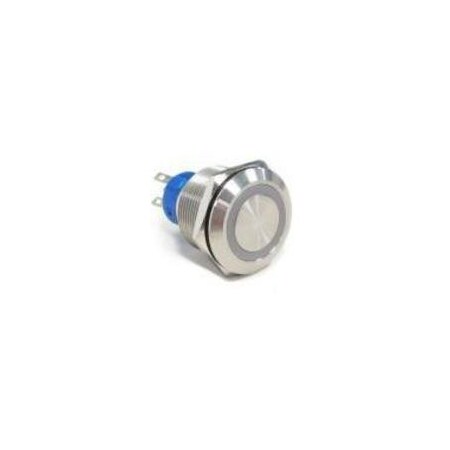

Flush Pushbutton Switch

Flush Pushbutton Switch

zoom

Brand: TE Connectivity
PartNumber: AV2220E612Q04
Model: AV2220E612Q04
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Actuator Marking	No Marking
Actuator Profile	Flush
Actuator Style	Round
Actuator Type	Round, Button, Flush
Base Product Number	AV2220
Bushing Length	22 in, 22
Bushing Style	Threaded
Case Material	PBT
Category	Switches
Circuit	DPDT
Color - Actuator/Cap	Silver
Configuration (Pole-Thr.	Double Pole - Single Th.
Contact Current Rating	5, 5 A
Current Rating (Amps)	3A (AC)
Description	SWITCH PUSHBUTTON DPDT .
Detailed Description	Pushbutton Switch DPDT .
Detent Style	Audible
Digi-Key Part Number	450-2359-ND
Dust Proof	Yes
Electrical Life	50,000 Cycles
ESD Grounding Terminal	Without
Features	-
Illuminated	Yes
Illumination Type, Color	LED, Green
Illumination Voltage (N.	12 VDC
Ingress Protection	IP67 - Dust Tight, Wate.
Manufacturer	TE Connectivity ALCOSWI.
Manufacturer Product Nu.	AV2220E612Q04
Manufacturer Standard L.	18 Weeks
Mechanical Life	1,000,000 Cycles
Mfr	TE Connectivity ALCOSWI.
Mounting Angle	Vertical
Mounting Type	Panel Mount, Front, Pan.
Number of Actuators	Single
Operating Function	Momentary
Operating Temperature	-20?C ~ 55?C
Package	Tray
Panel Cutout Dimensions	Circular - 22.20mm Dia
Process Sealed	Yes
Product Status	Active
Product Type	Switch
Series	AV22
Snap Action	Without
Support Bracket	Without
Switch Contact Plating .	Silver
Switch Function	On-Mom
Switch Type	Pushbutton
Tactile	No
Termination Style	Solder Lug
Termination Type	Wire Lugs
Type	Anti-Vandal, Illuminated
Voltage Rating	250 VAC, 250
Voltage Rating - AC	250 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	TE CONNECTIVITY ALCOSWITCH AV2220E612Q04	12.47	5	78		TE CONNECTIVITY / ALCOSWITCH		12.47 @ 5
	Newark	41AJ7783	18.71	50	58		ALCOSWITCH - TE CONNECTIVITY		18.71 @ 50
	Digi-Key	6043845	22.344	5	78		TE Connectivity ALCOSWITCH Switches		22.344 @ 5
	RS Delivers	123-6283	23.148	1	2		TE Connectivity		23.148 @ 1
	TE Connectivity	5-2213772-3	26.073	1	90		TE Connectivity (TE)		26.073 @ 1
	Zoro	G100942986	84.95	1	In Stock		Alcoswitch		84.95 @ 1
