Weg Electric 00518ET3H184JP-W22

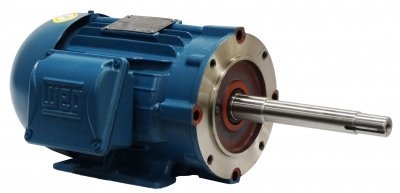

Weg Electric 00518ET3H184JP-W22, 5HP, 1800 RPM, 3PH, 575V, 182/4JP Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Weg Electric 00518ET3H184JP-W22, 5HP, 1800 RPM, 3PH, 575V, 182/4JP Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating5.16 A
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 5HP 4P 182/4JP WF.
Dimensions20.475 in L
Drive End Flange TypeC-Face
Efficiency %89.5 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight116.00
Family SeriesWEG Electric Motors
FL Amps5.16
FL Efficiency89.5
FlangesWithout
Frame184JP, 182/4JP
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower5 hp
HP5
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number00518ET3H184JP-W22
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00518ET3H184JP-W22
MaterialCast Iron
MFG Part #:00518ET3H184JP-W22
Model12588463
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
NEMA Frame182/4JP
Net Weight0 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Part Number00518ET3H184JP-W22
Phase3, 3 ph
Product TypePump
Replaces00518EP3H184JP-W22
RotationCW/CCW
RPM1,800 RPM, 1700 - 1800,.
Service Factor1.25
Speed1755 rpm
Speed (RPM)1800
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
Torque Rating14.8 ft-lb
UPC:7909158361076
Voltage575 V, 575V, 575
Voltage (AC)575 VAC
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial00518ET3H184JP-W22870.751In Stock17WEG870.75 @ 1
thumbzoommotorsandcontrol.com00518ET3H184JP-W22870.751In StockWEG Electric116.0870.75 @ 1
thumbzoomMRO Supply2519915916.91In StockWEG916.9 @ 1
thumbzoomGalco00518ET3H184JP-W22-WEG953.571In StockWEG Electric953.57 @ 1
kscdirect.comWEG 00518ET3H184JP-W22988.241In StockWEG ELECTRIC CORP988.24 @ 1
thumbzoomindustrialrefrigerationparts.com00518ET3H184JP-W221001.451In StockWEG1001.45 @ 1
thumbzoomDealers Electric00518ET3H184JP-W221060.011In StockWeg109.01060.01 @ 1
thumbzoomPurvis00518ET3H184JP-W221061.151In StockWEG1061.15 @ 1
