3M MVU14-6FK

mpnMVU14-6FK
brandname: 3-M
manufacturername: 3-M

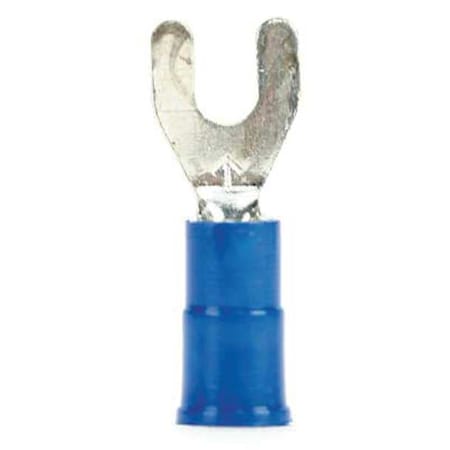

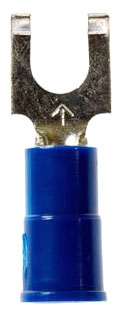

3M SCOTCHLOK FORK, VINYL INSULATED BUTTED SEAM MVU14-6FK, 16-14 AWG, WIDER-TONGUE DESIGN FOR USE ON FREE-STANDING STUDS

Brand: 3M
PartNumber: MVU14-6FK
Model: MVU14-6FK
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: 3M
Label: 3M

Attributes

Key	Value
3M Number	MVU14-6FK
Barrel Length	0.25 in
Barrel Length Type	Butted
Base Product Number	MVU14
Brand	3M
Category	Electrical Insulating T.
Clearance	0.29 in
Color	Blue
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper, ETP
Country of Origin	USA
Country of Origin (subj.	United States
Description	CONN SPADE TERM 14-16AW.
Detailed Description	Blue 6 Stud Spade Termi.
Digi-Key Part Number	920020-01-ND
Fastening Mechanism	Non-Locking
Features	Butted Seam
Fork Width	0.34 in
Inside Diameter	0.09 in
Insulation	Insulated
Insulation Color	Blue
Insulation Diameter	0.170" (4.32mm)
Insulation Length	0.74 in
Insulation Material	Vinyl
Insulation Type	Vinyl
Item	Fork Terminal

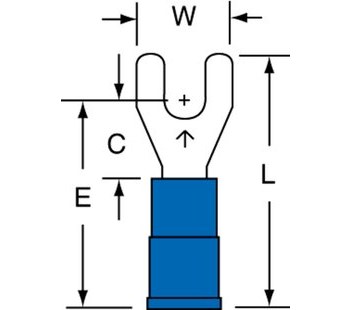

Length - Overall	0.900" (22.86mm)
Length - Ring Center to.	0.290" (7.37mm)
Length - Termination	0.450" (11.43mm)
Manufacturer	3M
Manufacturer Product Nu.	MVU14-6FK
Manufacturer Standard L.	3 Weeks
Material	Vinyl
Material - Insulation	Vinyl
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Insulation Outs.	0.17 in
Maximum Wire Size	14 AWG
Mfr	3M
Minimum Conductor Leg D.	16 AWG
Minimum Wire Size	16 AWG
Mounting Type	Free Hanging (In-Line)
Overall Length	0.9 in
Overall Width	0.34 in
Package	Bulk
Package Quantity	1000 per case
Product Status	Active
Seam	Butted
Series	Scotchlok?
Standards	CSA Certified, UL Listed
Stud Size	#6
Stud/Tab Size	6 Stud
Terminal Connection	Crimp
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening	-
Tongue Width - Wire Con.	0.34 in
Trade Name	Scotchlok
Type	Fork
UNSPSC	31201502
UPC	054007015406
Width - Outer Edges	0.340" (8.64mm)
Wire Gauge	14-16 AWG
Wire Range	16 to 14 AWG

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Hotenda	H1693257	0.26872	1	1000		3M		0.26872 @ 1000
turtle.com	MMM MVU14-6FK	0.34	1	1000		3M		0.34 @ 1000
Digi-Key	31219	0.37763	1	1000		3M		0.37763 @ 1000
Platt.com	0318786	0.42	1	1000		3M		0.42 @ 1000
rshughes.com	054007-01540	280.0	1000	1000		3M		280.0 @ 1000
gordonelectricsupply.com	MVU14-6FK	287.0	1	1000	455	3-M		287.0 @ 1000
Dale-Electric	MVU14-6FK	317.24	1	1000		3M		317.24 @ 1000
Zoro	G5775944	435.02	1	1000	26	3M	2.5	435.02 @ 1000
