- mpnC54502
- brandname: CLEVELAND
- manufacturername: CLEVELAND

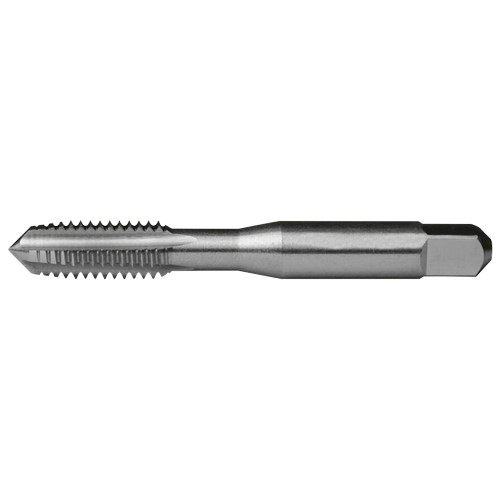

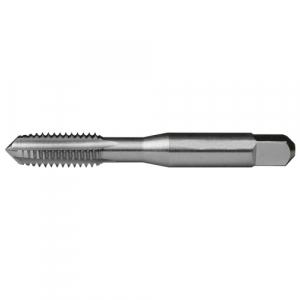

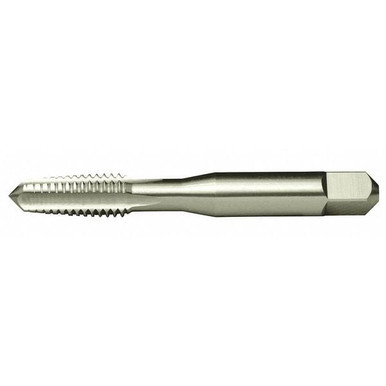

Straight Flute Tap, Plug, 4 Flutes (2 Pieces)
- Brand: Cleveland Golf
- PartNumber: C54502
- PackageQuantity: 1
- Manufacturer: CLEVELAND
- Label: CLEVELAND
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | I |
| 65% Thread Drill Size | 17/64 in |
| 75% Thread Drill Size | F |
| Brand | Cleveland |
| Chamfer Type | Plug |
| Class of Fit | 2B |
| Country of Origin (subj. | United States |
| Current Stock | 42 |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Extended Neck | Yes |
| Finish/Coating | Bright |
| Helix Angle | 0 Degrees |
| International Shipping | No |
| Item | Straight Flute Hand Tap |
| List Number | 1002 |
| Material | HSS |
| Material Application | Cast Iron, Steel, Stain. |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | C54502 |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 2.72 in, 2-23/32" |
| Pitch Diameter Limit | H2 |
| Primary Material Applic. | All Materials |
| Primary Material Applic. | H, K, M, N, O, P, S |
| Secondary Material Appl. | Aluminum, Brass, Bronze. |
| Secondary Material Appl. | K, M, N, P |
| Series | 1002 |
| Shank Dia. | Shank Dia.: 0.318" |
| Shank Diameter | 0.318 in |
| Shank Length | 1 19/32 in |
| Shank Type - Machining | Straight |
| SKU | ZO-G2845573 |
| Spiral Direction | Neutral |
| Square Size | 0.2380 in |
| Standards | USCTI Table 302A |
| Style | 1002 |
| SubCategory | Machining/Threading |
| Surface Condition | Bright |
| Tap Chamfer | Plug |
| Tap Dimension Type | Inch |
| Tap Finish | Bright |
| Tap Length Standard | USCTI |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | 5/16" |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | 5/16"-18 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Thread Form | UNC |
| Thread Length | 1-1/8", 0.69 in |
| Thread Limit | H2 |
| Thread Limit / Class of. | H2 / 2B |
| Thread Pitch | 18 |
| Thread Size | 5/16-18, 5/16"-18 |
| Thread Standard | UNC, Ground/UNC |
| Threads per Inch | 18 |
| Tool Size | 5/16-18 UNC |
| Type | General Purpose Standard |
| UPC | 697334545026 |
