- mpnC70108
- brandname: CLEVELAND
- manufacturername: CLEVELAND

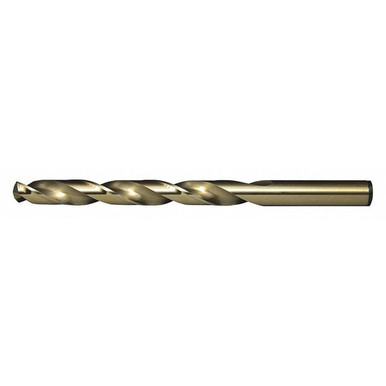

Cleveland 2213 Cobalt Steel Jobbers' Length Drill Bit, Gold Oxide Finish, Round Shank, 135 Degree Split Point, 6.2mm (Pack of 12)
- Brand: CLEVELAND
- PartNumber: C70108
- Model: C70108
- Size: 6.2 mm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Aircraft Drill | Yes |
| Bit Dia. | 6.2mm |
| Brand | Cleveland |
| Catalog Page | N/A |
| Coolant Fed | Non-Coolant Through |
| Country of Origin | USA |
| Current Stock | 15 |
| Cutting Depth | 63 mm |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.2441 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter (in) | 0.2441 |
| Diameter (mm) | 6.20 |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Straw/Bronze |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees, 135 ? |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 6.20 mm |
| Drill Diameter Measurem. | Metric/Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in, . |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0506mm |
| Drill Size - Decimal In. | 0.2441 in |
| Drill Size - Metric | 6.2 mm |
| Drilling Length | 63.00mm |
| Finish | Straw Oxide |
| Finish - Machining | Straw/Bronze |
| Flute Length | 63.00mm, 63 mm, 63.00 mm |
| Flute Type | Right Spiral, Spiral |
| Helix Angle | 21? to 34? |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Item? | 435H79 |
| Length of Flute (in) | 2.4803 |
| Length of Flute (mm) | 63.00 |
| Material | M42 HSS-Co 8%, HSS-CO 8. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 31/32 in, 1 55/64 in |
| Measurement System | Metric |
| Mfr. Model? | C70108 |
| Mpn | C70108 |
| Number of Flutes | 2 |
| Overall Length | 101.00mm, 101 mm, 101.0. |
| Overall Length (in) | 3.9764 |
| Overall Length (mm) | 101.00 |
| Point Angle | 135 deg |
| Point Type | Split |
| Primary Material Applic. | Aluminum; Brass; Bronze. |
| Primary Material Applic. | M; N; P |
| Secondary Material Appl. | Cast Iron; Nickel; Stai. |
| Secondary Material Appl. | K; M; S |
| Series | 2213 |
| Shank Dia. | 6.2 mm |
| Shank Diameter | 6.2 mm |
| Shank Length | 38 mm |
| Shank Size | 6.2mm, 6.2 mm Dia x 38 . |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Size (mm) | 6.20 |
| SKU | ZO-G3065437 |
| Spiral Direction | Right Hand |
| Standards | NAS 907 Type J |
| Style | 2213 |
| SubCategory | Machining |
| Surface Condition | Straw |
| Through Coolant (Yes/No) | No |
| Tool Size | 6.2mm |
| Type | General Purpose Heavy D. |
| UNSPSC | 27112801 |
| UPC | 697334701088 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6112455 | 4.47 | 8 | 12 | | Cleveland | | 4.47 @ 12 |
 | Megadepot | C70108 | 4.71 | 1 | 12 | | Cleveland | | 4.71 @ 12 |
 | usmegastore.com | C70108 | 6.2 | 1 | 12 | | Cleveland | | 6.2 @ 12 |
 | sustainablesupply.com | C2766701 | 6.27 | 1 | 12 | | Cleveland | 0.04 | 6.27 @ 12 |
 | Zoro | G3065437 | 6.43 | 1 | 22 | | Cleveland | 0.04 | 6.43 @ 12 |
 | bscsource.com | C70108 | 7.29 | 1 | 12 | | Cleveland | | 7.29 @ 12 |
| Grainger | 435H79 | 8.31 | 1 | 12 | | CLEVELAND | | 8.31 @ 12 |
 | National Supply Network | 74330754 | 8.6525 | 1 | 12 | | Cleveland | | 8.6525 @ 12 |
 | Guardian | 74330754 | 9.75 | 1 | 12 | | Cleveland | | 9.75 @ 12 |
 | simsupply.com | ZO-G3065437 | 13.62 | 1 | 15 | | Cleveland | | 13.62 @ 12 |
