- mpn328710
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

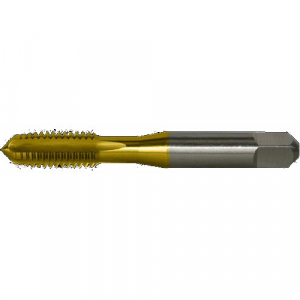

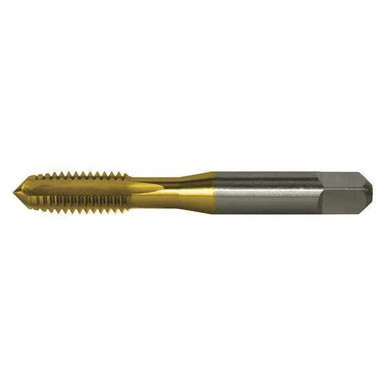

Straight Flute Tap,M16x2.0,HSS
- Brand: Greenfield Threading
- PartNumber: 328710
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Threading
- Label: Greenfield Threading
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 14.50mm, 14.50 mm |
| 65% Thread Drill Size | 9/16 in, 9/16" |
| 75% Thread Drill Size | 14.00mm, 14.00 mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Plug |
| Class of Fit | 2B |
| Color | Grey |
| Country of Origin (subj. | United States |
| Current Stock | 9 |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Diameter | 0.6299" |
| Extended Neck | Yes |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| Helix Angle | 0 Degrees |
| International Shipping | No |
| Item | Plug Tap, Straight Flut. |
| Length of Cut | 2 in |
| List Number | HTGP-TN |
| Material | HSS, High-Speed Steel, . |
| Material Application | Cast Iron, Steel and St. |
| Measurement System | Metric |
| Mpn | 328710 |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 3-13/16 in, 3.8125", 3.. |
| Overall Length (Metric) | 96.84mm |
| Package Quantity | 3 per case |
| Pitch Diameter Limit | D7 |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 12.19mm |
| Shank Diameter | 0.48 in |
| Shank End | Square |
| Shank Length | 2 in, 2" |
| Shank Size | 0.48 in, 0.48" |
| Shank Size (Metric) | 12.19mm |
| Shank Square Length | 0.5625" |
| Shank Square Length (Me. | 14.29mm |
| Shank Square Width | 0.36" |
| Shank Square Width (Met. | 9.14mm |
| Shank Type - Machining | Straight |
| SKU | ZO-G7684120 |
| Spiral Direction | Neutral |
| Square Size | 9.14 mm, 9.14mm |
| Standards | USCTI Table 302A |
| Style | HTGP-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Chamfer | Plug |
| Tap Construction | Plug, Standard |
| Tap Dimension Type | Metric |
| Tap Finish | TiN |
| Tap Grouping | Tap |
| Tap Length Standard | USCTI |
| Tap Limit | D7 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | M16 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M16-2.00 |
| Tap Thread Type | Metric Coarse |
| Thread | M16x2 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 1.8125", 46.04mm, 1.812. |
| Thread Length (Metric) | 46.04mm |
| Thread Limit | D7 |
| Thread Limit / Class of. | D7 / 2B |
| Thread Pitch | 2.0, 2.00mm, 2,00 mm |
| Thread Size | M16x2, M16x2.0, M16 |
| Thread Standard | Metric Coarse, Ground/C. |
| Thread Tolerance | 2B |
| Tool Size | M16x2.0 |
| Type | General Purpose Standard |
| UPC | 093367287108 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7684120 | 37.0 | 1 | In Stock | 26 | Greenfield Threading | 0.15 | 37.0 @ 1 |
 | usmegastore.com | 328710 | 38.5 | 1 | In Stock | | Greenfield Threading | | 38.5 @ 1 |
 | Megadepot | 328710 | 38.5 | 1 | In Stock | | Greenfield Threading | | 38.5 @ 1 |
 | heavydutydepot.com | 328710 | 38.5 | 3 | In Stock | | Greenfield Threading | | 38.5 @ 3 |
 | MRO Supply | 6108297 | 39.28 | 1 | In Stock | | Greenfield Threading | | 39.28 @ 1 |
 | rshughes.com | 933672-87108 | 43.3 | 3 | In Stock | | Greenfield Industries | | 43.3 @ 3 |
 | simsupply.com | ZO-G7684120 | 52.47 | 1 | 9 | | Greenfield Threading | | 52.47 @ 1 |
 | sustainablesupply.com | C2887444 | 58.12 | 1 | In Stock | | Greenfield Tap | 0.18 | 58.12 @ 1 |
| grainger.ca | GNF328710 | 71.00560098 | 1 | In Stock | | GREENFIELD THREADING | 0.15 | 71.00560098 @ 1 |
