Hubbell HBL460MI7WR

B00NGPQ9QK

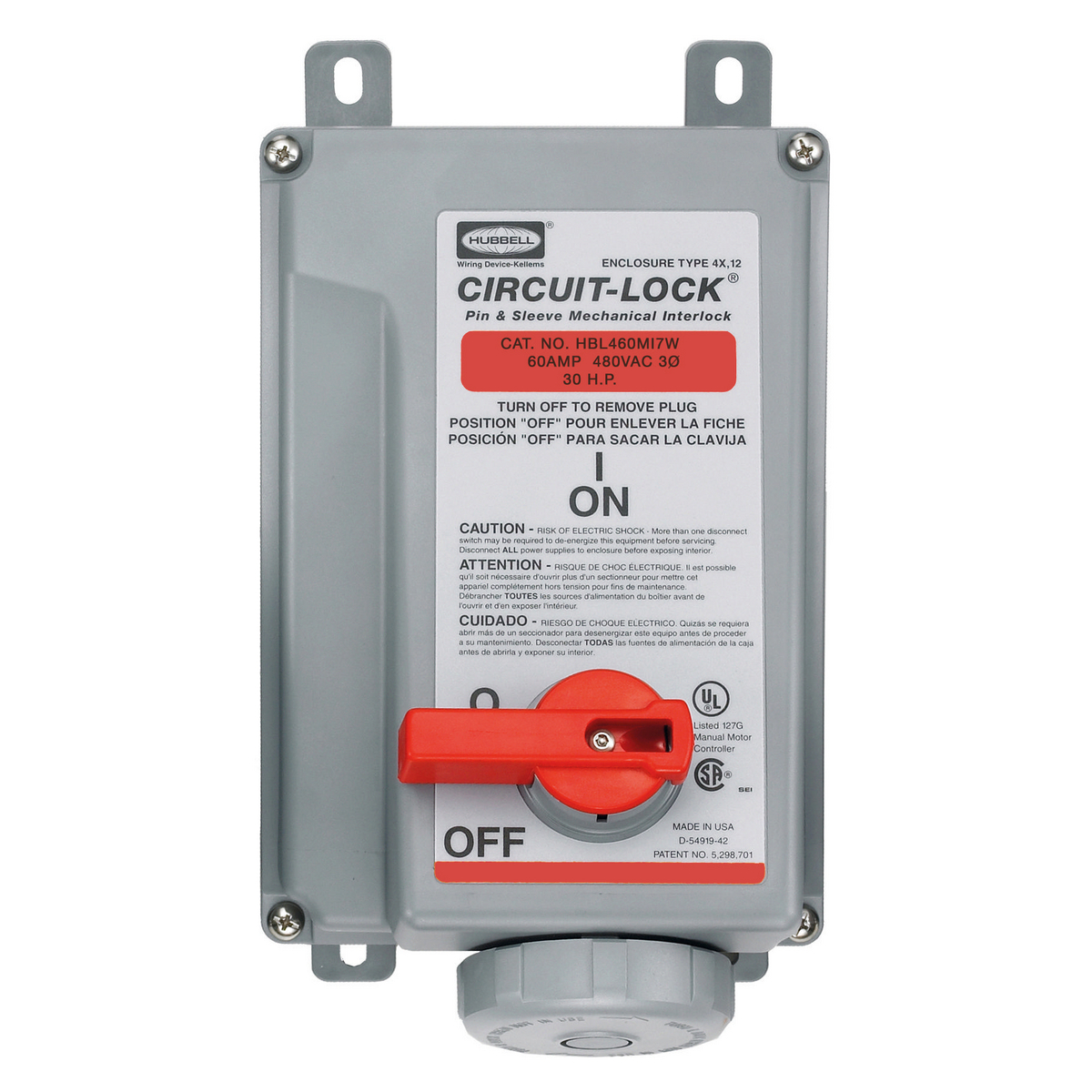

Hubbell HBL460MI7WR Pin and Sleeve IEC Mechanically Interlocked Receptacle, 3 Pole, 4 Wire, 60 amp, 480V, Reversed Service

Hubbell HBL460MI7WR Pin and Sleeve IEC Mechanically Interlocked Receptacle, 3 Pole, 4 Wire, 60 amp, 480V, Reversed Servicezoom

Attributes

Key Value
Additional FeaturesWatertight
Amperage60 A
Amperage Rating60A
ApplicationHigh Ampacity Watertigh.
AWG Range#8 AWG to #2 AWG
ColorRed
Color FamilyRed
ConnectivityPressure Terminal Screws
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.60 A
Current Rating60 A
Current rating60 A
Dimensions8.75 in L x 8.6 in W x .
Display TypeStandard Sized Product
ECCNEAR99
EnclosureNEMA 4X/12/IP67
Environmental conditionsWatertight
Family SeriesHubbell Disconnect Swit.
Gross Weight8 lbs
Industry Standard(s)UL Listed
Item NumberHBL460MI7WR
ManufacturerHubbell
Manufacturer Part NumberHBL460MI7WR
MaterialThermoplastic, Polybuty.
Material - mounting har.Screw Mounting
Max HP 460/480V 3PH30 hp
MountingWall Mount, Threaded
Nema RatingNon-NEMA
Net Weight0 lbs
No. of Poles3
No. of Wires4
Number of poles3-Pole
Number of Poles3
Number of wires4-Wire
Number of Wires4
Operator TypePistol - Red
PhaseThree phase
Poles3
Power Rating28800
Product SeriesHBL
Rated Voltage480V ac
StandardUL Listed
StyleReverse Service
TypeFemale Grounding Indust.
UNSPSC39121406
Voltage3 Phase 480 VAC
Voltage Rating480
Voltage rating descript.3 Phase 480 VAC
Wattage28800
Wire size#8 AWG to #2 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply10229721712.51In StockHubbell Wiring1712.5 @ 1
thumbzoomstandardelectricsupply.com14461851918.571In StockHubbell1918.57 @ 1
thumbzoomZoroG0007013791929.731In Stock25Hubbell Wiring Device-Kellems1929.73 @ 1
thumbzoomGalcoHBL460MI7WR-HBBL2014.711In StockHubbell8.02014.71 @ 1
thumbzoomcbtcompany.comHBL460MI7WR2098.031In StockHubbell Wiring Device-Kellems2098.03 @ 1
us.rs-online.com719931052106.591In StockHubbell Wiring Device-Kellems2106.59 @ 1
steinerelectric.com3985492253.121In StockHubbell Wiring Device-Kellems2253.12 @ 1
thumbzoomNewark14C53922603.01In StockHUBBELL WIRING DEVICES2603.0 @ 1
Graybar994959982623.2641In StockHubbell Wiring Device - Kellems2623.264 @ 1
kirbyrisk.com5003242838.791In StockHubbell2838.79 @ 1
