- mpnLCC1-38D-E
- brandname: Panduit
- manufacturername: Panduit

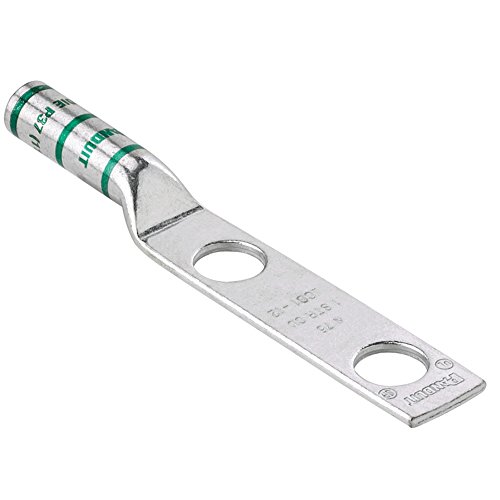

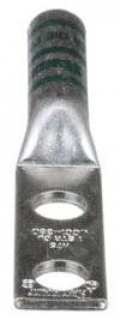

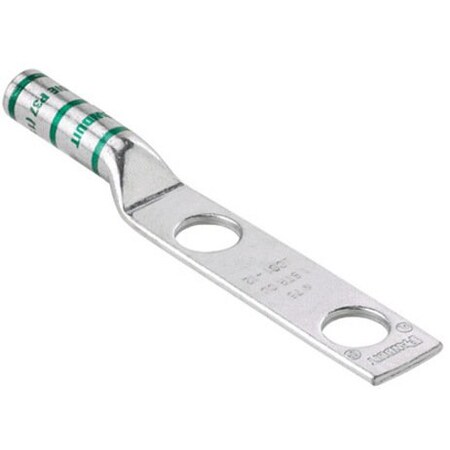

Panduit LCC1-38D-E Code Conductor Copper Compression Lug, 2 Hole, #1 AWG, 3/8-Inch Stud, 1-Inch Hole Spacing
- Brand: Panduit
- PartNumber: LCC1-38D-E
- Model: LCC1-38D-E
- Color: Green
- Size: 3/8-Inch Stud Hole, 1-Inch Hole Spacing
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 1 |
| Approvals | CSA, UL |
| AWG Range | 35 |
| Base Product Number | LCC1 |
| Brand | Panduit, Pan-Lug? |
| Cable Size | 35 AWG, 1 AWG |
| Catalog Number | LCC1-38D-E |
| Category | Connectors, Interconnec. |
| Color | Green |
| Color Code | Green |
| Color Family | Green |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 1 A. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.360" (9.14mm) |
| Diameter - Barrel OD | 0.470" (11.94mm) |
| Diameter - Ring ID | 0.410" (10.41mm) |
| Die Color | Green |
| Digi-Key Part Number | 298-14805-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 1.65 lbs |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCC1-38D-E |
| Item Type | Copper Compression Conn. |
| Length | 3.57" |
| Length - Overall | 3.570" (90.68mm) |
| Lug Wire Size | 1 AWG |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCC1-38D-E |
| Manufacturer Product Nu. | LCC1-38D-E |
| Manufacturer Standard L. | 2 Weeks |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 1 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 1 AWG |
| Mounting | 1.44, 2-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2 |
| Package | Bulk |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug? |
| Size | #1 AWG Code |
| Special Features | Consult cable manufactu. |
| Stud Hole Spacing | 1 in. |
| Stud Size | 3/8 in, 44628 |
| Stud/Tab Size | 3/8 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.110" (2.79mm) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| UNSPSC | 39121405 |
| UPC | 074983382439 |
| Width | 0.7" |
| Width - Outer Edges | 0.700" (17.78mm) |
| Wire Gauge | 1 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCC1-38D-E | 6.75 | 1 | In Stock | | PANDUIT | | 6.75 @ 1 |
 | Zoro | G0424135 | 11.89 | 1 | In Stock | 15 | Panduit | 1.65 | 11.89 @ 1 |
 | Digi-Key | 4565333 | 12.17 | 1 | 14 | | Panduit Corp | | 12.17 @ 1 |
| Onlinecomponents.com | LCC1-38D-E | 12.37 | 1 | In Stock | | Panduit | | 12.37 @ 1 |
 | Newark | 72AC7917 | 12.96 | 1 | In Stock | | PANDUIT | | 12.96 @ 1 |
 | Galco | LCC1-38D-E-PNDT | 15.0 | 20 | In Stock | | Panduit | 1.65 | 15.0 @ 20 |
 | Platt.com | 0689565 | 15.97 | 1 | In Stock | | Panduit | | 15.97 @ 1 |
 | crescentelectric.com | 93497 | 17.08 | 1 | In Stock | | Panduit | | 17.08 @ 1 |
| Airline Hydraulics | PANDUIT LCC1-38D-E | 18.08 | 1 | In Stock | | Panduit Corp | | 18.08 @ 1 |
 | gordonelectricsupply.com | LCC1-38D-E | 316.0 | 1 | In Stock | 12 | PANDUIT | | 316.0 @ 1 |
| Graybar | 97280077 | 1126.3056 | 1 | In Stock | | Panduit | | 1126.3056 @ 1 |
 | turtle.com | PAN LCC1-38D-E | 1768.16 | 1 | In Stock | | Panduit | | 1768.16 @ 1 |
