TE Connectivity 1376135-1

B01J52VWLY

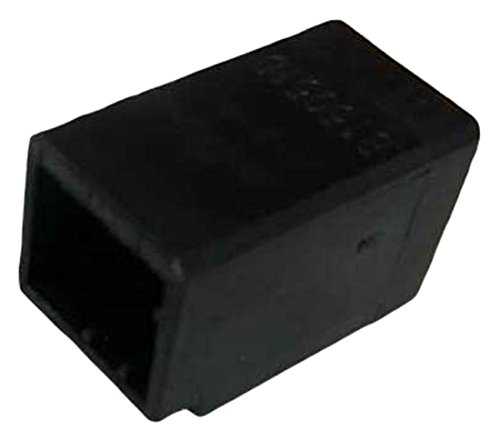

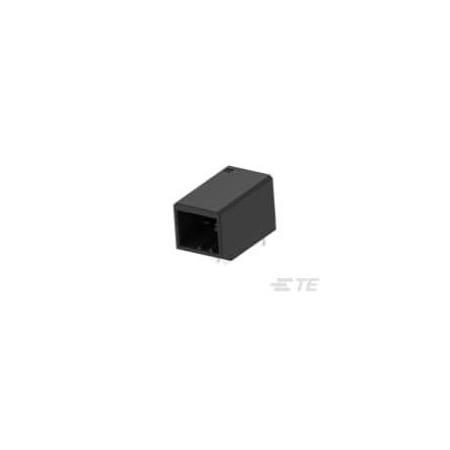

TE CONNECTIVITY 1376135-1 DYNAMIC D2100 HDR H ASSY 3P X - 2484 item(s)

TE CONNECTIVITY 1376135-1 DYNAMIC D2100 HDR H ASSY 3P X - 2484 item(s)zoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number1376135
CategoryConnectors, Interconnec.
ColorBlack
Connector ShapeSquare shape
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post0.131" (3.33mm)
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeTab
Current Rating5 A
Current Rating (Amps)5A
DescriptionCONN HEADER R/A 3POS 2..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA29855-ND
Fastening TypeDetent Lock
FeaturesShrouded, Board Lock
Flammability RatingUL 94 V-0
For Use WithReceptacle Housing
Green Environmental Att.Halogen Free
Height9.45 mm
Hole Center to Center0.098 in
Ingress Protection-
Insertion-extraction du.500
Insulation ColorBlack
Insulation Height0.431" (10.95mm)
Insulation MaterialThermoplastic, Polyeste.
ItemConnector
Length10.2 mm
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1376135-1
Manufacturer Standard L.35 Weeks
Mated Stacking Heights-
MaterialGlass-Filled Polyester
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Contacts3
Number of Positions3
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Overall Contact Length-
PackageBulk
Pitch - Mating0.098" (2.50mm)
Product StatusActive
Rated voltage(V)250
Row Spacing - Mating-
SeriesDynamic D-2100, 2000
ShroudingShrouded - 4 Wall
SpecificationNone
StandardsCSA Certified; UL E2847.
StyleBoard to Board or Cable
Terminal FinishTin Plated
Terminal TypeThrough Hole - Solder
TerminationSolder
Voltage Rating250V
Width0.696 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Future Electronics10551240.8282484144TE Connectivity0.828 @ 2484
Onlinecomponents.com1376135-10.87111292TE Connectivity / AMP Brand0.87 @ 1
thumbzoomMisumi USA1376135-10.881113TE Connectivity0.88 @ 1
Arrow1376135-11.5421175TE Connectivity1.542 @ 1
thumbzoomDigi-Key6645462.1613750TE Connectivity AMP Connectors2.16 @ 1
RS Delivers719-5322P2.41212400TE Connectivity2.412 @ 1
thumbzoomNewark88W16752.5311656AMP - TE CONNECTIVITY2.53 @ 1
thumbzoomZoroG000939154103.51113Te Connectivity103.5 @ 1
