TE Connectivity FSM6JSMA

B083YWQNXF

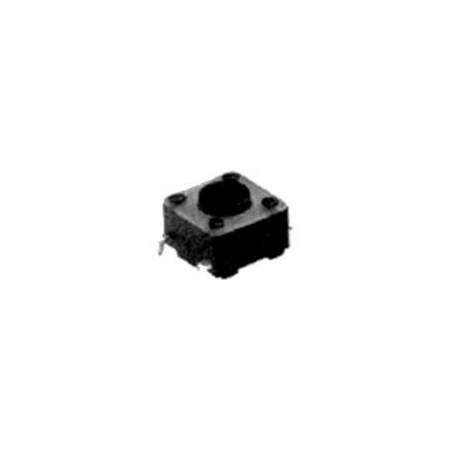

FSM6JSMA, Switch Tactile Off (ON) SPST Round Button Gull Wing 0.05A 12VDC 1.57N SMD Bulk (250 Items)

FSM6JSMA, Switch Tactile Off (ON) SPST Round Button Gull Wing 0.05A 12VDC 1.57N SMD Bulk (250 Items)zoom

Attributes

Key Value
ActuatorRound
Actuator ColorBlack
Actuator Height7 mm
Actuator Height off PCB.7.00mm
Actuator Length3.4 mm [ .134 in ]
Actuator Length, Right .-
Actuator MaterialPolyamide, Polyphenylen.
Actuator Operating AngleTop Actuated
Actuator OrientationTop Actuated
Actuator ProfileExtended
Actuator StyleRound
Actuator TypeStandard
Alternate Mfr Part Numb.4-1437565-9
Alternate Part No.506-FSM6JSMA
Base Product NumberFSM6
BrandTE Connectivity / Alcos.
Bushing StyleUnthreaded
Button Width3.5 mm [ .138 in ]
Case ColorBrown
Case MaterialPolyamide
CategorySwitches
CircuitSPST-NO
Configuration (Pole-Thr.Single Pole - Single Th.
Contact Base MaterialCopper Alloy
Contact Current Rating50
Contact FormSPST, SPST - NO, SPST-NO
Contact Rating0.05 A
Contact Rating @ Voltage0.05A @ 24VDC
Cover MaterialSteel
Current Rating50 mA
DescriptionSWITCH TACTILE SPST-NO .
Detailed DescriptionTactile Switch SPST-NO .
Digi-Key Part Number450-1133-ND
Dust ProofNo
ESD Grounding TerminalWithout
Family NameAlcoswitch Family
Features-
Ground TerminalNo
IlluminatedNo
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
In-stock2000
Ingress Protection-
Leg StyleGull Wing
Low ProfileWith
ManufacturerTE Connectivity, TE Con.
Manufacturer Part No.FSM6JSMA
Manufacturer Product Nu.FSM6JSMA
Manufacturer Standard L.22 Weeks
Mechanical Life100,000 Cycles
MfrTE Connectivity ALCOSWI.
Mounting AngleVertical
Mounting DirectionVertical
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Actuators1
Operating Force160 gf, 1.6 N, 160gf
Operating FunctionNo
Operating Temperature-40?C ~ 85?C
OperationOff (On)
Outline6.00mm x 6.00mm
PackageBulk
Package/CaseCONNECTOR
PackagingBulk
Part # Aliases4-1437565-9
Process SealedNo
Product CategoriesTactile & Jog Switches
Product CategoryTactile Switches
Product StatusActive
Product TypeSwitch
RoHs StatusGreen
SeriesFSMJSMA, FSM Series
Snap ActionWithout
Support BracketWithout
Switch Contact Plating .Silver
Switch FunctionOff-Mom, OFF - (ON)
Switch Height7 mm [ .276 in ]
Switch Travel0.25mm
TactileYes
Temperature Rating (?C)Standard
TerminationSMD
Termination StyleGull Wing, Gull Wing Le.
Termination TypePrinted Circuit Board
TypeTactile
Voltage Rating24 V
Voltage Rating DC24 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet4-1437565-90.13675030000TE Connectivity0.136 @ 750
Future Electronics58544500.138750750TE Connectivity0.138 @ 750
thumbzoomNewark13H33870.16330000613ALCOSWITCH - TE CONNECTIVITY0.163 @ 30000
Onlinecomponents.comFSM6JSMA0.201166072TE Connectivity / Alcoswitch Brand0.201 @ 1
us.rs-online.com701560430.265613TE Connectivity0.26 @ 5
RS Delivers479-1514P0.3516115800TE Connectivity0.3516 @ 1
thumbzoomTME4-1437565-90.385480TE Connectivity0.38 @ 5
thumbzoomswatee.comFSM6JSMA0.41317762TE Connectivity0.413 @ 1
TE Connectivity4-1437565-90.4134132732TE Connectivity (TE)0.4134 @ 1
thumbzoomDigi-Key5258220.421136630TE Connectivity ALCOSWITCH Switches0.42 @ 1
AmazonTPB083YWQNXF112.9816131TE Connectivity112.98 @ 1
thumbzoomZoroG2009676671950.01613Alcoswitch1950.0 @ 1
