- mpnBFV14-8Q
- brandname: 3-M
- manufacturername: 3-M

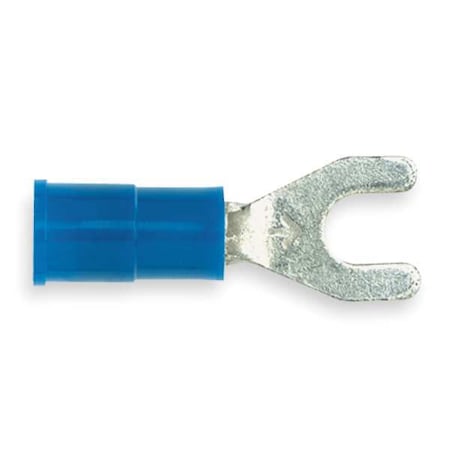

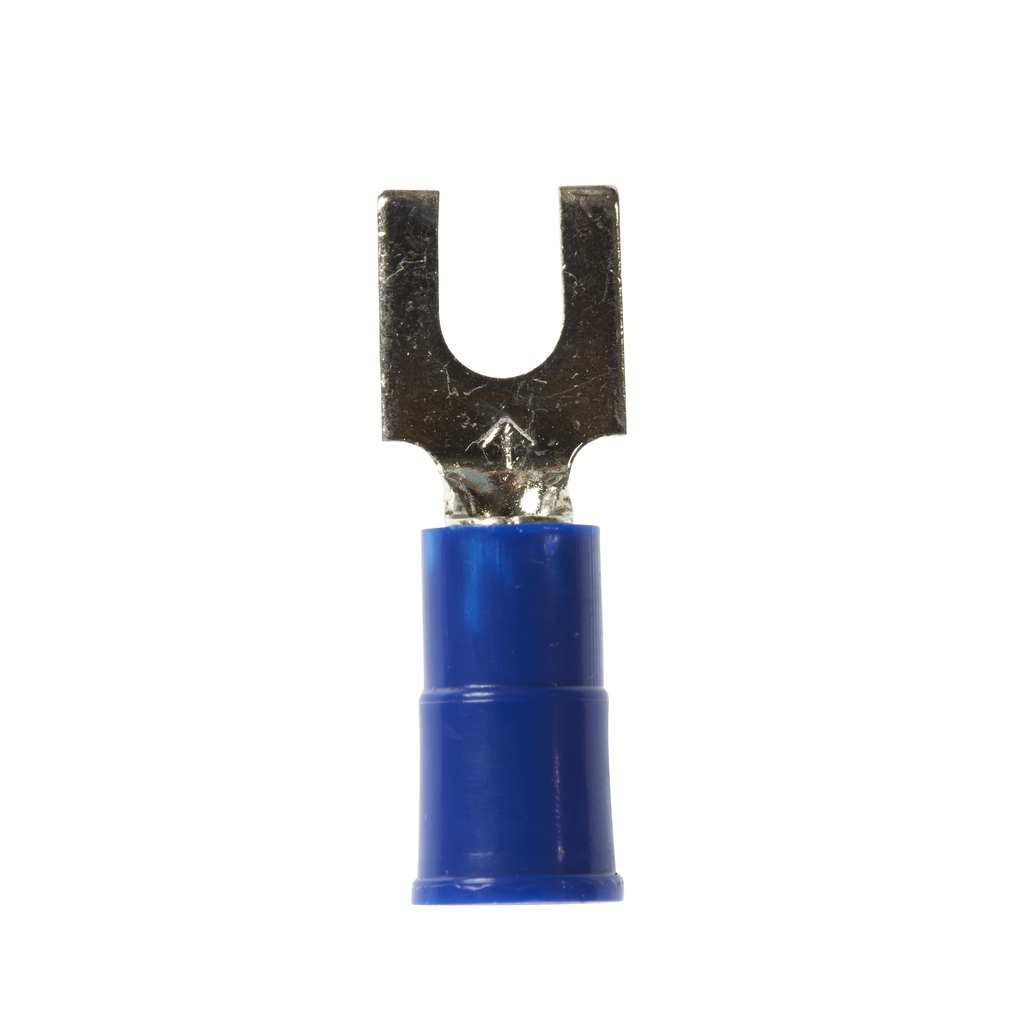

3M Highland Vinyl Insulated Block Fork Terminal BFV14-8Q, AWG 16-14, 25/bag, suitable for use in a terminal block
- Brand: 3M Electrical Markets Division
- PartNumber: BFV14-8Q
- Model: 80611602535
- Color: Blue
- Size: 25 Count (Pack of 1)
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: 3M
- Label: 3M
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 16 - 14 |
| Alternate Mfr Part Numb. | 00051128599921 |
| Angle | Straight |
| Barrel Diameter | 0.17 Inch OD |
| Barrel Length | 0.25 |
| Barrel Type | Butted Seam |
| Base Product Number | BFV14 |
| Brand Name | 3M |
| Category | Electrical Terminals, C. |
| Color | Blue |
| Color Code | No |
| Color Family | Blue |
| Color: | Blue |
| Conductor Size | 16-14 AWG |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connection Width (Imper. | 0.164 in |
| Connection Width (Metri. | 4.166 mm |
| Connection: | Fork |
| Connector Type | Block Fork |
| Contact Finish | Tin |
| Contact Material | ETP Copper, Copper, ETP |
| Contact Plating | Tin |
| Country of Origin | US - United States, USA. |
| Country Of Origin | United States of America |
| Dimensions | 0.85 Inch Length x 0.3 . |
| ECCN | EAR99 |
| Energy Star Flag | No |
| Features | Butted Seam |
| Finish | Tin Plated, Tin, Tin-Pl. |
| GTIN | 00051128599921 |
| Insulation | Insulated |
| Insulation Color | Blue |
| Insulation Colour | Blue |
| Insulation Diameter | 0.17 ", 0.170" (4.32mm) |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Item | Fork Terminal |
| Item Name | Fork Terminal |
| Length - Overall | 0.850" (21.59mm) |
| Length - Ring Center to. | 0.250" (6.35mm) |
| Length - Termination | 0.450" (11.43mm) |
| Made In America | Yes |
| Manufacturer | 3M |
| Manufacturer Name | 3M |
| Manufacturer Part Number | BFV14-8Q |
| Material | Copper, ETP Copper (Ter. |
| Material - Insulation | Vinyl |
| Material Thickness | 0.03 in. |
| Material: | PVC |
| Max. Temp. | 221 Degrees F |
| Max. Voltage | 600 V |
| Maximum Conductor Size . | 14 AWG |
| Maximum Conductor Size . | 2.08 mm? |
| Maximum Operating Tempe. | 105.0 Degree |
| Maximum Voltage | 600 V |
| Mfr | 3M |
| Minimum Conductor Size . | 16 AWG |
| Minimum Conductor Size . | 1.31 mm? |
| Mounting Type | Free Hanging (In-Line) |
| Number Of Terminals: | 25 per bag |
| Overall Length | 0.85 ", 0.85 in |
| Overall Length (Imperia. | 0.85 in |
| Overall Length (Metric) | 21.59 mm |
| Overall Width | 0.3 " |
| Overall Width (Imperial) | 0.3 in |
| Overall Width (Metric) | 7.62 mm |
| Package | Bulk |
| Package Quantity | 25 |
| Packaging | 25 per Package |
| Product Status | Active |
| RoHS Flag | Yes |
| Seam | Butted |
| Series | Scotchlok Series, Highl. |
| Shape | Butted Seam |
| Special Features | Butted Seam, Barrel, Bl. |
| Standard: | UL and CSA |
| Standards | UL Listed, CSA Certifie. |
| Stud Size | #8, M4 (#8) |
| Stud/Tab Size | 8 Stud |
| Sub Brand | Highland? |
| Sub Brand: | Highland |
| Tang Size | 0.3 Inch Width |
| Tang Type | No |
| Temperature Rating | -40 to 105 deg C |
| Terminal Connection | Crimp |
| Terminal Size: | 8 |
| Terminal Style | Block |
| Terminal Type | Fork, Block, Standard |
| Termination | Crimp |
| Tongue Inside Opening | - |
| Tongue Width | 0.3 in |
| Tongue Width - Wire Con. | 0.3 in |
| Type | Fork, Fork Terminal, In. |
| Type: | Butted |
| UNSPSC | 39121432 |
| UPC | 05112859992, 0511285999. |
| UPC Code | 51128599921 |
| Voltage Rating | 600 ; 1000 V, 600 Volt |
| Width - Outer Edges | 0.300" (7.62mm) |
| Wire Gauge | 14-16 AWG |
| Wire Range | 16 to 14 AWG |
| Wire Size | 14-16 AWG |
| Wire Size: | 16-14AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Digi-Key | 5128475 | 0.5932 | 1 | 50 | | 3M | | 0.5932 @ 25 |
| Monarch Electric | 283114 | 5.268 | 1 | 25 | | 3M | | 5.268 @ 25 |
| MCM Electronics | 108-4808 | 6.03 | 1 | 25 | | 3M | | 6.03 @ 25 |
| Graybar | 25438178 | 6.664 | 1 | 25 | | 3M | | 6.664 @ 25 |
 | galesburgelectric.com | BFV14-8Q | 7.26 | 1 | 25 | | 3M | | 7.26 @ 25 |
 | Zoro | G5186921 | 7.59 | 1 | 48 | | 3M | 0.4 | 7.59 @ 25 |
 | turtle.com | MMM BFV14-8Q | 8.65 | 1 | 25 | | 3M | | 8.65 @ 25 |
 | mayerelectric.com | MMMBFV148Q | 9.68 | 1 | 25 | | 3M | | 9.68 @ 25 |
 | Platt.com | 0911506 | 10.64 | 1 | 382 | | 3M | | 10.64 @ 25 |
| us.rs-online.com | 70233862 | 11.02 | 1 | 25 | | 3M | | 11.02 @ 25 |
| grainger.ca | MMMBFV14-8Q | 11.67096048 | 1 | 25 | | 3M | 0.4 | 11.67096048 @ 25 |
 | electricalparts.com | BFV14-8Q | 11.9168 | 1 | 71 | | 3M | | 11.9168 @ 25 |
 | Newark | 94T2796 | 12.57 | 10 | 25 | | 3M | | 12.57 @ 25 |
 | Raptor Supplies | AF7QPV | 19.4307165 | 1 | 25 | | 3M | | 19.4307165 @ 25 |
 | gordonelectricsupply.com | BFV14-8Q | 73.9 | 1 | 25 | 455 | 3-M | | 73.9 @ 25 |
| Dale-Electric | BFV14-8Q | 80.62 | 1 | 25 | | 3M | | 80.62 @ 25 |
