- mpnM18-6R/SK
- brandname: 3-M
- manufacturername: 3-M
3M Scotchlok Red Brazed Non-Insulated Brazed Ring Terminal - 0.6 in Length - 0.25 in Wide - 0.07 in Inside Diameter - #6 Stud - M18-6R/SK [PRICE is per CASE]
![3M Scotchlok Red Brazed Non-Insulated Brazed Ring Terminal - 0.6 in Length - 0.25 in Wide - 0.07 in Inside Diameter - #6 Stud - M18-6R/SK [PRICE is per CASE]](https://m.media-amazon.com/images/I/31fWmPp+tSL._SL75_.jpg)
- Brand: 3M
- PartNumber: M18-6R/SK
- Model: M18 6R SK
- Color: Red
- PackageQuantity: 1
- Manufacturer: 3M ELECTRICAL MARKET ELECTRICAL PRODUCTS
- Label: 3M ELECTRICAL MARKET ELECTRICAL PRODUCTS

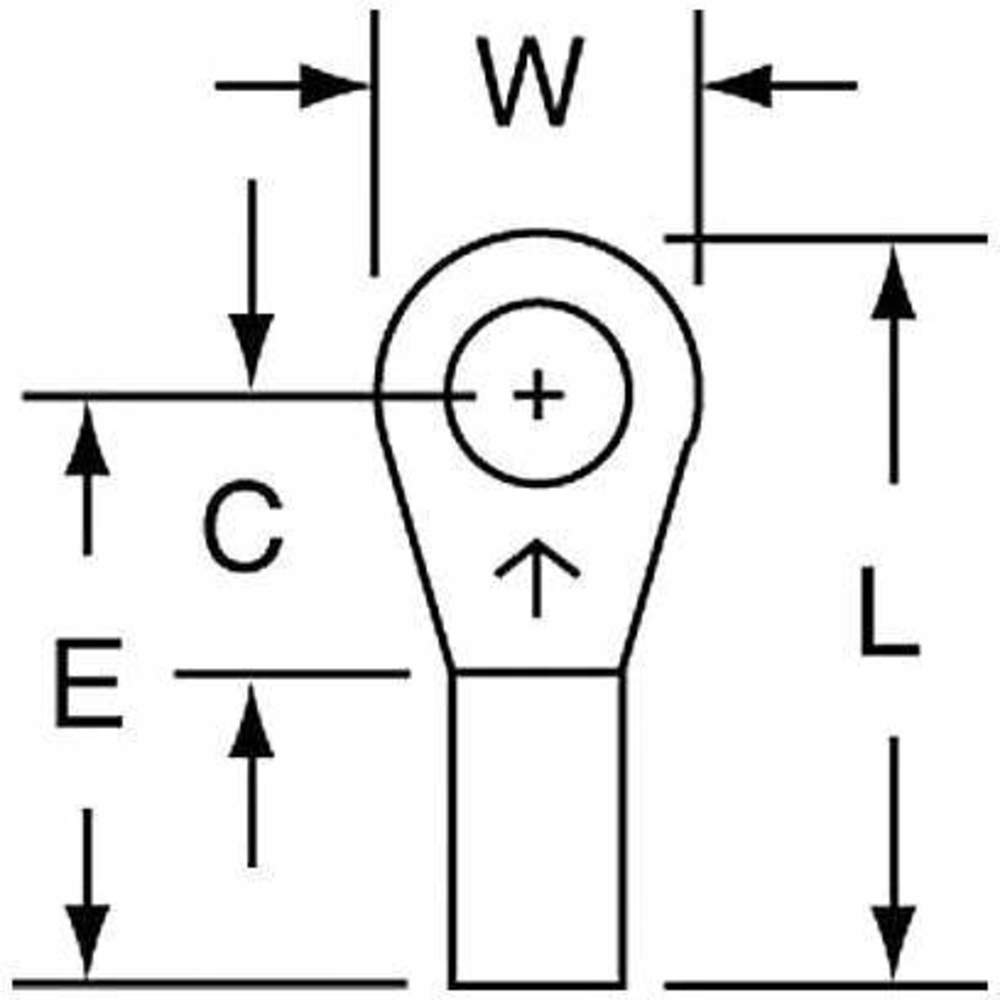

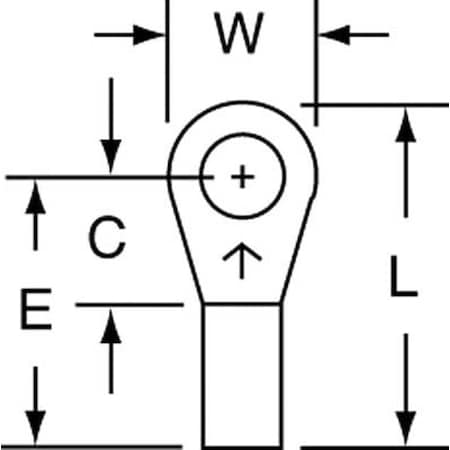

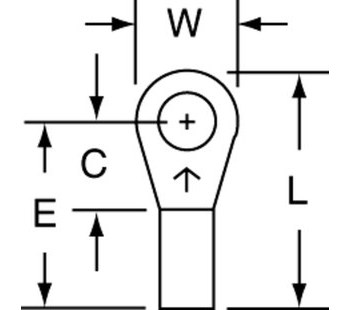

Attributes
| Key | Value |
|---|
| 3M Number | M18-6R/SK |
| Barrel Inside Diameter | 0.07 in |
| Barrel Length | 0.25 in |
| Barrel Style | Brazed |
| Base Product Number | M18 |
| Brand | 3M |
| Category | Electrical Insulating T. |
| Clearance | 0.22 in |
| Color | -, Silver, Red |
| Compatible with Product. | Building Wire, Fixtures. |
| Connection Material | Copper |
| Connection Type | Crimp |
| Contact Finish | Tin, - |
| Contact Material | Copper, - |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Current Stock | 6 |
| Features | Brazed Seam |
| For Wire Size | 18 AWG, 20 AWG, 22 AWG |
| For Wire Sizes | 22 AWG to 18 AWG |
| Hole Spacing | 0.22 in |
| Inside Diameter | 0.07 in |
| Insulation | Non-Insulated |
| Insulation Color | Bare |
| Insulation Coverage | None |
| Insulation Diameter | - |
| Insulation Material | Non-Insulated, None |
| Insulation Type | Non-Insulated |
| International Shipping | No |
| Item | Ring Terminal |
| Length - Overall | 0.600" (15.24mm) |
| Manufacturer | 3M |
| Material - Insulation | - |
| Max. Temp. | 347 Degrees F |
| Max. Voltage | 600 V |
| Maximum Operating Tempe. | 347 Degrees F |
| Maximum Voltage | 1,000 V |
| Maximum Wire Size | 18 AWG |
| Mfr | 3M |
| Minimum Conductor Leg D. | 22 AWG |
| Minimum Operating Tempe. | 347 Degrees F |
| Minimum Wire Size | 22 AWG |
| Mounting Type | Free Hanging (In-Line) |
| Mpn | M18-6R/SK |
| Overall Length | 0.6 in |
| Overall Width | 0.25 in |
| Package | Bulk |
| Package Quantity | 1000 per case |
| Part Status | Active |
| Ring Width | 0.25 in |
| Ring Width Ranges | 0.00 - 0.25 inches |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Series | Scotchlok? |
| Size | 6 |
| SKU | ZO-G5621664 |
| Special Features | Beveled Mouth, Corrosio. |
| Standards | CSA Certified, UL Listed |
| Stud Size | #6 |
| Stud/Tab Size | 6 Stud |
| SubCategory | Electrical |
| Terminal Connection | Crimp |
| Terminal Shape | Standard Ring Tongue |
| Terminal Type | Standard, Circular |
| Termination | Crimp |
| Termination Style | Crimp |
| Thickness | 0.030" (0.76mm) |
| Tongue Length | 0.35 in |
| Tongue Thickness | 0.03 in |
| Tongue Width | 0.25 in |
| Tongue Width - Wire Con. | 0.25 in |
| Trade Name | Scotchlok |
| Type | Ring, Non-Insulated |
| UNSPSC | 31201502 |
| UPC | 054007010166, 005400701. |
| Width - Outer Edges | 0.250" (6.35mm) |
| Wire Gauge | 18-22 AWG |
| Wire Range | 22 to 18 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Digi-Key | 3865478 | 0.21998 | 1000 | 1000 | | 3M | | 0.21998 @ 1000 |
 | turtle.com | MMM M18-6R/SK | 0.24 | 1 | 1000 | | 3M | | 0.24 @ 1000 |
 | Platt.com | 0385083 | 0.3 | 1 | 1000 | | 3M | | 0.3 @ 1000 |
 | Radwell | M186RSK | 0.3 | 1000 | 1000 | | 3M | | 0.3 @ 1000 |
 | Zoro | G5621664 | 147.79 | 1 | 1000 | | 3M | 1.4 | 147.79 @ 1000 |
 | rshughes.com | 054007-01016 | 200.0 | 1000 | 1000 | | 3M | | 200.0 @ 1000 |
 | gordonelectricsupply.com | M18-6R/SK | 207.0 | 1 | 1000 | 455 | 3-M | | 207.0 @ 1000 |
| Dale-Electric | M18-6R/SK | 227.92 | 1 | 1000 | | 3M | | 227.92 @ 1000 |
 | simsupply.com | ZO-G5621664 | 249.48 | 1 | 1000 | | 3M | | 249.48 @ 1000 |
 | Raptor Supplies | AC2FCZ | 295.829586 | 1 | 1000 | | 3M | | 295.829586 @ 1000 |
