- mpnL1321TM
- brandname: Baldor
- manufacturername: Baldor

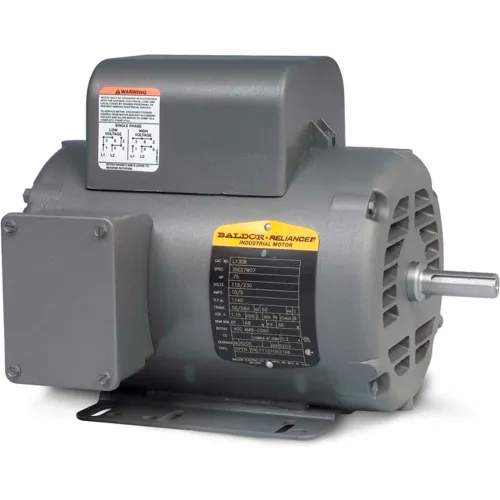

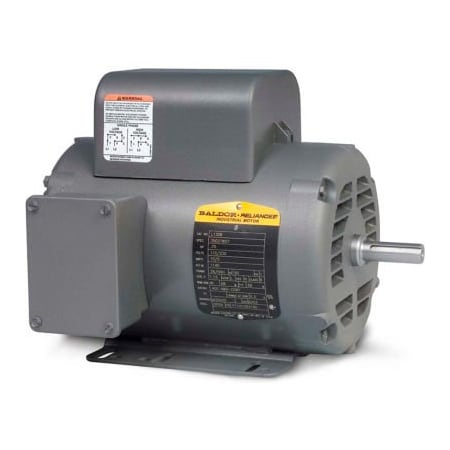

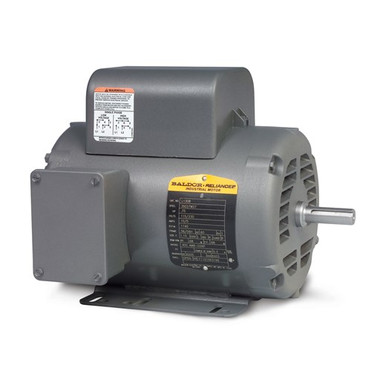

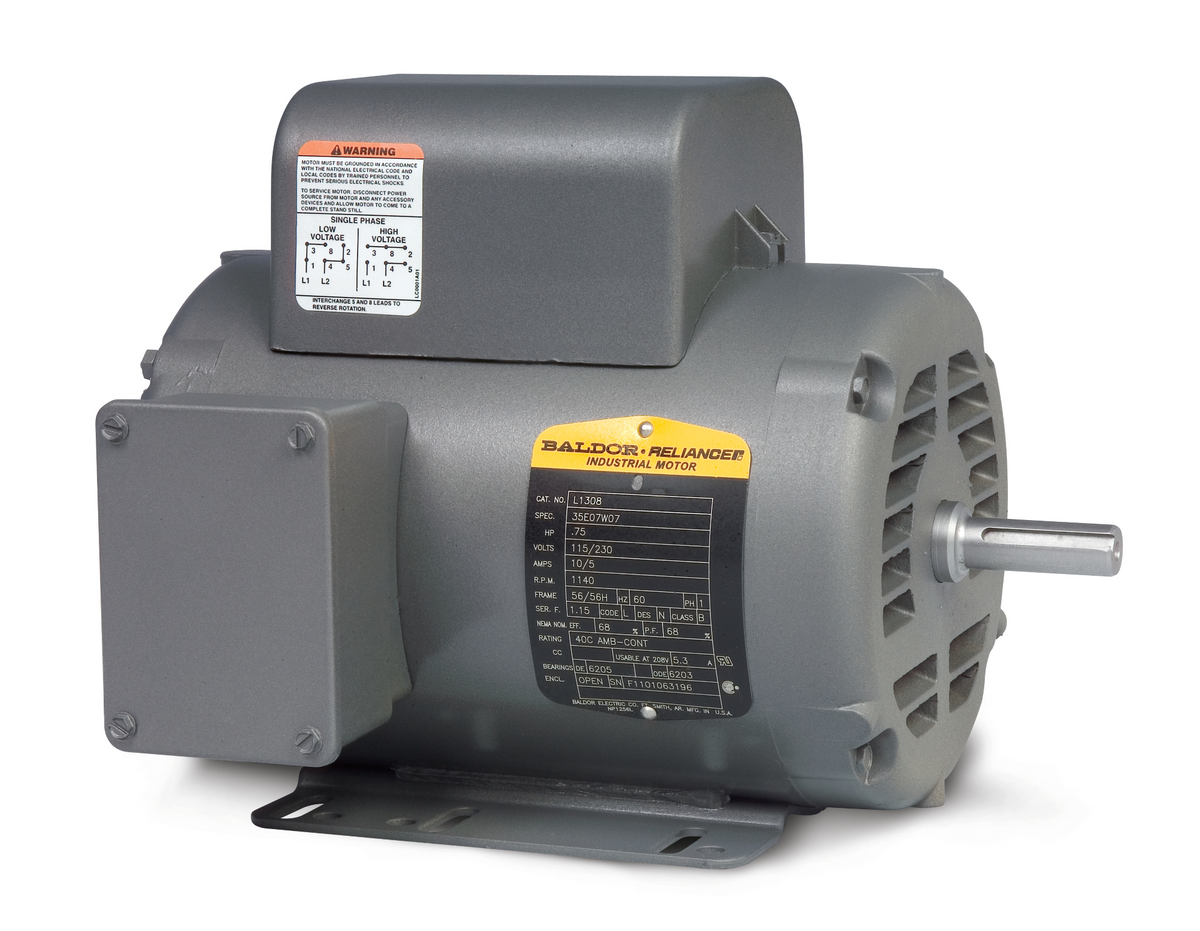

Baldor L1321TM General Purpose AC Motor, Single Phase, 145T Frame, Open Enclosure, 1-1/2Hp Output, 1725rpm, 60Hz, 115/208-230V Voltage
- Brand: Baldor
- PartNumber: L1321TM
- Model: L1321TM
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Baldor
- Label: Baldor
Attributes
| Key | Value |
|---|
| Amps | 10.5/21/9.6 |
| Application | General Purpose |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 70.0% |
| Efficiency % | 70 % |
| Enclosure | OPEN, Drip Proof |
| Enclosure Material | Steel |
| Enclosure Type | OPEN |
| Estimated Weight | 48.00 |
| Family Name | Single Phase Open Family |
| Family Series | Baldor Motors, L Series |
| FL Amps | 21/9.6-10.5 |
| FL Efficiency | 70 |
| Frame | 145T |
| Frame Type | 145T |
| Gross Weight | 48 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| Horsepower Rating | 1.5 HP |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | No |
| Item Number | L1321TM |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35DD001W335 |
| Manufacturer Part Number | L1321TM |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Footed, Foot Mount, Rig. |
| NEMA Frame | 145T |
| Net Weight | 50 lbs |
| Nominal Voltage | 120 VAC, 208 VAC, 240 V. |
| Number of Speeds | 1 |
| Overall Length | 13", 13 " |
| Overload Protection | Manual |
| Package Quantity | 1 |
| Part Number | L1321TM |
| Phase | 1, 1 Phase |
| Product Series | L |
| Product Type | General Purpose |
| Rotation | Reversible |
| RPM | 1725 RPM, 1,800 RPM, 17. |
| Series | GO1 Series |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875" |
| Ship Weight | 48 lbs. |
| Special Features | Manual Thermal Overload |
| Speed (RPM) | 1725 |
| Supply Voltage | 115/208-230 VAC |
| Thermal Protection | Manual |
| UPC Code | 781568101445 |
| Voltage | 110-120V, 208V, 230V, 1. |
| Voltage (AC) | 115 VAC, 208-230 VAC |
| Volts | 115/208-230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 25633 | 710.74 | 1 | In Stock | | Baldor | | 710.74 @ 1 |
 | emotorpro.com | L1321TM | 799.35 | 1 | In Stock | | Baldor | 48.0 | 799.35 @ 1 |
| factorysupplyoutlet.com | RK96WO | 882.27 | 1 | In Stock | | Baldor-Reliance | | 882.27 @ 1 |
 | galesburgelectric.com | L1321TM | 884.48 | 1 | In Stock | | Baldor | | 884.48 @ 1 |
 | Galco | L1321TM-BLDR | 884.48 | 1 | In Stock | | Baldor | 50.0 | 884.48 @ 1 |
 | Walker Industrial | L1321TM | 884.48 | 1 | In Stock | | Baldor | | 884.48 @ 1 |
 | Global Industrial | WBB389123 | 889.0 | 1 | In Stock | | Baldor-Reliance | | 889.0 @ 1 |
| motorsandcontrol.com | L1321TM | 921.33 | 1 | In Stock | | Baldor Reliance | 48.0 | 921.33 @ 1 |
 | pumpproducts.com | L1321TM | 1030.33 | 1 | In Stock | | Baldor | | 1030.33 @ 1 |
| cbtcompany.com | L1321TM | 1048.11 | 1 | In Stock | | Baldor Reliance | | 1048.11 @ 1 |
| us.rs-online.com | 71934357 | 1087.18 | 1 | In Stock | | Baldor-Reliance | | 1087.18 @ 1 |
| kirbyrisk.com | 2419817 | 1159.73 | 1 | In Stock | | Baldor | | 1159.73 @ 1 |
| motionindustries.com | 00535556 | 1377.01 | 1 | In Stock | | Baldor-Reliance | | 1377.01 @ 1 |
 | Zoro | G904936099 | 1647.99 | 1 | In Stock | | Baldor-Reliance | | 1647.99 @ 1 |
 | Raptor Supplies | AJ6WXB | 2590.486587 | 1 | In Stock | | BALDOR MOTOR | | 2590.486587 @ 1 |
