Century V1204B

B000LDO0K2

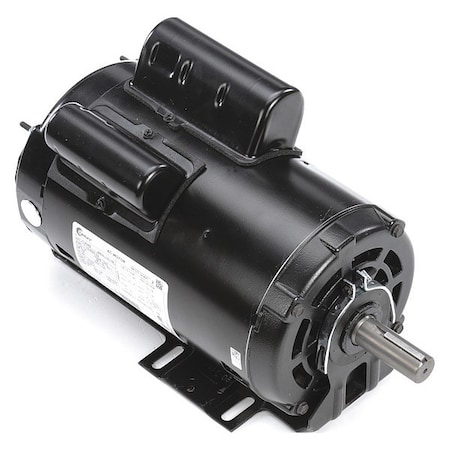

Evaporative Cooler Motor, 115/230V, Ball

Evaporative Cooler Motor, 115/230V, Ballzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
Body Dia.6 1/2 in
BrandCentury
Conduit Box LocationExterior
Conduit Box PositionF3
Country of Origin (subj.Mexico
Current Stock11
Frame56Z
Full Load Amps17.0/8.5
HP2
Hz60
Ins. ClassB
International ShippingNo
ItemEvaporative Cooler Motor
Length Less Shaft11 1/2 in
Max. Ambient Temp.40 Degrees C
Motor ApplicationHVAC/R
Motor BearingsBall
Motor DesignCapacitor-Start/Run
Motor Enclosure DesignOpen Dripproof
Motor Mounting PositionAll Angle
Motor Mounting TypeCradle Base
Motor Service Factor1.15
Motor Shaft RotationCW/CCW
Motor Sub ApplicationEvaporator Cooler
Motor Thermal ProtectionAuto
Mpn56B17DRS40004A2A
Nameplate RPM1,725
No. of Speeds1
Overall Length13 7/8 in
PhaseSingle
Resilient Ring Dia.2 1/2 in
Ring Dia.2 1/2 in
Ring to Ring Center11 1/16 in
RPM Range1,701-1,800
Shaft Dia.7/8 in
Shaft Length2 1/4 in
SKUZO-G2340441
StandardsCSA Certified, UL Recog.
SubCategoryMotors/Ac Motors
Usable @ 200VNo
Usable @ 208VNo
Voltage115/230V AC
Voltage Compatibility115/200-230V AC, 115/20.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2340441458.211In StockCentury44.25458.21 @ 1
thumbzoomsimsupply.comZO-G2340441591.021In StockCentury591.02 @ 1
