- mpn41012
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

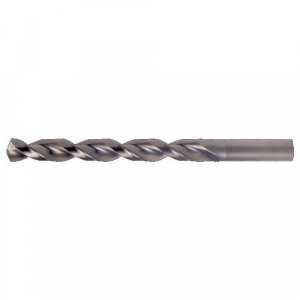

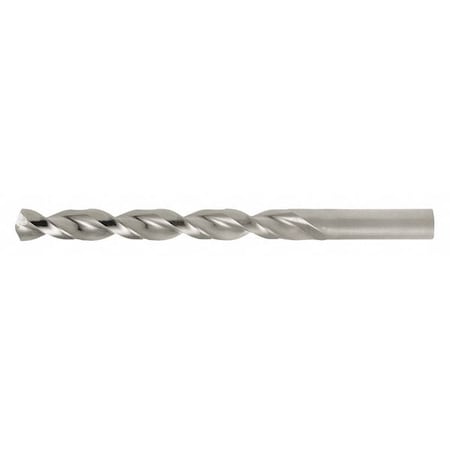

Greenfield 41012 150 WLP 3/16 (41012) (12/Each)
- Brand: Chicago Latrobe
- PartNumber: 41012
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand Name | Chicago-Latrobe |
| Cutting Depth | 2-5/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1875 |
| Depth x Dia. Ratio | 8xD |
| Depth:Dia. Ratio | 8xD |
| Diameter | 0.1875", 0.1875 |
| Diameter (Fraction) | 3/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 3/16 in |
| Drill Construction | Wide Land Parabolic |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0388 in |
| Drill Size - Decimal In. | 0.1875 in |
| Drill Size - Fraction | 3/16 in |
| Drill Size System | Fractional |
| Drill Style | Jobber Drill |
| Finish | Bright |
| Flute Length | 2 5/16 in, 2-5/16 in, 2. |
| Flute Length (Metric) | 58.74mm |
| Flute Type | Spiral, Right Spiral/Wi. |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Item # | 41012 |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 47/64 in |
| Number of Flutes | 2 |
| Overall Lehgth (Metric) | 88.90mm |
| Overall Lenght | 3.5000" |
| Overall Length | 3 1/2 in, 3-1/2 in |
| Point Angle | 135??, 135 deg, 135 |
| Point Style | Split |
| Point Type | Split |
| Series | 150WLP |
| Set | No |
| Shank Configuration | Straight |
| Shank Dia. | 3/16 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 3/16 in Dia x 1-3/16 in. |
| Shank Size (Metric) | 4.76mm |
| Shank Type | Straight |
| Style | 150WLP |
| Style # | 150WLP |
| Surface Condition | Bright |
| Through Coolant (Yes/No) | No |
| Tool Size | 3/16" |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6127469 | 3.6 | 10 | 12 | | Chicago-Latrobe | | 3.6 @ 12 |
 | Megadepot | 41012 | 3.69 | 1 | 12 | | Chicago-Latrobe | | 3.69 @ 12 |
 | heavydutydepot.com | 41012 | 3.69 | 28 | 12 | | Chicago-Latrobe | | 3.69 @ 28 |
 | Zoro | G2818991 | 4.05 | 1 | 22 | | Chicago-Latrobe | 0.02 | 4.05 @ 12 |
 | usmegastore.com | 41012 | 4.65 | 1 | 12 | | Chicago-Latrobe | | 4.65 @ 12 |
 | National Supply Network | 89311112 | 7.6125 | 12 | 12 | | Chicago-Latrobe | | 7.6125 @ 12 |
 | Guardian | 89311112 | 8.36 | 1 | 12 | | Chicago-Latrobe | | 8.36 @ 12 |
