Dwyer 475-2-FM

B08K3M7W5N

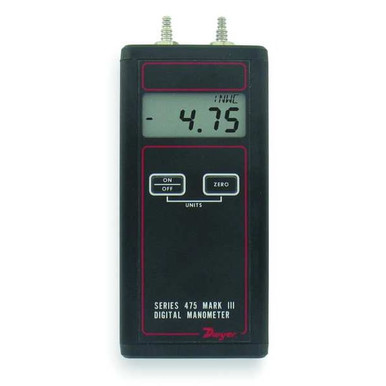

Dwyer 475-2-FM Digital Manometer (0 to 40.00"w.c.)

Dwyer 475-2-FM Digital Manometer (0 to 40.00"w.c.)zoom

Attributes

Key Value
Accuracy+/-0.5%, +/- 0.5% FS, 6.
Agency ApprovalsCE, FM
Auto Power OffYes
Batteries RequiredYes
Battery Type9 V, 9V
Best Sellers RankSee Top 100 in Industri.
BrandDwyer Instruments
Compensated Temperature.32 to 104 F, 32 to 104?.
Connection Size1/8 in, 3/16 in
Connection TypeFits 1/8 or 3/16 in ID .
ConnectionsTwo barbed connections .
Current Stock97
Date First AvailableMay 26, 2012
DigitalYes
Digital Display Features4 Digit LED
Display0.42" (10.6 mm) 4-digit.
Family SeriesDwyer Instruments Senso.
For Tubing Diameter1/8 in, 3/16 in
For Use WithAir and compatible comb.
Gross Weight0 lbs
GTIN094704462479
Housing Height5.875 in
Housing Length2.812 in
Housing MaterialAluminum
IncludesBattery and Instructions
Includes BatteriesYes
International ShippingNo
Intrinsically SafeYes
Is Discontinued By Manu.No
ItemHandheld Digital Manome.
Item model number475-2-FM
Item Number475-2-FM
Lead TimeExpected to ship in 1-2.
Low Battery IndicatorYes
ManufacturerDwyer Instruments, Dwye.
Manufacturer Part Number475-2-FM
Manufacturers Warranty .1 yr., 1 yr
Max. Pressure10 psi (0.6895 bar)
Maximum Operating Press.10 psi
Maximum Operating Tempe.140 Degrees F
Maximum Pressure40 in wc, 10 psig
Minimum Operating Tempe.0 Degrees F
Minimum Pressure0 in wc
Mpn475-2-FM
National Stock Number6685-01-593-4233
Net Weight0 lbs
NIST Traceable Certific.No
Number of Connections2
Number of Pressures Mea.Dual, Single
Operating Pressure Range0 to 40 in wc
Operating Range0 to 10 kPa
Operating Temp. Range0 Degrees to 140 Degre.
Overall Height6.5 in
Overall Length0.906 in
Overall Width2.812 in
Power Requirements9 V alkaline battery, i.
Pressure Accuracy+/-0.5%
Pressure Hysteresis+/- 0.1% FS, ?0.1% of f.
Pressure Range0 to 40 in wc, 0-40 " WC
Pressure Resolution0.01 in wc
Pressure Unitsin wc
Process Connection Size1/8 in, 3/16 in
Process Connection TypeHose Barb
Product Dimensions10 x 5 x 1.2 inches; 10.
Product with faster shi.true
Range0 - 40.00 Inches of Wat.
Resolution0.01 in wc
Safety RatingClass I Div. 2 Group A,.
Series475
ServiceAir and compatible comb.
Shippingundefined (Fixed Shippi.
SKUZO-G1174862
StandardsClass I, Div 1, Group A.
Standards and ApprovalsIntrinsically Safe, Cla.
Storage Temperature Lim.-4 to 176 F, -4 to 176?.
Storage Temperature Ran.-4 Degrees to 176 Degr.
SubCategoryTest Instruments
Temperature Limits0 to 140 F, 0 to 140?F .
Type of PressureDifferential, Negative,.
UPC0094704462479
Weight10.8 oz, 10.8 oz. (306 .
Wetted MaterialsContact Customer Servic.
Zero ButtonYes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB008FM8BZ6148.91In Stock2Dwyer Instruments148.9 @ 1
thumbzoomAmazonSCB008FM8BZ6148.91In StockDwyer148.9 @ 1
thumbzoomNational Supply Network497941227.711In StockDwyer227.71 @ 1
thumbzoomNewark82AK9419234.014DWYER234.0 @ 1
us.rs-online.com70328533252.8912Dwyer Instruments252.89 @ 1
Grainger1XFW3255.251900DWYER INSTRUMENTS255.25 @ 1
thumbzoomSolutions Direct475-2-FM256.371In StockDwyer Instruments256.37 @ 1
thumbzoomvaluetesters.comQVT-2016041532271570546256.471In StockDwyer Instruments256.47 @ 1
thumbzoomcappusa.com882698258.41In StockDwyer258.4 @ 1
thumbzoomGalco475-2-FM-DWYR264.711In StockDwyer Instruments264.71 @ 1
thumbzoomindustrialzone.com475-2-FM269.01In StockDwyer1.0269.0 @ 1
thumbzoomusmegastore.com475-2-FM272.11In StockDwyer0.675272.1 @ 1
thumbzoomMegadepot475-2-FM272.11In StockDwyer0.675272.1 @ 1
alliedcontrols.com475-2-FM272.51In StockDwyer272.5 @ 1
hvacdiscountstore.comDWY--475-2-FM279.7919DWYER INSTRUMENTS279.79 @ 1
thumbzoomVoomi Supply475-2-FM279.991In StockDwyer Instruments279.99 @ 1
thumbzoomZoroG1174862292.991144Dwyer0.73292.99 @ 1
thumbzoommidwestapplianceparts.com475-2-FM-DW-P295.971In StockDwyer295.97 @ 1
thumbzoomblackhawksupply.com475-2-FM298.751In StockDwyer298.75 @ 1
thumbzoomsustainablesupply.comC1758280301.851In StockDwyer Instruments0.73301.85 @ 1
thumbzoomhomeessentialsdirect.com475-2-FM311.11In StockDwyer Instruments, Inc.311.1 @ 1
thumbzoomgsistore.com475-2-FM313.1211Dwyer Instruments313.12 @ 1
thumbzoomsimsupply.comZO-G1174862348.0197Dwyer Instruments348.0 @ 1
grainger.caWWG1XFW3405.210231741In StockDWYER INSTRUMENTS0.73405.21023174 @ 1
thumbzoomRaptor SuppliesAB4EGC415.430731In StockDWYER INSTRUMENTS415.43073 @ 1
thumbzoombscsource.com4752FM502.191In StockDwyer502.19 @ 1
