- mpnW2E250-HJ32-01
- brandname: ebm-papst
- manufacturername: ebm-papst

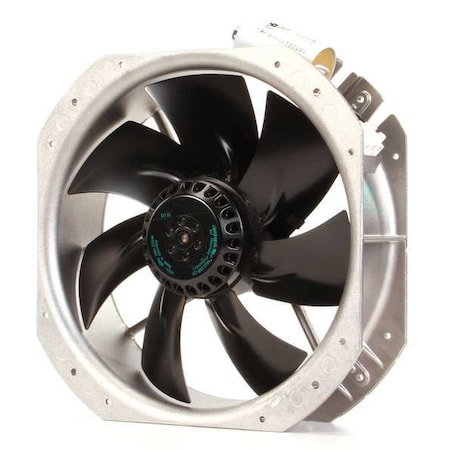

Ebm-Papst Axial Fan, 280Mm X 80Mm, 1100Cfm,73Dba - W2E250-HJ32-01
- Brand: EBM Papst
- PartNumber: W2E250-HJ32-01
- Model: W2E250-HJ32-01
- Binding: Misc.
- Manufacturer: ebm-papst
- Label: ebm-papst
Attributes
| Key | Value |
|---|
| Air Flow | 1100.0 CFM (30.80m?/min. |
| Amps | 1.42 |
| Approval Agency | CCC, CSA, UL |
| Approvals | CSA, UL, VDE |
| Approximate Size | 12.6 x 11 in. ; 320 x 2. |
| Approximate Thickness | 3.1 in. ; 79 mm |
| Availability | In Stock, ships within . |
| Base Product Number | W2E250 |
| Bearing Type | Ball |
| Blade Material | Sheet Steel |
| Brand | Ebm-Papst |
| Category | Fans, Thermal Management |
| CFM @ 0.000-In. SP | 1100 |
| Configuration | Obround (Flat Sides/Rou. |
| Current Rating (Amps) | 1.42A |
| Depth | 3 1/8 in |
| Dimensions | 12.6 x 11 x 3.1 . ; 320. |
| Electrical Connection -. | Terminals |
| Electrical Connections | Terminal Strip |
| Environmental Applicati. | Equipment Cooling |
| Family Series | ebm-papst, Inc. Fans, A. |
| Fan Width | 11" |
| Fan Depth | 3-1/8" |
| Fan Dia. | 3-3/16" |
| Fan Height | 11" |
| Fan Shape | Square |
| Fan Type | Tubeaxial, AC |
| Fan Voltage | 115VAC |
| Fan Width | 11" |
| Features | - |
| Frequency | 50;60 Hz |
| Gross Weight | 7.31 lbs |
| Height | 11 in |
| Housing Finish | Black Painted |
| Housing Material | Cast Aluminum |
| Hz | 60 |
| Impeller Material | Metallic |
| Ingress Protection | IP44 |
| International Shipping | No |
| IP Rating | 44, IP44 |
| Item | Standard Square Axial F. |
| Item Number | W2E250-HJ32-01 |
| Lifetime @ Temp. | - |
| Manufacturer | ebm-papst, Inc. |
| Manufacturer Part Number | W2E250-HJ32-01 |
| Material | HAWA, Diecast Aluminum |
| Material - Blade | Steel |
| Material - Frame | Aluminum |
| Max. Ambient Temp. | 122 Degrees F |
| Maximum Operating Tempe. | 50 C |
| Mfr | ebm-papst Inc. |
| Motor Insulation | Class B |
| Mounting Eye O.C. | 11 5/8 in |
| Mounting Position | Vertical or Horizontal |
| Mpn | W2E250-HJ32-01 |
| Net Weight | 7.315 lbs |
| Noise | 73.0dB(A) |
| Noise Level | 73 dB, 73 dBA |
| Nominal Depth | 80 mm |
| Nominal Height | 280 mm |
| Nominal Voltage | 120 VAC |
| Nominal Width | 280 mm |
| Operating Temperature | -13 ~ 131?F (-25 ~ 55?C) |
| Operating Voltage | 115 VAC |
| Package | Box |
| Phase | 1 |
| Power (Watts) | 160W |
| Power Consumption | 175 W |
| Power Rating | 175 W |
| Product Series | AC INPUT SQUARE |
| Product Status | Active |
| RoHS | Yes |
| Rotation | CCW, Counter Clockwise |
| RPM | 2850, 2850 RPM |
| Series | W2E250 Series, W2E250 |
| Shape | Square |
| Size | 12.6 x 11 x 3.1 (320 x . |
| Size / Dimension | Square - 280mm L x 280m. |
| SKU | ZO-G2298195 |
| Sound Level | 73 |
| Standards | UL2111, CSA, VDE |
| Static Pressure | 0.482 in H2O (120.0 Pa) |
| Tachometer Output | No |
| Termination | Terminals, Terminal Blo. |
| Thermal Protection | Thermally Protected |
| Type | Obround (Flat Sides/Rou. |
| Voltage | 115V AC |
| Voltage - Rated | 115VAC |
| Voltage Range | - |
| Voltage Rating | 115 V |
| Watts | 115/160, 175 |
| Weight | 4 Lbs., 7.2 lbs (3.3 kg) |
| Width | 11 in, 80.00mm |
