- mpn328706
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

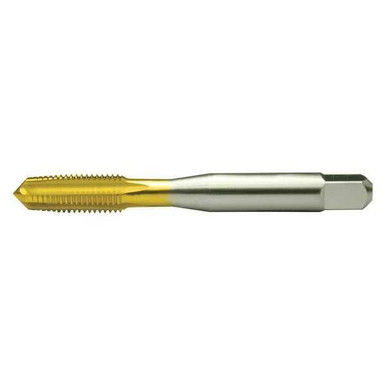

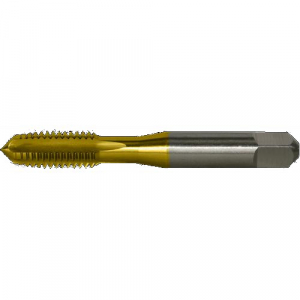

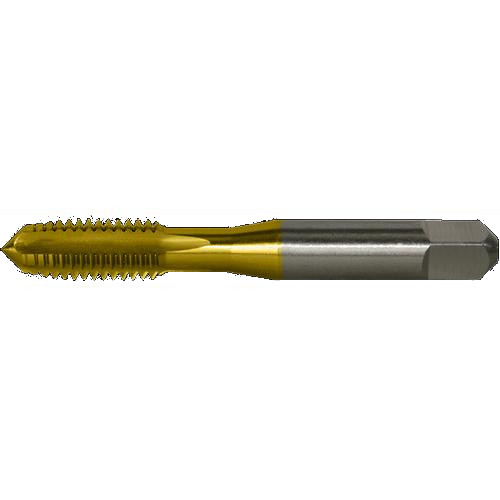

Hand Tap,Taper,M14-2.00 Thread,TiN,4 Flt
- Brand: Greenfield Threading
- PartNumber: 328706
- PackageQuantity: 1
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 12.50 mm, 12.50mm |
| 65% Thread Drill Size | 31/64 in, 31/64" |
| 75% Thread Drill Size | 12.00mm, 12.00 mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Tapered |
| Class of Fit | 2B |
| Country of Origin (subj. | United States |
| Current Stock | 42 |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Diameter | 0.5512" |
| Extended Neck | Yes |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| Helix Angle | 0 Degrees |
| International Shipping | No |
| Item | Taper Tap, Straight Flu. |
| Length of Cut | 2 in |
| List Number | HTGP-TN |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, Steel and St. |
| Measurement System | Metric |
| Mpn | 328706 |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 91.28 mm, 3.5938 in, 3.. |
| Overall Length (Metric) | 91.28mm |
| Package Quantity | 3 per case |
| Pitch Diameter Limit | D7 |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 10.9mm, 10.90mm |
| Shank Diameter | 0.429 in |
| Shank End | Square |
| Shank Length | 1 15/16 in, 1.9380" |
| Shank Size | 0.429 in, 0.429" |
| Shank Size (Metric) | 10.9mm |
| Shank Square Length | 0.5" |
| Shank Square Length (Me. | 12.7mm |
| Shank Square Width | 0.322" |
| Shank Square Width (Met. | 8.18mm |
| Shank Type - Machining | Straight |
| SKU | ZO-G7684050 |
| Spiral Direction | Neutral |
| Square Size | 8.18mm, 8.18 mm |
| Standards | USCTI Table 302A |
| Style | HTGP-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Chamfer | Taper |
| Tap Construction | Taper, Standard |
| Tap Dimension Type | Metric |
| Tap Finish | TiN |
| Tap Grouping | Tap |
| Tap Length Standard | USCTI |
| Tap Limit | D7 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | M14 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M14-2.00 |
| Tap Thread Type | Metric Coarse |
| Thread | M14x2 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 1.6562 in, 42.07mm, 1.6. |
| Thread Length (Metric) | 42.07mm |
| Thread Limit | D7 |
| Thread Limit / Class of. | D7 / 2B |
| Thread Pitch | 2.0, 2.00mm, 2,00 mm |
| Thread Size | M14x2, M14, M14x2.0 |
| Thread Standard | Metric Coarse, Ground/C. |
| Thread Tolerance | 2B |
| Tool Size | M14x2.0 |
| Type | General Purpose Standard |
| UPC | 093367287061 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7684050 | 31.0 | 1 | In Stock | | Greenfield Threading | 0.14 | 31.0 @ 1 |
 | usmegastore.com | 328706 | 32.62 | 1 | In Stock | | Greenfield Threading | | 32.62 @ 1 |
 | Megadepot | 328706 | 32.62 | 1 | In Stock | | Greenfield Threading | | 32.62 @ 1 |
 | heavydutydepot.com | 328706 | 32.62 | 4 | In Stock | | Greenfield Threading | | 32.62 @ 4 |
 | MRO Supply | 6108293 | 34.63 | 2 | In Stock | | Greenfield Threading | | 34.63 @ 2 |
 | rshughes.com | 933672-87061 | 36.7 | 3 | In Stock | | Greenfield Industries | | 36.7 @ 3 |
 | simsupply.com | ZO-G7684050 | 45.37 | 1 | 42 | | Greenfield Threading | | 45.37 @ 1 |
 | sustainablesupply.com | C2887438 | 49.38 | 1 | In Stock | | Greenfield Tap | 0.13 | 49.38 @ 1 |
| grainger.ca | GNF328706 | 60.67012354 | 1 | In Stock | | GREENFIELD THREADING | 61.333 | 60.67012354 @ 1 |
