- mpn328707
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

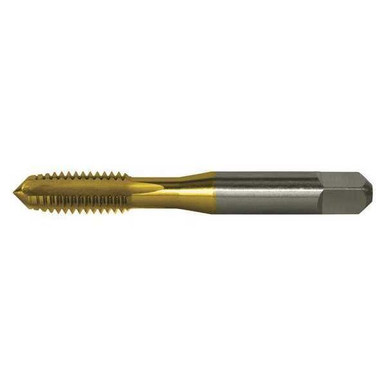

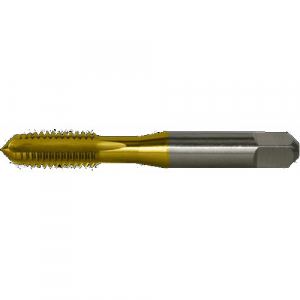

Vermont Tap & Die TN-3105-M High-Speed Steel Metric Straight Fluted Ground Thread Hand Tap, TiN Coated, Round With Square End, Plug Chamfer, M14-2mm Thread Size, D7 Pitch Diameter, 4 Flutes
- Brand: Greenfield Threading
- PartNumber: 328707
- Model: 328707
- Size: M14 x 2
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 12.50 mm, 12.50mm |
| 65% Thread Drill Size | 31/64 in, 31/64" |
| 75% Thread Drill Size | 12.00mm, 12.00 mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Plug |
| Class of Fit | 2B |
| Current Stock | 12 |
| Cutting Direction | Right Hand |
| Diameter | 0.5512" |
| Extended Neck | Yes |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| International Shipping | No |
| Item | Plug Tap, Straight Flut. |
| Length of Cut | 2 in |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, Steel and St. |
| Measurement System | Metric |
| Mpn | 328707 |
| Number of Flutes | 4 |
| Overall Length | 91.28 mm, 3.5938 in, 3.. |
| Overall Length (Metric) | 91.28mm |
| Package Quantity | 3 per case |
| Pitch Diameter Limit | D7 |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 10.9mm, 10.90mm |
| Shank Diameter | 0.429 in |
| Shank End | Square |
| Shank Length | 1 15/16 in, 1.9380" |
| Shank Size | 0.429 in, 0.429" |
| Shank Size (Metric) | 10.9mm |
| Shank Square Length | 0.5" |
| Shank Square Length (Me. | 12.7mm |
| Shank Square Width | 0.322" |
| Shank Square Width (Met. | 8.18mm |
| Shank Type - Machining | Straight |
| SKU | ZO-G7684367 |
| Spiral Direction | Neutral |
| Square Size | 8.18mm, 8.18 mm |
| Standards | USCTI Table 302A |
| Style | HTGP-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Chamfer | Plug |
| Tap Construction | Plug, Standard |
| Tap Dimension Type | Metric |
| Tap Finish | TiN |
| Tap Grouping | Tap |
| Tap Length Standard | USCTI |
| Tap Limit | D7 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | M14 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M14-2.00 |
| Tap Thread Type | Metric Coarse |
| Thread | M14x2 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 1.6562 in, 42.07mm, 1.6. |
| Thread Length (Metric) | 42.07mm |
| Thread Limit | D7 |
| Thread Limit / Class of. | D7 / 2B |
| Thread Pitch | 2.0, 2,00 mm |
| Thread Size | M14x2, M14, M14x2.0 |
| Thread Standard | Ground/Coarse, Metric C. |
| Thread Tolerance | 2B |
| Tool Size | M14x2.0 |
| Type | General Purpose Standard |
| UPC | 093367287078 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | usmegastore.com | 328707 | 32.14 | 1 | In Stock | | Greenfield Threading | | 32.14 @ 1 |
 | Megadepot | 328707 | 32.14 | 1 | In Stock | | Greenfield Threading | | 32.14 @ 1 |
 | heavydutydepot.com | 328707 | 32.14 | 4 | In Stock | | Greenfield Threading | | 32.14 @ 4 |
 | MRO Supply | 6108294 | 33.29 | 2 | In Stock | | Greenfield Threading | | 33.29 @ 2 |
 | Zoro | G7684367 | 33.59 | 1 | 13 | | Greenfield Threading | 0.15 | 33.59 @ 1 |
 | rshughes.com | 933672-87078 | 36.7 | 3 | In Stock | | Greenfield Industries | | 36.7 @ 3 |
| AmazonSC | B007W6AXPM | 36.73 | 1 | In Stock | | Greenfield Threading | | 36.73 @ 1 |
 | simsupply.com | ZO-G7684367 | 42.97 | 1 | 12 | | Greenfield Threading | | 42.97 @ 1 |
 | sustainablesupply.com | C2887440 | 49.38 | 1 | In Stock | | Greenfield Tap | 0.14 | 49.38 @ 1 |
| grainger.ca | GNF328707 | 60.67012354 | 1 | In Stock | | GREENFIELD THREADING | 0.15 | 60.67012354 @ 1 |
