- mpn328717
- brandname: GREENFIELD THREADING
- manufacturername: GREENFIELD THREADING

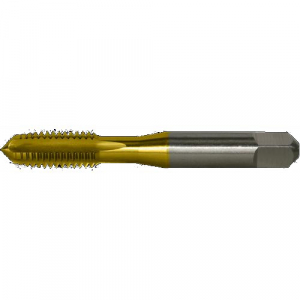

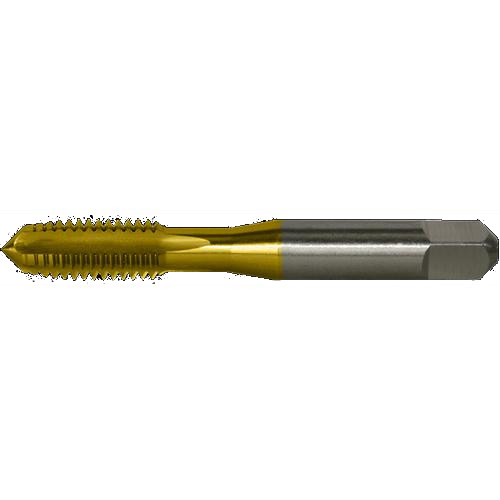

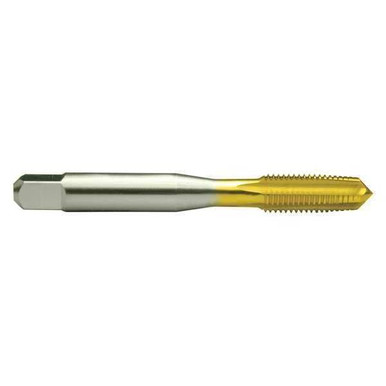

Hand Tap,Bottoming,M20-2.50 Thread,TiN
- Brand: Greenfield Threading
- PartNumber: 328717
- PackageQuantity: 1
- Manufacturer: GREENFIELD THREADING
- Label: GREENFIELD THREADING
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 18.20mm, 18.20 mm |
| 65% Thread Drill Size | 45/64", 45/64 in |
| 75% Thread Drill Size | 17.50mm, 17.50 mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Bottoming |
| Class of Fit | 2B |
| Country of Origin (subj. | United States |
| Current Stock | 5 |
| Cutting Direction | Right Hand |
| Cutting Direction - Mac. | Right Hand |
| Diameter | 0.7874" |
| Extended Neck | Yes |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| Helix Angle | 0 Degrees |
| International Shipping | No |
| Item | Tap, Straight Flute Han. |
| Length of Cut | 2 in |
| List Number | HTGP-TN |
| Material | HSS, High-Speed Steel |
| Material Application | Cast Iron, Steel and St. |
| Measurement System | Metric |
| Mpn | 328717 |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 113.51mm, 4.4688 in, 4.. |
| Overall Length (Metric) | 113.51mm |
| Package Quantity | 1 per case |
| Pitch Diameter Limit | D7 |
| Primary Material Applic. | Cast Iron, Stainless St. |
| Primary Material Applic. | K, M, P |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 16.56mm |
| Shank Diameter | 0.652 in |
| Shank End | Square |
| Shank Length | 2.4690", 2 15/32 in |
| Shank Size | 0.652 in, 0.652" |
| Shank Size (Metric) | 16.56mm |
| Shank Square Length | 0.6875" |
| Shank Square Length (Me. | 17.46mm |
| Shank Square Width | 0.489" |
| Shank Square Width (Met. | 12.42mm |
| Shank Type - Machining | Straight |
| SKU | ZO-G7684078 |
| Spiral Direction | Neutral |
| Square Size | 12.42mm, 12.42 mm |
| Standards | USCTI Table 302A |
| Style | HTGP-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Chamfer | Bottoming |
| Tap Construction | Bottoming, Standard |
| Tap Dimension Type | Metric |
| Tap Finish | TiN |
| Tap Grouping | Tap |
| Tap Length Standard | USCTI |
| Tap Limit | D7 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | USCTI |
| Tap Size | M20 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M20-2.50 |
| Tap Thread Type | Metric Coarse |
| Thread | M20x2.5 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 2 in, 50.80mm, 2" |
| Thread Length (Metric) | 50.80mm |
| Thread Limit | D7 |
| Thread Limit / Class of. | D7 / 2B |
| Thread Pitch | 2.50mm, 2,50 mm, 2.5 |
| Thread Size | M20x2.5, M20 |
| Thread Standard | Metric Coarse, Ground/C. |
| Thread Tolerance | 2B |
| Tool Size | M20x2.5 |
| Type | General Purpose Standard |
| UPC | 093367287177 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 328717 | 67.46 | 1 | In Stock | | Greenfield Threading | | 67.46 @ 1 |
 | heavydutydepot.com | 328717 | 67.46 | 2 | In Stock | | Greenfield Threading | | 67.46 @ 2 |
 | usmegastore.com | 328717 | 70.35 | 1 | In Stock | | Greenfield Threading | | 70.35 @ 1 |
 | Zoro | G7684078 | 71.79 | 1 | In Stock | | Greenfield Threading | 0.34 | 71.79 @ 1 |
 | MRO Supply | 6108300 | 73.25 | 1 | In Stock | | Greenfield Threading | | 73.25 @ 1 |
 | rshughes.com | 933672-87177 | 80.74 | 1 | In Stock | | Greenfield Industries | | 80.74 @ 1 |
 | simsupply.com | ZO-G7684078 | 87.64 | 1 | 5 | | Greenfield Threading | | 87.64 @ 1 |
 | sustainablesupply.com | C2887506 | 107.19 | 1 | In Stock | | Greenfield Tap | 0.34 | 107.19 @ 1 |
| grainger.ca | GNF328717 | 132.75717546 | 1 | In Stock | | GREENFIELD THREADING | 155.7 | 132.75717546 @ 1 |
