Hubbell USB15AC5BK

mpnUSB15AC5BK
brandname: HUBBELL WIRING DEVICE-KELLEMS
manufacturername: HUBBELL WIRING DEVICE-KELLEMS

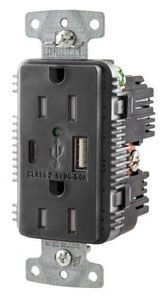

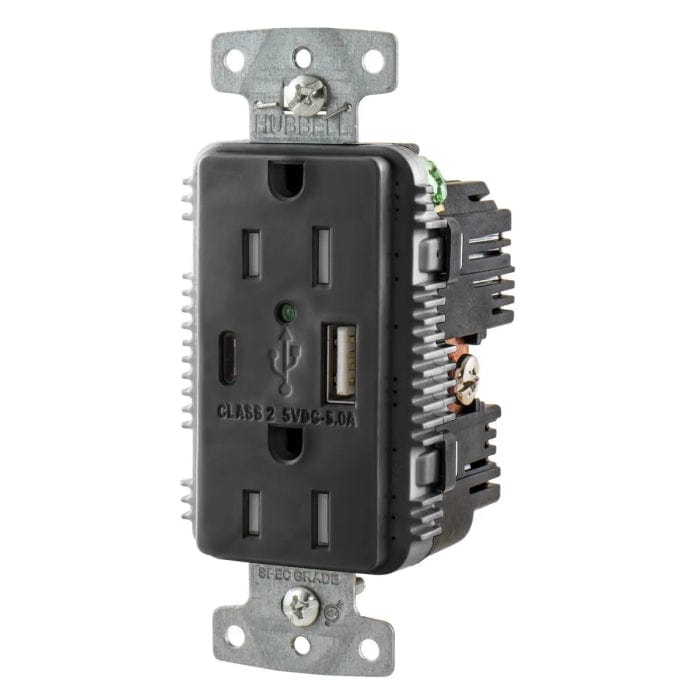

Hubbell USB15AC5BK USB Charging Receptacles 15A 125V Black

Brand: Hubbell
PartNumber: USB15AC5BK
Model: USB15AC5BK
Color: Black
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Hubbell (HUBDF)
Label: Hubbell (HUBDF)

Attributes

Key	Value
Amperage Rating	15A
Amps - Plugs and Recep.	15
Amps - Plugs and Recept.	15
Application Environment	Commercial
Approvals	cUL
Brand	Hubbell
Color	Black
Color - Plugs and Recep.	Black
Color Family	Black
Contact Material	Plated Steel
Country of Origin	CN - China
Country of Origin (subj.	China
Current Rating	15 A
ECCN	EAR99
Electrical Connection T.	Straight Blade
Family Series	Hubbell Plugs & Recepta.
GFCI	No
Gross Weight	0.4 lbs
Grounding	Grounded
Horsepower Rating	1/2 hp
Housing Color	Black
Housing Material	RTP
HP	1/2 hp
International Shipping	No
Isolated Ground	No
Item	USB Charger Receptacle
Item - Plugs and Recept.	USB Charger Receptacle
Item Number	USB15AC5BK
Manufacturer	Hubbell
Manufacturer Part Number	USB15AC5BK
Market	Commercial
Material of Construction	Nylon
Maximum Operating Tempe.	75 Degrees C
Maximum Wire Size	10 AWG
Minimum Operating Tempe.	-40 Degrees C
Minimum Wire Size	14 AWG
Mount Hole Center-to-Ce.	3.28 in
Mount Type	Flush
Mounting Type - Plugs a.	Flush
Mpn	USB15AC5BK
NEMA Configuration	5-15R
NEMA Receptacle Configu.	5-15R
NEMA Receptacle Configu.	5-15R
Net Weight	0 lbs
No. of Poles	2
No. of Wires	3
Number of Outlets	2
Number of Poles	2
Number of USB Ports	2
Number of Wires	3
Outlet Type - Plugs and.	Decorator Duplex
Overall Depth	1.82 in
Phase	1
Power Indicating Light	Yes
Power Indicator	Yes
Product Series	Commercial Grade USB Ch.
Receptacle Type	Duplex
Resistance Properties	Tamper Resistant
SKU	ZO-G5857061
Standards	cULus
Style	Style Line Decorator
SubCategory	Electrical
Tamper Resistance	Yes
Tamper Resistant	Yes
Type	One Type A, One Type-C .
UL 94 Flammability Rati.	V-2
UNSPSC	39121406
UPC	883778307201
USB	Yes
USB Charging Capacity	5.0A @ 5V DC
USB Connection Type	A, C
USB Connector	Type A and C
Voltage	125 VAC
Voltage - Plugs and Rec.	125V AC
Voltage Rating	125V AC
Weather Resistant	No
Weather Resistant - Plu.	No
Wire Connection Type	Screw Terminals
Wire Connection Types	Screw Terminals
Wiring Method - Plugs a.	Back and Side

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Galco	USB15AC5BK-HBBL	40.62	1	In Stock	Hubbell	0.4	40.62 @ 1
turtle.com	HEP USB15AC5BK	45.73	1	In Stock	Hubbell		45.73 @ 1
gordonelectricsupply.com	USB15AC5BK	47.13	1	In Stock	HUBBELL		47.13 @ 1
Zoro	G5857061	48.84	1	In Stock	Hubbell	0.38	48.84 @ 1
Graybar	25882610	49.3584	1	In Stock	Hubbell Wiring Device - Kellems		49.3584 @ 1
simsupply.com	ZO-G5857061	59.66	1	In Stock	Hubbell		59.66 @ 1
Newark	94Y4129	64.03	1	In Stock	HUBBELL WIRING DEVICES		64.03 @ 1
firstchoicemarine.com	HUB-USB15AC5BK	65.58	1	In Stock	Hubbell		65.58 @ 1
