Hubbell USB20C5I

B06X6BCJJZ

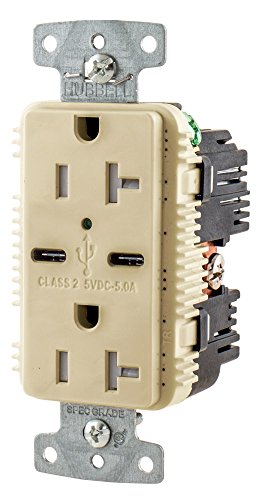

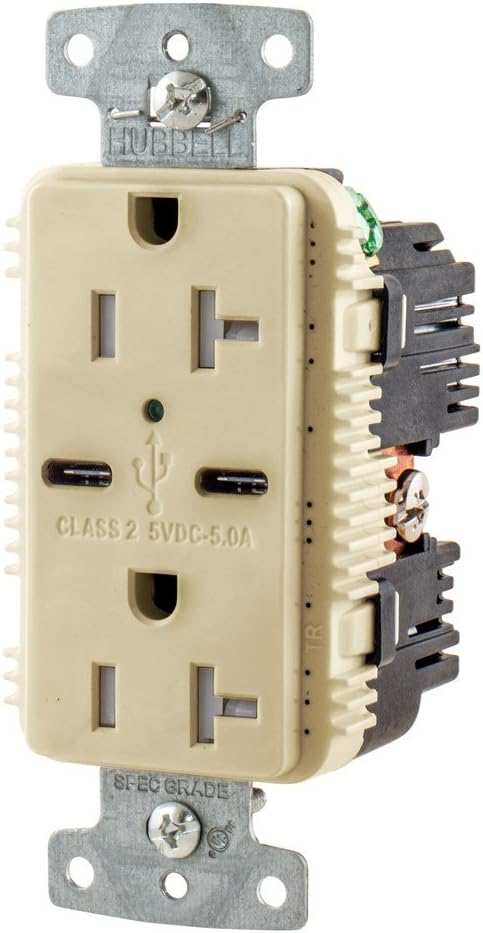

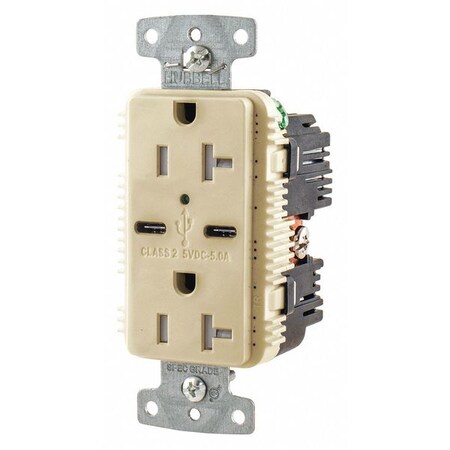

Hubbell USB20C5I Type C 20A USB Receptacle, Ivory

Hubbell USB20C5I Type C 20A USB Receptacle, Ivoryzoom

Attributes

Key Value
Amps - Plugs and Recep.20
Amps - Plugs and Recept.20
Application EnvironmentCommercial
ApprovalscUL
ASINB06X6BCJJZ
Batteries Included?No
Batteries Required?No
ColorIvory
Color - Plugs and Recep.Ivory
Contact MaterialPlated Steel
Country of Origin (subj.China
Current Rating20 A
Electrical Connection T.Straight Blade
Family SeriesHubbell Plugs & Recepta.
GFCINo
Gross Weight0.4 lbs
GroundingGrounded
Horsepower Rating1 hp
Housing ColorIvory
Housing MaterialRTP
HP1 hp
Isolated GroundNo
ItemUSB Charger Receptacle
Item - Plugs and Recept.USB Charger Receptacle
Item model numberUSB20C5I
Item NumberUSB20C5I
Item Package Quantity1
ManufacturerHubbell
Manufacturer Part NumberUSB20C5I
MarketCommercial
Material of ConstructionNylon
Maximum Operating Tempe.75 Degrees C
Maximum Wire Size10 AWG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
Mounting Type - Plugs a.Flush
NEMA Configuration5-20R
NEMA Receptacle Configu.5-20R
NEMA Receptacle Configu.5-20R
Net Weight0.35 lbs
Number of Outlets2
Number of Poles2
Number of USB Ports2
Number of Wires3
Outlet Type - Plugs and.Decorator Duplex
Overall Depth1.82 in
Part NumberUSB20C5I
Phase1
Power Indicating LightYes
Power IndicatorYes
Product SeriesCommercial Grade USB Ch.
Receptacle TypeDuplex
Resistance PropertiesTamper Resistant
StandardscULus
Tamper ResistanceYes
Tamper ResistantYes
UL 94 Flammability Rati.V-2
USBYes
USB Charging Capacity5.0A @ 5V DC
USB Connection TypeC
USB ConnectorType C
Voltage125 VAC
Voltage - Plugs and Rec.125V AC
Voltage Rating125V AC
Weather ResistantNo
Weather Resistant - Plu.No
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG585231046.761In Stock11Hubbell4.046.76 @ 1
thumbzoomGalcoUSB20C5I-HBBL48.281In StockHubbell0.448.28 @ 1
thumbzoomAmazonB06X6BCJJZ49.751In StockHubbell49.75 @ 1
thumbzoomgordonelectricsupply.comUSB20C5I51.481In StockHUBBELL51.48 @ 1
thumbzoomturtle.comHEP USB20C5I51.961In StockHubbell51.96 @ 1
thumbzoomMRO Supply502202452.791In StockHubbell Wiring52.79 @ 1
Newark94Y417672.81In StockHUBBELL WIRING DEVICES72.8 @ 1
kirbyrisk.com344637374.591In StockHubbell74.59 @ 1
