CAI - HUBBELL WIRING DEVICE-KELLEMS USB8200AC5GY

mpnUSB8200AC5GY
brandname: HUBBELL WIRING DEVICE-KELLEMS
manufacturername: HUBBELL WIRING DEVICE-KELLEMS

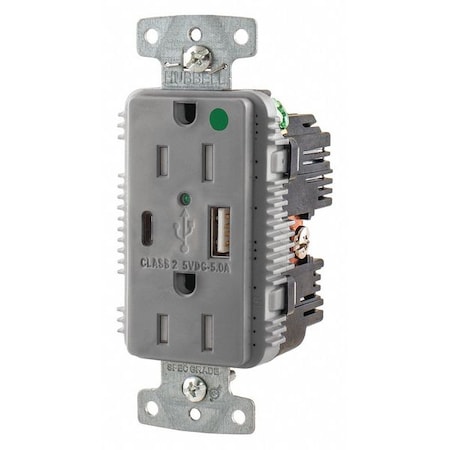

Hubbell Wiring Device-KELLEMS 15A Hospital Grade USB Charger Receptacle, Gray

Brand: CAI - HUBBELL WIRING DEVICE-KELLEMS
PartNumber: USB8200AC5GY
PackageQuantity: 1
Manufacturer: CAI - HUBBELL WIRING DEVICE-KELLEMS
Label: CAI - HUBBELL WIRING DEVICE-KELLEMS

Attributes

Key	Value
Amperage Rating	15A
Amps - Plugs and Recept.	15
Application Environment	Hospital Grade
Approvals	CSA, UL
Color	Gray
Color - Plugs and Recep.	Gray
Color Family	Gray
Comments	USB Charging/Power
Contact Material	Plated Steel
Country of Origin	CN - China
Country of Origin (subj.	China
Current / amperage rati.	15 A
Current Rating	15 A
ECCN	EAR99
Electrical Connection T.	Straight Blade
Family Series	Hubbell Plugs & Recepta.
GFCI	No
Grade	Hospital Grade
Gross Weight	0.3 lbs
Grounding	Grounded
Horsepower Rating	1/2 hp
Housing Color	Gray
Housing Material	RTP
HP	1/2 hp
Illuminated	No
Isolated Ground	No
Item	USB Charger Receptacle
Item - Plugs and Recept.	USB Charger Receptacle
Item Number	USB8200AC5GY
Manufacturer	Hubbell
Manufacturer Part Number	USB8200AC5GY
Material of Construction	Nylon
Maximum Operating Tempe.	75 Degrees C
Maximum Wire Size	10 AWG
Minimum Operating Tempe.	-40 Degrees C
Minimum Wire Size	14 AWG
Mount Hole Center-to-Ce.	3.28 in
Mount Type	Flush
Mounting Type - Plugs a.	Flush
Multimedia Outlet	No
NEMA Configuration	5-15R
Nema Rating	5-15R
NEMA Receptacle Configu.	5-15R
NEMA Receptacle Configu.	5-15R
Net Weight	0 lbs
No. of Poles	2
No. of Wires	3
Number of Outlets	2
Number of poles	2-Pole
Number of Poles	2
Number of USB Ports	2
Number of Wires	3
Number of wires	3-Wire
Outlet Type - Plugs and.	Decorator Duplex
Overall Depth	1.82 in
Phase	1
Power Indicating Light	Yes
Power Indicator	Yes
Receptacle Type	Duplex
Resistance Properties	Tamper Resistant
Series	Hospital Grade
Standards	cULus
Style	Style Line Decorator
Tamper Resistance	Yes
Tamper Resistant	Yes
Type	One Type A, One Type-C .
UL 94 Flammability Rati.	V-2
UNSPSC	39121406
USB	Yes
USB Charging Capacity	5.0A @ 5V DC
USB Connection Type	A, C
USB Connector	Type A and C
Voltage	125 VAC
Voltage - Plugs and Rec.	125V AC
Voltage Rating	125V AC
Voltage rating descript.	125 V
Weather Resistant	No
Weather Resistant - Plu.	No
Wire Connection Type	Screw Terminals
Wire Connection Types	Screw Terminals
Wiring Method - Plugs a.	Back and Side

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Galco	USB8200AC5GY-HBBL	48.01	1	In Stock		Hubbell	0.3	48.01 @ 1
Zoro	G5877039	52.66	1	In Stock	11	Hubbell	4.0	52.66 @ 1
turtle.com	HEP USB8200AC5GY	54.06	1	In Stock		Hubbell		54.06 @ 1
MRO Supply	5022057	54.86	1	In Stock		Hubbell Wiring		54.86 @ 1
gordonelectricsupply.com	USB8200AC5GY	55.68	1	In Stock		HUBBELL		55.68 @ 1
Newark	94Y4186	75.65	1	In Stock		HUBBELL WIRING DEVICES		75.65 @ 1
Graybar	25882386	85.5344	1	In Stock		Hubbell Wiring Device - Kellems		85.5344 @ 1
