Molex / Waldom 39-29-5043

mpn0039295043
brandname: Molex
manufacturername: Molex

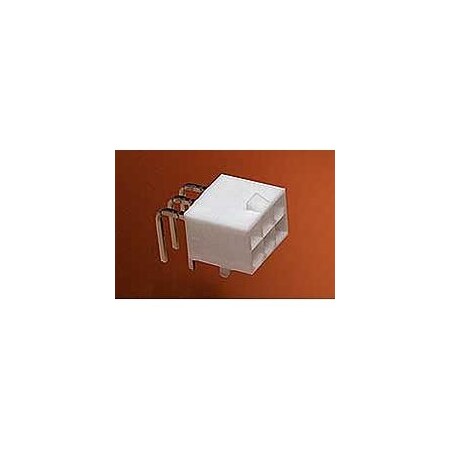

Molex / Waldom 39-29-5043 Connector Power

Molex / Waldom 39-29-5043 Connector Power

zoom

Brand: Molex / Waldom
PartNumber: 39-29-5043
PackageQuantity: 1
Binding: Electronics
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Mfr Part Numb.	5569-04AG1
Applications	General Purpose, Indust.
Base Product Number	003929
Body Orientation	Right Angle
Brand	Molex
Category	Connectors, Interconnec.
Color	Natural
Connector System	Wire to Board
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	30.0?in (0.76?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Current Rating	8A
Current Rating (Amps)	-
Description	CONN HEADER R/A 4POS 4..
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM3921-ND
Fastening Type	Locking Ramp
Features	Mounting Flange
Ingress Protection	-
Insulation Color	Natural
Insulation Height	0.378" (9.60mm)
Insulation Material	Polyamide (PA66), Nylon.
Manufacturer	Molex
Manufacturer Product Nu.	0039295043
Manufacturer Standard L.	17 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-2
Mfr	Molex
Mounting Type	Through Hole, Through H.
Number Of Contacts	4
Number of Positions	4
Number of Positions Loa.	All
Number of Rows	2
Number Of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch	4.2mm, 4.20 mm (0.165")
Pitch - Mating	0.165" (4.20mm)
Primary Type	Soft Shell
Product Status	Active
Row Spacing - Mating	0.165" (4.20mm)
Series	Mini-Fit Jr 5569, Mini-.
Shrouded/Unshrouded	Shrouded
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Termination Method	Solder
Type	Header
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Power and Signal Group	0039295043	0.8375	400	119		Molex		0.8375 @ 400
	Onlinecomponents.com	39-29-5043	0.84	1	43		MOLEX / WALDOM		0.84 @ 1
	Waldom	MOLEX 39-29-5043	0.9	60	3200		MOLEX		0.9 @ 60
	NEP Electronics	39-29-5043	1.1176	70	3200		Molex		1.1176 @ 70
	RS Delivers	670-5534	1.242	5	85		Molex		1.242 @ 5
	Newark	39C3384	1.41	1	3028		MOLEX		1.41 @ 1
	us.rs-online.com	70091208	1.42308	1	119		Molex Incorporated		1.42308 @ 1
	Digi-Key	356035	1.86	1	15303		Molex		1.86 @ 1
	Zoro	G600442610	81.0	1	119		Molex		81.0 @ 1
