- mpn943B
- brandname: TB WOOD'S
- manufacturername: TB WOOD'S

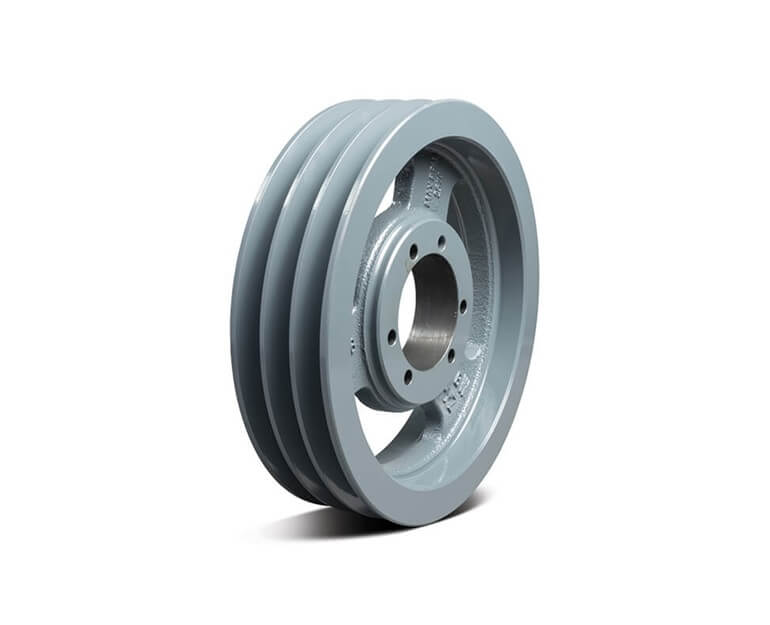

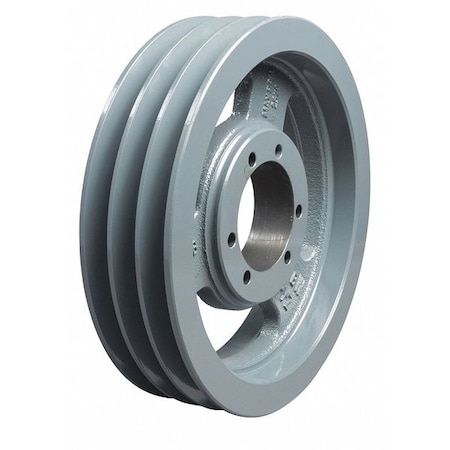

TB Woods 943B Classical V-Belt Sheave, B Belt Section, 3 Grooves, SK Bushing required, Cast Iron, 9.75" OD
- Brand: TB Woods
- PartNumber: 943B
- Color: Grey
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TB Woods
- Label: TB Woods
Attributes
| Key | Value |
|---|
| 3L Pitch Diameter | Not Applicable |
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 9.25 in |
| 4L, A, or AX Belt Pitch. | 9 in |
| 5L Pitch Diameter | 9.813 in |
| 5L, B, or BX Belt Pitch. | 9.4 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 9.25 in |
| AX Pitch Diameter | 9.25 in |
| B Pitch Diameter | 9.813 in |
| Balance | Standard, 1 plane |
| Belt section | A-B |
| Bore Type | Bushed |
| Bore type | Quick disconnect bushing |
| Brand | Tb Woods |
| Bushing | SK |
| Bushing Required | SK |
| BX Pitch Diameter | 9.813 in |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 1.57 |
| Construction | Arm |
| Current Stock | 18 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 9.4 |
| Dimension | 1.88 |
| Dimension (E) | 0.03 |
| Dimension (L) | 1.88 |
| Dimension (M) | 0.66 |
| Face Diameter | 9.75 in |
| Face width | 2.5 |
| Face Width | 2.5 in |
| Face width (in) | 2.50 |
| Fits Shaft Dia. | 1/2 in to 2-1/2 in |
| For Belt Section (broad. | 4L, A, or AX, 5L, B, or. |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX, 4. |
| For Bushing Size | SK |
| For Bushing Type | Quick Detachable |
| For V-Belt Section | 4L, A, AX, B, BX |
| For V-Belt Type | Banded, Classical, Cogg. |
| Groove cross section se. | A-B |
| Hub location | 0.69 |
| Hub location (in) | 0.69 |
| I.D. | 8 |
| Industry Number | 943B |
| Inertia WR? | 150 |
| Inside diameter (in) | 8.00 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Length through Bore | 1 7/8 in |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Material type | Cast Iron |
| Max RPM | 2570 |
| Maximum Bore Diameter | 2 1/2 in |
| Minimum Bore Diameter | 1/2 in |
| Mpn | 943B |
| Number of Grooves | 3 |
| Number of grooves | 3 |
| Number of Steps | 3 |
| O.D. | 9.75 |
| Outside Diameter | 9.75 in |
| Outside diameter (in) | 9.75 |
| Overall Width | 2 1/2 in |
| Pitch diameter | 9.81 |
| Pitch Diameter | Not Applicable, 9.81 in |
| Pitch Diameter for V-Be. | 4L: 9.25 in / 5L: 9.813. |
| Pulley Bore Type | Quick Detachable Bushed. |
| Pulley Construction | Arm |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 9.75 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 2570 |
| Set Screw Included | No |
| SKU | ZO-G2093987 |
| Standards | ISO 9001:2015 |
| SubCategory | Power Transmission |
| UPC | 698672022675 |
| Weight | 15.1 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2093987 | 108.99 | 1 | 26 | | Tb Woods | 15.95 | 108.99 @ 1 |
 | sustainablesupply.com | C2682952 | 129.84 | 1 | In Stock | | TB Wood's | 15.95 | 129.84 @ 1 |
 | bscsource.com | 82245820 | 129.89 | 1 | In Stock | | TB Wood's | | 129.89 @ 1 |
 | simsupply.com | ZO-G2093987 | 130.35 | 1 | 18 | | Tb Woods | | 130.35 @ 1 |
| grainger.ca | WWG5YKP2 | 132.84427218 | 1 | In Stock | | TB WOOD'S | 15.95 | 132.84427218 @ 1 |
 | National Supply Network | 82245820 | 146.94 | 1 | In Stock | | TB Wood's | | 146.94 @ 1 |
 | Guardian | 82245820 | 147.91 | 1 | In Stock | | TB Wood's | | 147.91 @ 1 |
 | MRO Supply | 346337 | 176.07 | 1 | In Stock | | TB Woods | | 176.07 @ 1 |
 | Purvis | 9.4X3B-SK | 189.12 | 1 | In Stock | | TB Woods | | 189.12 @ 1 |
| us.rs-online.com | 73931409 | 195.32 | 1 | In Stock | | TB Wood's (Altra) | | 195.32 @ 1 |
| motionindustries.com | 00700224 | 250.2 | 1 | In Stock | | TB Woods (Altra) | | 250.2 @ 1 |
 | Raptor Supplies | AE7HTF | 270.599823 | 1 | In Stock | | TB WOODS | | 270.599823 @ 1 |
