TE CONNECTIVITY / ALCOSWITCH FSM100

B00LQOII4O

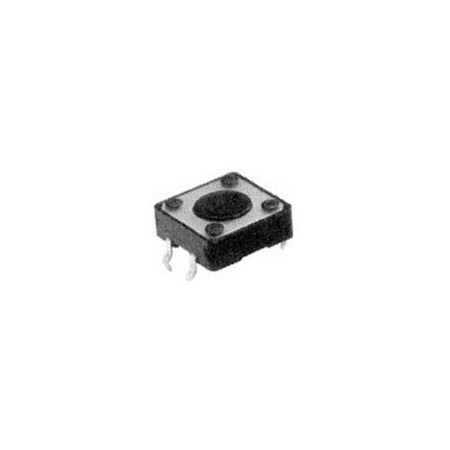

TE CONNECTIVITY / ALCOSWITCH FSM100 Switch, Tactile SPST, 50mA, Through Hole

TE CONNECTIVITY / ALCOSWITCH FSM100 Switch, Tactile SPST, 50mA, Through Holezoom

Attributes

Key Value
ActuatorRound
Actuator ColorBlack
Actuator Force160 g [ 5.648 oz ]
Actuator Height4.3 mm
Actuator Height off PCB.4.30mm
Actuator Length6.35 mm [ .25 in ]
Actuator Length, Right .-
Actuator MaterialPolyester, Acetal
Actuator Operating AngleTop Actuated
Actuator OrientationTop Actuated
Actuator ProfileFlush
Actuator StyleRound
Actuator TypeStandard
Alternate Part No.506-FSM100
Base Product NumberFSM1
BrandTE Connectivity / Alcos.
Bushing StyleUnthreaded
Button Width6.7 mm [ .264 in ]
Case ColorBlack
Case MaterialPolyamide
CategorySwitches
CircuitSPST-NO
Configuration (Pole-Thr.Single Pole - Single Th.
Contact Base MaterialCopper Alloy
Contact Current Rating50
Contact FormSPST, SPST - NO, SPST-NO
Contact Rating0.05 A
Contact Rating @ Voltage0.05A @ 24VDC
Cover MaterialPolyester
Current Rating50 mA
DescriptionSWITCH TACTILE SPST-NO .
Detailed DescriptionTactile Switch SPST-NO .
Digi-Key Part Number450-1131-ND
Dust ProofNO
ESD Grounding TerminalWithout
Factory Pack Quantity400
Family NameAlcoswitch Family
Features-
GangedWith
IlluminatedNO
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
In-stock88000
Ingress Protection-
Leg StyleKinked
Low ProfileWith
ManufacturerTE Connectivity, TE Con.
Manufacturer Part No.FSM100
Manufacturer Product Nu.FSM100
Manufacturer Standard L.22 Weeks
Mechanical Life100,000 Cycles
MfrTE Connectivity ALCOSWI.
Mounting AngleVertical
Mounting DirectionVertical
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Actuators1
Operating Force160 gf, 1.6 N, 160gf
Operating FunctionNO
Operating Temperature-35?C ~ 85?C
OperationOff-Momentary
Outline12.00mm x 12.00mm
PackageBulk
PackagingBulk
Part # Aliases1437565-2
Process SealedNO
Product CategoriesTactile & Jog Switches
Product CategoryTactile Switches
Product StatusActive
RoHs StatusRohs
SeriesFSM100 ~ 104, FSM Series
Snap ActionWithout
Support BracketWithout
Switch Contact Plating .Silver
Switch FunctionOff-Mom, OFF - (ON)
Switch Height (in)0.169
Switch Travel0.30mm
TactileYes
Temperature Rating (?C)Standard
TerminationPCB Pins
Termination StyleSolder Pin, PC Pin
Termination TypePrinted Circuit Board
TypeTactile
Voltage Rating24 V
Voltage Rating DC24 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY ALCOSWITCH FSM1000.1673507276TE CONNECTIVITY / ALCOSWITCH0.167 @ 350
Onlinecomponents.com1437565-20.1841250TE Connectivity / AMP Brand0.181 @ 251
thumbzoomNewark14H09060.2538000250ALCOSWITCH - TE CONNECTIVITY0.253 @ 8000
us.rs-online.com702884190.29851250TE Connectivity0.2985 @ 250
thumbzoomTME1437565-20.3545477TE Connectivity0.354 @ 250
TE Connectivity1437565-20.354918046TE Connectivity (TE)0.3549 @ 250
thumbzoomDigi-Key5258070.38078416532TE Connectivity ALCOSWITCH Switches0.380784 @ 250
RS Delivers718-2395P0.51481250TE Connectivity0.5148 @ 250
thumbzoomswatee.comFSM1000.5713638TE Connectivity0.57 @ 250
thumbzoomZoroG200967261110.01250Alcoswitch110.0 @ 250
