- mpnZ42
- brandname: ACTi
- manufacturername: ACTi

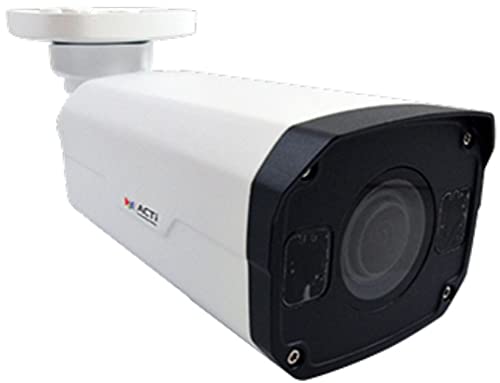

ACTi Z42 4MP Zoom Bullet with D/N, Adaptive IR, Superior WDR, SLLS, 4.3x Zoom Lens, f2.8-12mm (HOV:91?-27?), Auto Focus, H.265/H.264, 2D+3D DNR, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10
- Brand: ACTi
- PartNumber: Z42
- Model: Z42
- PackageQuantity: 1
- Manufacturer: ACTi CORPORATION
- Label: ACTi CORPORATION
Attributes
| Key | Value |
|---|
| Aperture | F1.6 |
| Application Environment | Outdoor |
| Approvals | CE, FCC, IP68, NEMA 4X,. |
| Bit Rate Mode | Constant, Variable |
| Built-in Analytics | Tampering Detection, In. |
| Compression | H.265, H.264 (Baseline/. |
| Day / Night | Yes |
| Digital Noise Reduction | 2D + 3D DNR |
| Dimensions | (W x H x D): 86.4mm x 7. |
| Effective Pixels | 2688(H) X 1520(V) (4.09. |
| Electronic Shutter | 1-1/100000 second (manu. |
| Environmental Casing | Weatherproof (IP68), Va. |
| Ethernet Port | 1 x Ethernet (10/100 Ba. |
| Event Response | E-mail notification wit. |
| Event Trigger | Video motion detection . |
| Focal Length | Zoom, f2.8-12mm |
| Focus | Auto focus |
| Horizontal Viewing Angle | 102.1? - 28.5? |
| Image Enhancement | White Balance, Backligh. |
| Image Orientation | Flip, Mirror |
| Image Sensor | Progressive Scan CMOS |
| IR LED | Adaptive IR LED x 2 (85. |
| IR Working Distance | 40m |
| Iris | Fixed iris |
| Lens Mount | Board mount |
| Local Storage | MicroSD, MicroSDHC, Mic. |
| Low Light Sensitivity | Superior |
| Maximum Resolution | 4MP |
| Mechanical IR Cut Filter | Yes |
| Minimum Illumination | Color: 0.01 lux; B/W: 0. |
| Multi-Streaming | Simultaneous triple str. |
| Network Protocol & Serv. | IPv4/v6, TCP, UDP, DHCP. |
| ONVIF Compliant | Yes, Profile S, Profile. |
| Operating Humidity | 10% - 95% RH |
| Operating Temperature | -30?C ~ 60?C (-22?F ~ 1. |
| Power Consumption | 6.5 W (PoE) |
| Power Source | DC 12V, PoE Class 3 (IE. |
| Privacy Mask | 4 configurable regions |
| Product Type | Zoom Bullet |
| S/N Ratio | 52 dB |
| Security | IP address filtering, H. |
| Sensor Size | 1/3" |
| Server-based Analytics | Object Line Counting, P. |
| Text Overlay | Yes |
| Vertical Viewing Angle | 55.3? - 15.5? |
| Web Browser | IE 11 |
| Weight | 877g (1.933lb) |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Zoom Application | Camera Installation |
| Zoom Ratio | 4.3x optical |
