AO Smith 9664

B007ATNQZK

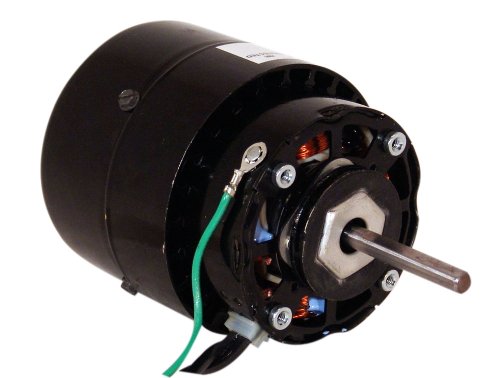

AO Smith 9664 GE 11 Frame 3.3-Inch Frame Diameter 1/20 HP 1550 RPM 208-230-Volt 1-Amp Sleeve Bearing

AO Smith 9664 GE 11 Frame 3.3-Inch Frame Diameter 1/20 HP 1550 RPM 208-230-Volt 1-Amp Sleeve Bearingzoom

Attributes

Key Value
Body Dia.4"
Country of Origin (subj.Mexico
Frame4.0
Full Load Amps1.0
HP1/20
Hz60
Includes8/32 Mounting Studs
Ins. ClassB
ItemUnit Bearing Motor
Length Less Shaft5-1/8"
Max. Ambient Temp.40 Degrees C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Enclosure DesignOpen Air-Over
Motor Mounting PositionAll Angle
Motor Mounting TypeRing
Motor Service Factor1.00
Motor Shaft RotationCCWSE
Motor Sub ApplicationRefrigerator/Freezer
Motor Thermal ProtectionAuto
Nameplate RPM1550
Output Watts35
Overall Length7-1/8"
Phase1
Resilient Ring Dia.1-3/4"
Ring Dia.1-3/4"
Ring to Ring Center4-3/4"
RPM Range1501-1600
Shaft Dia.5/16"
Shaft Length2"
Voltage208-230
Voltage Compatibility115/208-230, 208-230, 2.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1308587141.111In StockCentury141.11 @ 1
thumbzoompatrickssupply.com9664175.01In StockCENTURY175.0 @ 1
