Century 9674

B000CG75BO

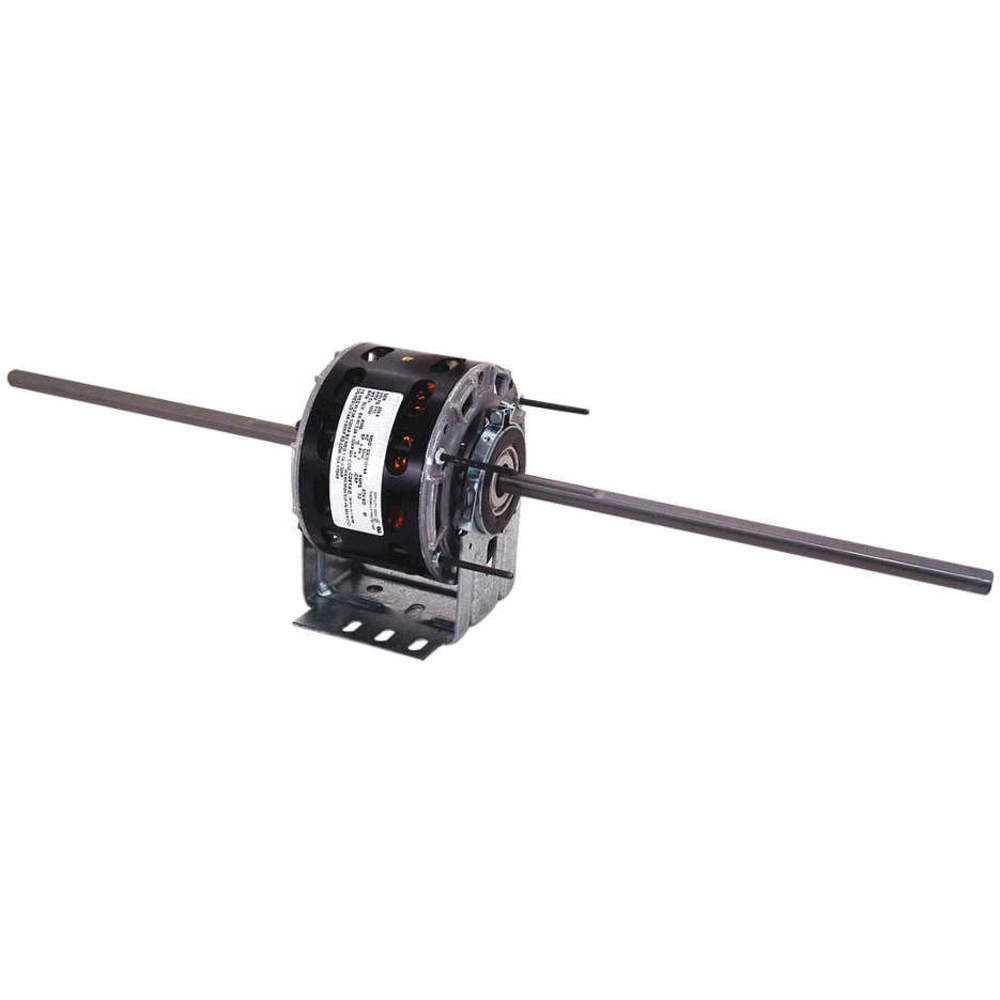

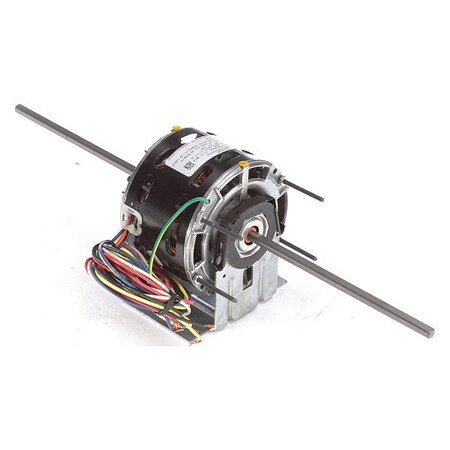

Room Air Cond Mtr, Shad Pol, OAO, 1050 RPM

Room Air Cond Mtr, Shad Pol, OAO, 1050 RPMzoom

Attributes

Key Value
9674 is listed in Centu.A.O. Smith DA3E7293, Da.
Amps2.4/1.6/1.1/0.8
AvailabilityIn Stock, ships within .
BearingsSleeve
Body Dia.5 in
Bolt Circle Dia.4 5/8 in
BrandCentury
Capacitor RequiredNo
Country of Origin (subj.Mexico
Current Stock27
DutyContinuous
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame42Y
Full Load Amps2.4, 1.60, 1.10, 0.80
Full Load Amps @ 50Hz2.4, 1.60, 1.10, 0.80
HP1/15, 1/20, 1/30, 1/50,.
HP @ 50Hz1/15, 1/20, 1/30, 1/50
Hz60/50 Hz, 50/60
IncludesResilient Base
Ins. ClassA
Insulation ClassA
International ShippingNo
ItemRoom Air Conditioner Mo.
Lead Length54 in
Length Less Shaft4 7/16 in
MaterialHAWA
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter5"
Motor Enclosure DesignOpen Air-Over
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeCradle Base
Motor Service Factor1
Motor Shaft DesignFlat
Motor Shaft RotationCWLE
Motor Sub ApplicationRoom Air Conditioner
Motor Thermal ProtectionAuto
MountingCradle/Stud
Mounting Holes4
Mounting Stud Pattern2-5/16 in x 4 in
Mpn9674
MPN9674
Nameplate RPM1,050
No. of Speeds4
Number of Shafts2
Number of Speeds4
Overall Length19 7/8 in
Phase1, Single
Product TypeShaded Pole
Resilient Ring Dia.2 1/2 in
Ring to Ring Center4 1/16 in
RotationDouble Shafted
RPM1050
RPM @ 50Hz1,050 RPM
RPM Range1,001-1,100
Service Factor (SF)1.00
Service Factor @ 50Hz1
Shaft Dia.3/8 in
Shaft Diameter3/8"
Shaft Length8-3/16" x 8-3/16", 8 19.
Ship Weight9 lbs.
SKUCU-3455553437
StandardsCSA Certified, UL Recog.
Stud Quantity4
Stud Size#8-32 x 1-5/8 in
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage115V AC
Voltage @ 50Hz115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115
Weight9 lb
