Century 9719

mpn9719
brandname: Century
manufacturername: Century

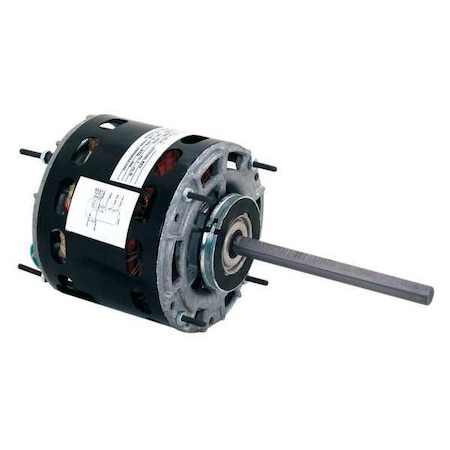

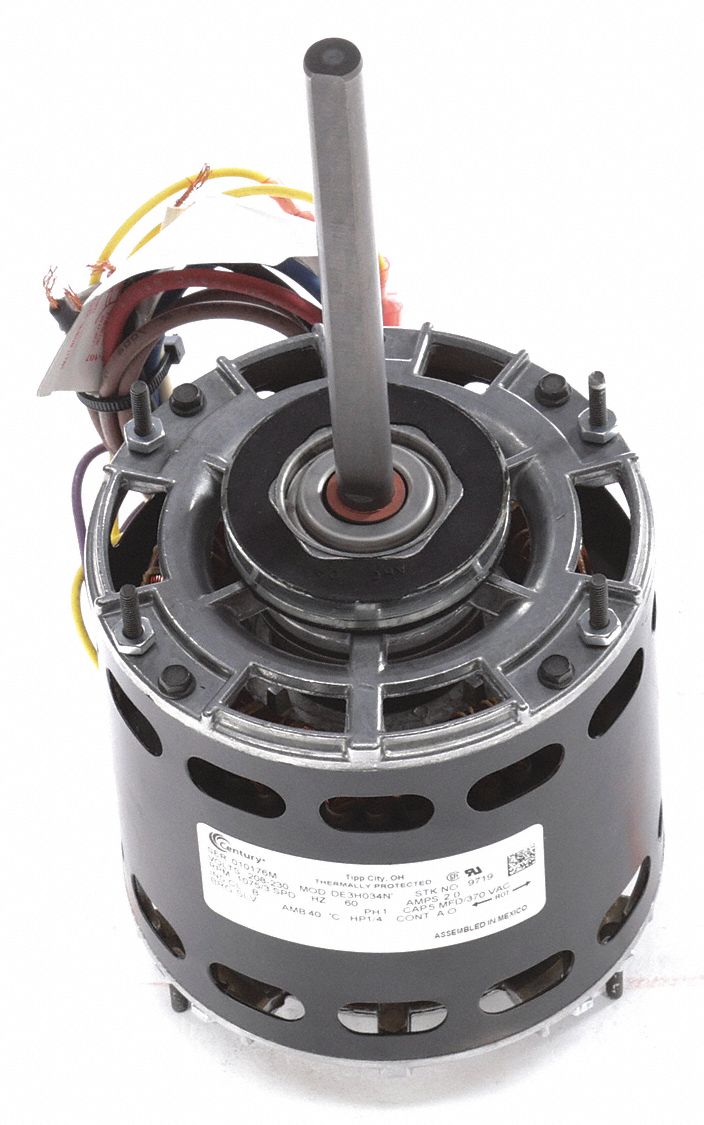

Motor, PSC, 1/4 HP, 1075, 208-230V, 42Y, OAO

Brand: Century
PartNumber: 9719
Model: 9719
PackageQuantity: 1
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
9719 is listed in Centu.	A.O. Smith DE3H034, A.O.
Amps	2
Application	Blowers, Fans and Air C.
Bearings	Sleeve
Body Dia.	5 in
Bolt Circle Dia.	4 5/8 in
Brand	Century
Capacitor	5MFD @ 370VAC Required
Capacitor Required	2MDV4
Country of Origin (subj.	Mexico
Duty	Continuous
Duty Cycle	Continuous
Enclosure Type	OAO (Open Air Over)
Frame	42Y
Full Load Amps	2.00
HP	1/4
Hz	60, 60 Hz
Includes	Resilient Mounting Ring
Ins. Class	B
Insulation Class	B
International Shipping	No
Item	Direct Drive Blower Mot.
Lead Length	13 in
Length Less Shaft	5 11/16 in
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Permanent Split Capacit.
Motor Diameter	5"
Motor Enclosure Design	Open Air-Over
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Ring
Motor Service Factor	1
Motor Shaft Design	Flat
Motor Shaft Rotation	CW/CCW
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting	Band/Ring/Stud
Mounting Holes	4
Mounting Stud Location	Both Ends
Mounting Stud Pattern	2-5/16 in x 4 in
Mpn	9719
Nameplate RPM	1,075
No. of Speeds	3
Number of Shafts	1
Number of Speeds	3
Overall Length	11 1/2 in
Phase	1, Single
Product Type	PSC (Permanent Split Ca.
Resilient Ring Dia.	2 1/2 in
Ring to Ring Center	5 5/16 in
Rotation	Reversible
RPM	1075
RPM Range	1,001-1,100
Service Factor (SF)	1.00
Shaft Dia.	1/2 in
Shaft Diameter	1/2"
Shaft Length	5-3/4", 5 13/16 in
Ship Weight	12 lbs.
SKU	ZO-G1446295
Standards	CSA Certified, UL Recog.
Stud Quantity	4
Stud Size	#8-32
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
UPC	00786674009814
Usable @ 200V	No
Usable @ 208V	Yes
Voltage	208-230V AC
Voltage Compatibility	115/208-230V AC, 200-23.
Volts	208-230
Weight	12 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Voomi Supply	9719	14.99	1	In Stock		Century Motors		14.99 @ 1
AmazonTP	B00BXX2286	196.34	1	In Stock	5	CENTURY		196.34 @ 1
ktool.net	9719	215.67	1	In Stock		Century		215.67 @ 1
sustainablesupply.com	C1561829	228.04	1	In Stock		Century	11.25	228.04 @ 1
patrickssupply.com	9719	245.0	1	In Stock		CENTURY		245.0 @ 1
Zoro	G1446295	251.5	1	In Stock	26	Century	11.25	251.5 @ 1
emotorpro.com	9719	266.2	1	In Stock		Century	12.0	266.2 @ 1
simsupply.com	ZO-G1446295	271.54	1	In Stock		Century		271.54 @ 1
industrialstores.com	9719	283.39	1	In Stock	19	Century Motors by Regal Beloit		283.39 @ 1
midwestapplianceparts.com	9719-AO-P	284.61	1	In Stock		AO Smith		284.61 @ 1
