- mpnC04416
- brandname: CLEVELAND
- manufacturername: CLEVELAND

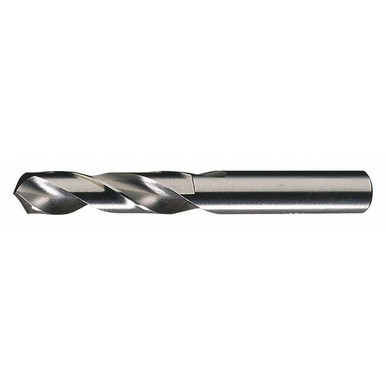

Cleveland 2120 Style High Speed Steel Short Length Drill Bit, Uncoated (Bright), Round Shank, 118 Degree Point, Wire Size #36 (Pack of 10)
- Brand: Cleveland
- PartNumber: C04416
- Size: #36
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Aluminum, . |
| Application | For Drilling Alloy Stee. |
| Bit Dia. | #36 |
| Brand | Cleveland |
| Construction | General Purpose |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 3 |
| Cutting Depth | 13/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.1065, 0.1065" / 2.71mm |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter Wire | 36 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | #36 |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.032 in |
| Drill Size - Decimal In. | 0.1065 in |
| Drill Size - Wire | #36 |
| Drilling Length | 0.813" |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 13/16 in |
| Flute Type | Right Spiral, Spiral |
| Grade | General Purpose |
| Hand of Spiral Cut | RHS / RHC |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Length of Flute | 0.8125" / 20.64mm |
| List Number | 2120 |
| List Style | 2120 |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | General Purpose |
| Maximum Drilling Depth | 13/16 in |
| Measurement System | Wire |
| Mpn | C04416 |
| Number of Flutes | 2 |
| Number of Pieces | 0 |
| Overall Length | 1-13/16 in, 1 13/16 in,. |
| Point | 118? Radial |
| Point Angle | 118 deg |
| Point Type | Radial |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N |
| Series | 2120 |
| Shank | Straight |
| Shank Dia. | 3/32 in |
| Shank Length | 1 in |
| Shank Shape | Straight |
| Shank Size | 0.1065 in Dia x 1 in L,. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sizes Included | #36 |
| SKU | ZO-G2993903 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M-1993 |
| Style | 2120 |
| SubCategory | Machining |
| Surface Condition | Bright |
| Tool Size | #36 |
| Type | General Purpose |
| UPC | 697334044161 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6109703 | 1.61 | 22 | 10 | | Cleveland | | 1.61 @ 22 |
 | Megadepot | C04416 | 1.99 | 1 | 10 | | Cleveland | | 1.99 @ 10 |
 | usmegastore.com | C04416 | 2.13 | 1 | 10 | | Cleveland | | 2.13 @ 10 |
 | Zoro | G2993903 | 2.25 | 1 | 10 | | Cleveland | | 2.25 @ 10 |
 | Guardian | 63706360 | 3.5 | 1 | 10 | | Cleveland | | 3.5 @ 10 |
 | National Supply Network | 63706360 | 3.659 | 10 | 10 | | Cleveland | | 3.659 @ 10 |
 | simsupply.com | ZO-G2993903 | 8.76 | 1 | 10 | | Cleveland | | 8.76 @ 10 |
| Amazon | B00075EOB4 | 17.79 | 1 | 10 | | Cleveland Twist Drill | | 17.79 @ 10 |
