- mpn4Z143
- brandname: Dayton
- manufacturername: Dayton

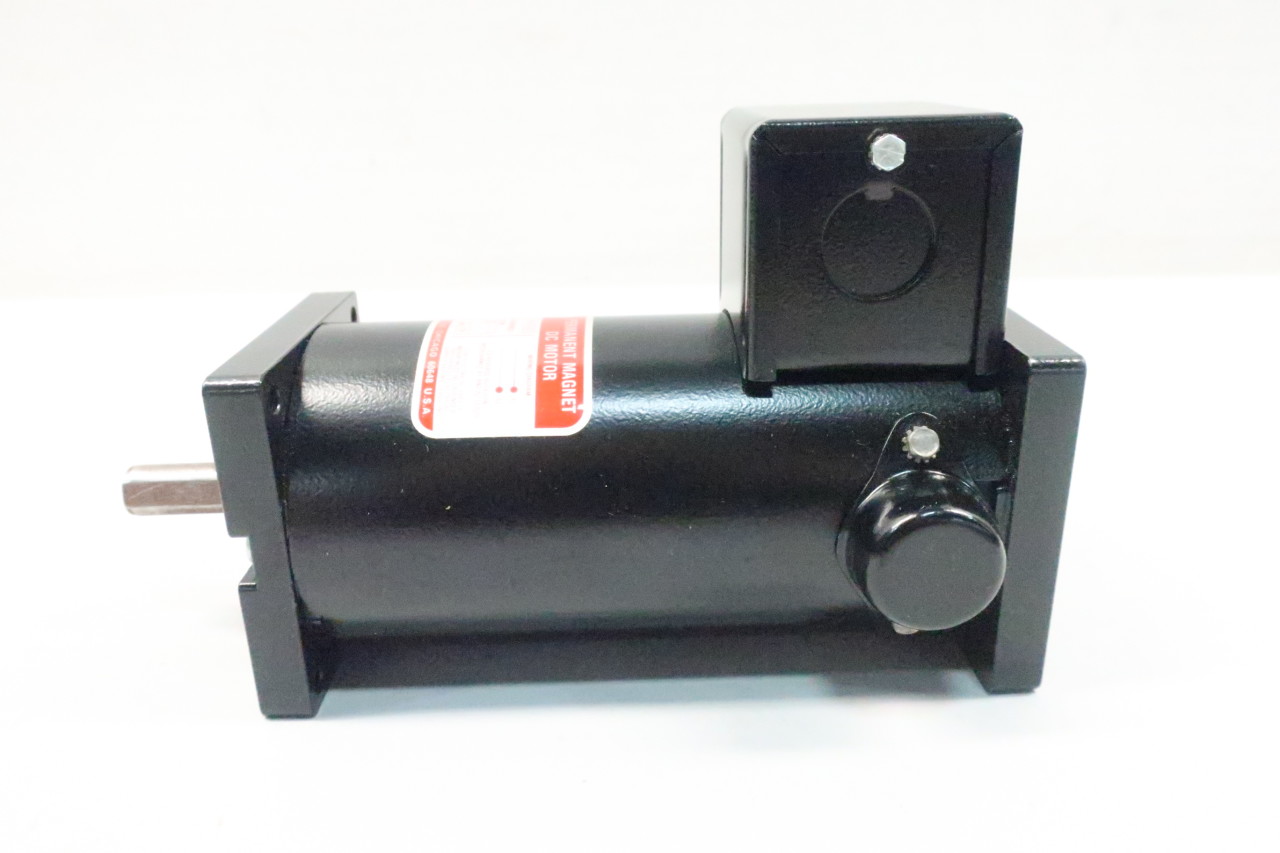

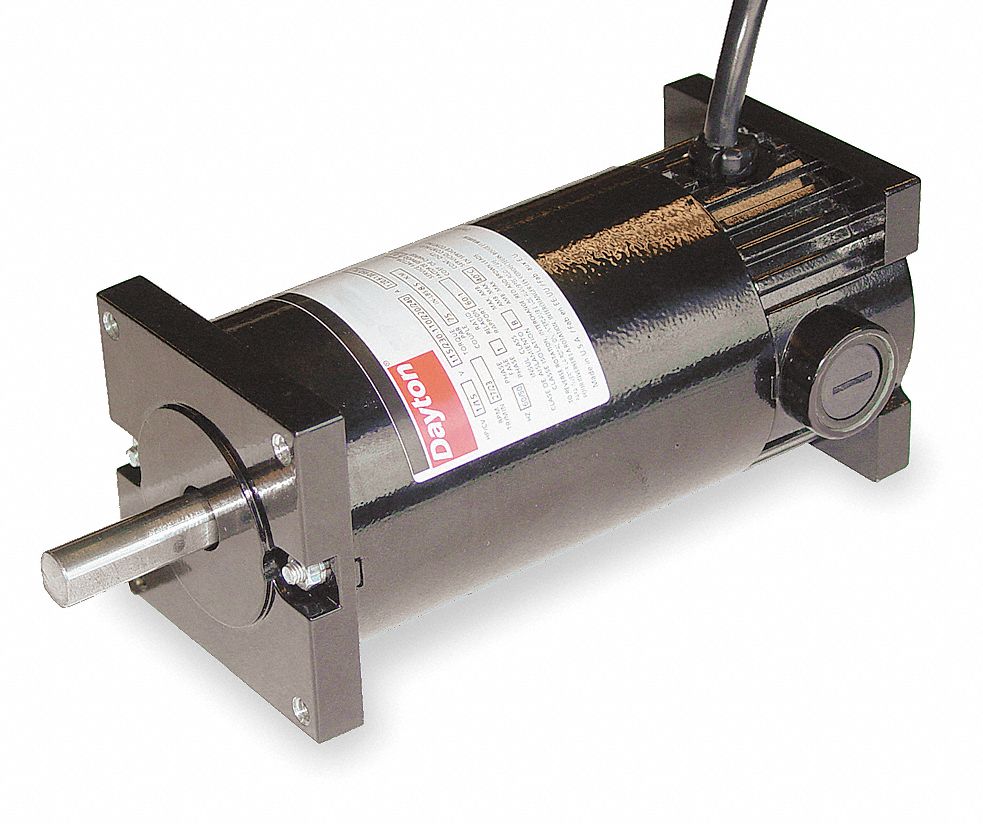

DC Motor, PM, TENV, 1/7 HP, 1750rpm, 12/24VDC
- PackageQuantity: 1
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Amps | 14.0 |
| Base Mounting O.C. | 6-7/16 x 2 in |
| Bearings | Ball |
| Bolt Circle Dia. | 5 15/16 in |
| Brand | Dayton |
| Brush Type | Carbon |
| Cross Reference | 4Z529 |
| Current Stock | 197 |
| Duty Cycle | Continuous |
| Enclosure Type | TENV (Totally Enclosed . |
| Face Mounting O.C. | 2-5/8 x 2-5/8 |
| Frame | Non Standard, Non-Stand. |
| Full Load Amps | 14.0 A |
| Full Load Torque | 5.6 in-lb |
| HP | 1/7, 1/4, 1/4, 1/7 |
| Ins. Class | B |
| Insulation Class | B |
| International Shipping | No |
| Item | DC Permanent Magnet Mot. |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 6 7/8 in |
| Manufacturers Warranty . | 1 yr |
| Max. Ambient Temp. | 40 Degrees C, 40 Degre. |
| Maximum Ambient Tempera. | 40? C |
| Motor Application | General Purpose |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Nonven. |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Shell Length | 6-7/8" |
| Motor Thermal Protection | None |
| Mounting | C-Face/Rigid |
| Mpn | 4Z143 |
| Nameplate RPM | 1,750/3,900 |
| Nominal Efficiency | 70.3 % |
| Overall Length | 8-3/8", 8 3/8 in |
| Phase | DC |
| Product Type | DC |
| Removable Base | Yes |
| Rotation | Reversible, CW/CCW |
| RPM | 1750/3900 |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" |
| Shaft Length | 1-1/2", 1 1/2 in |
| Ship Weight | 9 lbs. |
| SKU | ZO-G2210424 |
| Standards | UL Recognized (E61772) |
| Stud Quantity | 4 |
| SubCategory | Motors/Dc Motors |
| Thermal Protection | None |
| UPC | 190735340073 |
| Voltage | 12/24V DC |
| Voltage Compatibility | 12V DC, 24V DC |
| Volts | 12/24VDC |
| Weight | 25 lb |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B000TKAH04 | 196.67 | 1 | In Stock | 2 | DAYTON | | 196.67 @ 1 |
 | NRI Industrial | D713521 | 211.76 | 1 | In Stock | | DAYTON | | 211.76 @ 1 |
 | Zoro | G2210424 | 242.99 | 1 | 47 | | Dayton | 8.5 | 242.99 @ 1 |
 | sustainablesupply.com | C1562556 | 245.01 | 1 | In Stock | | Dayton | 8.5 | 245.01 @ 1 |
 | simsupply.com | ZO-G2210424 | 263.99 | 1 | 197 | | Dayton | | 263.99 @ 1 |
 | Raptor Supplies | AE2QRT | 302.1426135 | 1 | In Stock | | DAYTON | | 302.1426135 @ 1 |
| grainger.ca | DTN4Z143 | 354.17155382 | 1 | In Stock | | DAYTON | 8.92 | 354.17155382 @ 1 |
| emotorpro.com | 4Z143 | 402.32 | 1 | In Stock | | Dayton | 9.0 | 402.32 @ 1 |
