- mpn4Z730
- brandname: DAYTON
- manufacturername: DAYTON

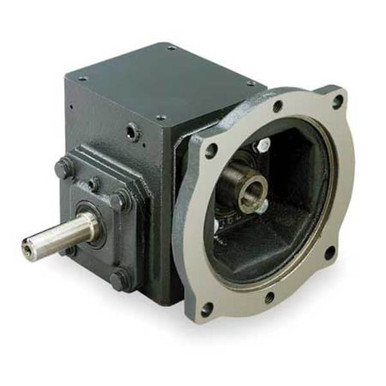

Speed Reducer, C-Face, 56C, 60:1
- Brand: Dayton
- PartNumber: 4Z730
- Model: 4Z730
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Bearings | Ball |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 9 |
| Dimension U | 1 1/4 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56C |
| Gear Material | Hardened Steel, Mangane. |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1750 rpm, 1750 |
| Input Shaft Diameter | 5/8 in |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade |
| Max. Input HP | 3/4, 0.75 |
| Max. Output Torque | 1,021 in.-lb., 1,021 in. |
| Max. Torque (In.-Lbs.) | 1021 |
| Mounting | Any Position Except Inp. |
| Mpn | 4Z730 |
| NEMA/IEC Frame | 56C |
| Nominal Output RPM | 29, 29 RPM |
| Nominal Ratio | 60:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 1 1/4 in |
| Output Shaft Dia. (In.) | 1.25 |
| Output Shaft Diameter | 1 1/4 in |
| Output Torque @ 1 HP | 1,021 in-lbs, 1,021 in-. |
| Output Torque @ 1/2 HP | 407 in-lb |
| Output Torque @ 1/2 HP . | 653 |
| Output Torque @ 1/3 HP . | 407 |
| Output Torque @ 1/40 HP | 3,600 in-lbs |
| Output Torque @ 3/4 HP | 653 in-lbs |
| Output Torque @ 3/4 HP . | 1021 |
| Overhung Load | 1,300 lb, 1300 lb. |
| Overhung Load (Lb.) | 1300 |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Reducer Model No. | 84080 |
| Rotation | Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Assembly | Left |
| Shaft Orientation | Right Angle |
| Ship Weight | 55 lbs. |
| Single/Double Output/Un. | Single Output |
| SKU | ZO-G1531661 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735340943 |
| Worm Center Distance | 2.62" |
| Worm Gear Material | Bronze |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | WWG4Z730 | 645.14717922 | 1 | In Stock | | DAYTON | 54.05 | 645.14717922 @ 1 |
 | Zoro | G1531661 | 1409.99 | 1 | 11 | | Dayton | 54.05 | 1409.99 @ 1 |
| AmazonTP | B000LEWH9W | 1500.74 | 1 | In Stock | 2 | Dayton | | 1500.74 @ 1 |
 | simsupply.com | ZO-G1531661 | 1785.75 | 1 | 9 | | Dayton | | 1785.75 @ 1 |
 | sustainablesupply.com | C2776719 | 1849.81 | 1 | In Stock | | Dayton | 54.05 | 1849.81 @ 1 |
| emotorpro.com | 4Z730 | 2528.86 | 1 | In Stock | | Dayton | 55.0 | 2528.86 @ 1 |
 | Raptor Supplies | AE2RAJ | 3487.897413 | 1 | In Stock | | DAYTON | | 3487.897413 @ 1 |
