Dwyer 475-7-FM

mpn475-7-FM
brandname: Dwyer
manufacturername: Dwyer

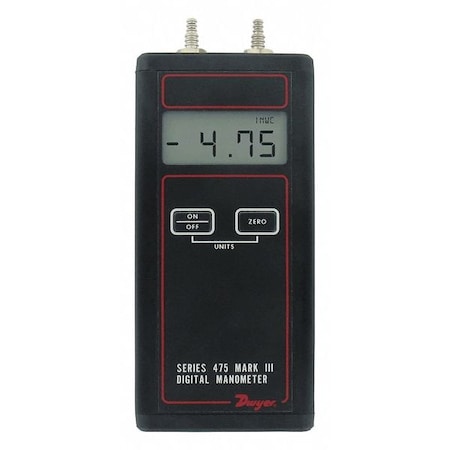

Dwyer 475-7-FM Intrinsically Safe Handheld Digital Manometer

Dwyer 475-7-FM Intrinsically Safe Handheld Digital Manometer

zoom

Brand: Dwyer
PartNumber: 475-7-FM
Model: 475-7-FM
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dwyer
Label: Dwyer

Attributes

Key	Value
Accuracy	+/- 0.5% FS, 60 to 78 F.
Agency Approvals	CE, FM
Auto Power Off	Yes
Battery Type	9V
Calibration Certificate.	No
Compensated Temperature.	32 to 104 F, 32 to 104?.
Connection Size	1/8 in
Connections	Two barbed connections .
Digital	Yes
Digital Display Features	4 Digit LCD
Display	0.42" (10.6 mm) 4-digit.
Family Series	Dwyer Instruments Senso.
For Tubing Diameter	1/8 in
For Use With	AV Calculator, Dwyer Pi.
Gross Weight	0 lbs
Housing Height	5.875 in
Housing Length	2.812 in
Housing Material	Aluminum
Item	Handheld Digital Manome.
Item Number	475-7-FM
Low Battery Indicator	Yes
Manufacturer	Dwyer Instruments
Manufacturer Part Number	475-7-FM
Maximum Pressure	150 psig
Minimum Pressure	0 psi
Net Weight	0 lbs
Number of Connections	2
Operating Pressure Range	0 to 100 psi
Overall Height	6.5 in
Overall Length	0.906 in
Overall Width	2.81 in
Power Requirements	9 V alkaline battery, i.
Pressure Hysteresis	+/- 0.1% FS, ?0.1% of f.
Pressure Range	0-100 psi
Pressure Resolution	0.1 psi
Process Connection Size	1/8 in
Range	0 - 100.0 PSI
Safety Rating	Class I Div. 2 Group A,.
Service	Air and compatible comb.
Standards	CE, FM, CE and FM appro.
Storage Temperature Lim.	-4 to 176?F (-20 to 80?.
Temperature Limits	0 to 140 F, 0 to 140?F .
Type	Manometer
Type of Pressure	Differential, Negative,.
Weight	0.675 lb, 10.8 oz. (306.
Wetted Materials	Contact Customer Servic.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	cappusa.com	1003157	213.75	1	In Stock		Dwyer		213.75 @ 1
	Zoro	G0633066	219.99	1	In Stock		Dwyer	1.0	219.99 @ 1
	Newark	82AK9426	234.0	1	In Stock		DWYER		234.0 @ 1
	National Supply Network	497966	252.6	1	In Stock		Dwyer		252.6 @ 1
	us.rs-online.com	70334506	252.89	1	In Stock		Dwyer Instruments		252.89 @ 1
	Megadepot	475-7-FM	255.5	1	In Stock		Dwyer	0.675	255.5 @ 1
	Solutions Direct	475-7-FM	256.37	1	In Stock		Dwyer Instruments		256.37 @ 1
	Galco	475-7-FM-DWYR	264.71	1	In Stock		Dwyer Instruments		264.71 @ 1
	industrialzone.com	475-7-FM	269.0	1	In Stock		Dwyer	1.0	269.0 @ 1
	usmegastore.com	475-7-FM	272.1	1	In Stock		Dwyer	0.675	272.1 @ 1
	alliedcontrols.com	475-7-FM	272.5	1	In Stock		Dwyer		272.5 @ 1
	blackhawksupply.com	475-7-FM	278.33	1	In Stock		Dwyer		278.33 @ 1
	midwestapplianceparts.com	475-7-FM-DW-P	295.97	1	In Stock		Dwyer		295.97 @ 1
	bscsource.com	4757FM	479.09	1	In Stock		Dwyer		479.09 @ 1
	Guardian	00497966	572.78	1	In Stock		Dwyer		572.78 @ 1
