- mpn328626
- brandname: Greenfield Threading
- manufacturername: Greenfield Threading

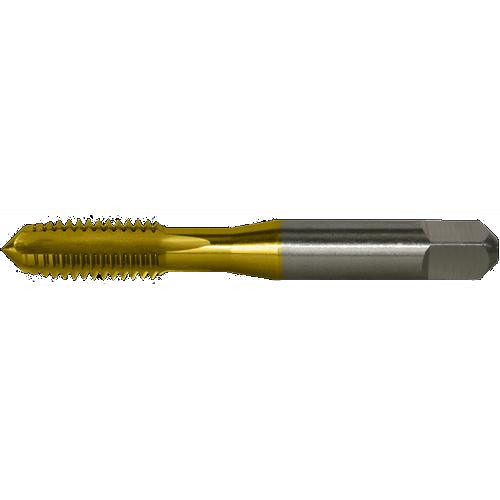

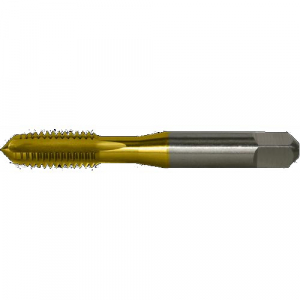

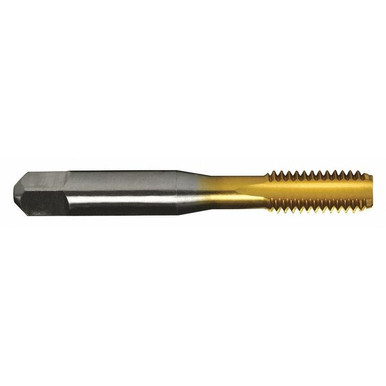

Tap,Inch,M10-1.25 Thread Size,TiN
- Brand: Greenfield Threading
- PartNumber: 328626
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Threading
- Label: Greenfield Threading
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | 8.90 mm |
| 65% Thread Drill Size | 11/32 in |
| 75% Thread Drill Size | 8.50 mm |
| Application | Blind Hole |
| Brand | Greenfield Threading |
| Chamfer Type | Bottoming |
| Class of Fit | 2B |
| Color | Grey |
| Current Stock | 25 |
| Cutting Direction | Right Hand |
| Diameter | 0.3937" |
| Finish/Coating | TiN Coated |
| Flute Type | Straight |
| Hand of Cut | Right Hand Cut |
| International Shipping | No |
| Item | Straight Flute Hand Tap |
| Length of Cut | 2 in |
| Material | HSS, High-Speed Steel, . |
| Material Application | Cast Iron, Steel and St. |
| Measurement System | Metric |
| Mpn | 328626 |
| Number of Flutes | 4 |
| Number of Pieces | 1 |
| Overall Length | 2 15/16 in, 74.61mm, 2.. |
| Overall Length (Metric) | 74.61mm |
| Package Quantity | 6 per case |
| Pitch Diameter Limit | D6 |
| Product Type | Straight Flute Hand Tap |
| Series | HTGP-TN |
| Shank Configuration | Straight with Square, S. |
| Shank Dia. | 9.67mm |
| Shank Diameter | 0.381 in |
| Shank End | Square |
| Shank Length | 1 11/16 in |
| Shank Size | 0.381", 0.381 in |
| Shank Size (Metric) | 9.68mm |
| Shank Square Length | 0.4375" |
| Shank Square Length (Me. | 11.11mm |
| Shank Square Width | 0.286" |
| Shank Square Width (Met. | 7.26mm |
| SKU | ZO-G1824212 |
| Square Size | 7.26 mm |
| Standards | USCTI Table 302A |
| Style | HTGP-TN |
| SubCategory | Machining/Threading |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Tap Chamfer | Bottoming |
| Tap Construction | Bottoming, Standard |
| Tap Dimension Type | Metric |
| Tap Finish | TiN |
| Tap Length Standard | USCTI |
| Tap Limit | D6 |
| Tap Material | High Speed Steel |
| Tap Size | M10 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M10-1.25 |
| Tap Thread Type | Metric Coarse |
| Thread | M10x1.5 |
| Thread Creation | Thread Cutting |
| Thread Direction | Right Hand |
| Thread Form | Metric |
| Thread Length | 1.25 in, 1.25", 31.75mm. |
| Thread Length (Metric) | 31.75mm |
| Thread Limit | D6 |
| Thread Pitch | 1.5 |
| Thread Size | M10, M10x1.5 |
| Thread Standard | Ground/Coarse |
| Thread Tolerance | 2B |
| Tool Size | M10x1.5 |
| Type | General Purpose Standard |
| UPC | 093367286262 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | usmegastore.com | 328626 | 12.14 | 1 | In Stock | | Greenfield Threading | | 12.14 @ 1 |
 | Megadepot | 328626 | 12.14 | 1 | In Stock | | Greenfield Threading | | 12.14 @ 1 |
 | heavydutydepot.com | 328626 | 12.14 | 9 | In Stock | | Greenfield Threading | | 12.14 @ 9 |
 | MRO Supply | 6108272 | 12.23 | 3 | In Stock | | Greenfield Threading | | 12.23 @ 3 |
 | rshughes.com | 933672-86262 | 13.48 | 6 | In Stock | | Greenfield Industries | | 13.48 @ 6 |
 | Zoro | G1824212 | 13.49 | 1 | 38 | | Greenfield Threading | 0.08 | 13.49 @ 1 |
 | sustainablesupply.com | C2782639 | 19.47 | 1 | In Stock | | Greenfield Threading | 0.08 | 19.47 @ 1 |
 | simsupply.com | ZO-G1824212 | 21.51 | 1 | 25 | | Greenfield Threading | | 21.51 @ 1 |
