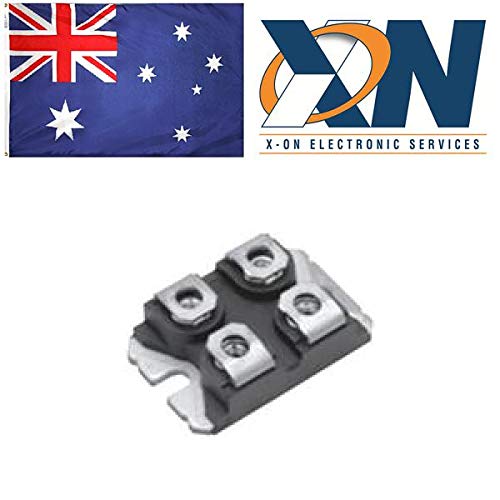

IXFN82N60P

mpnIXFN82N60P
brandname: IXYS
manufacturername: IXYS

MOSFET DIODE Id82 BVdass600

PartNumber: IXFN82N60P
Model: IXFN82N60P
PackageQuantity: 1
Manufacturer: IXYS
Label: IXYS

Attributes

Key	Value
Alternate Part No.	747-IXFN82N60P
Base Product Number	IXFN82
Brand	IXYS
Case	SOT227B
Category	Discrete Semiconductor .
Channel Mode	Enhancement
Configuration	Single Dual Source
Current - Continuous Dr.	72A (Tc)
Description	MOSFET N-CH 600V 72A SO.
Detailed Description	N-Channel 600 V 72A (Tc.
Digi-Key Part Number	IXFN82N60P-ND
Drain current	72A
Drain to Source Voltage.	600 V
Drain-source voltage	600V
Drive Voltage (Max Rds .	10V
Electrical mounting	screw
Fall Time	24 ns
FET Feature	-
FET Type	N-Channel
Forward Transconductanc.	50 S
Gate charge	240nC
Gate Charge (Qg) (Max) .	240 nC @ 10 V
Gate-source voltage	?40V
Id - Continuous Drain C.	72 A
Input Capacitance (Ciss.	23000 pF @ 25 V
Kind of channel	enhanced
Manufacturer	IXYS
Manufacturer Part No.	IXFN82N60P
Manufacturer Product Nu.	IXFN82N60P
Manufacturer Standard L.	73 Weeks
Maximum Operating Tempe.	+ 150 C
Mechanical mounting	screw
Mfr	IXYS
Minimum Operating Tempe.	- 55 C
Mounting Style	SMD/SMT
Mounting Type	Chassis Mount
On-state resistance	75m?
Operating Temperature	-55?C ~ 150?C (TJ)
Package	Tube
Package / Case	SOT-227-4, miniBLOC
Package/Case	SOT-227B-4
Packaging	Tube
Pd - Power Dissipation	1.04 kW
Polarisation	unipolar
Power dissipation	1.04kW
Power Dissipation (Max)	1040W (Tc)
Product Category	MOSFET
Product Status	Active
Pulsed drain current	200A
Qg - Gate Charge	240 nC
Rds On (Max) @ Id, Vgs	75mOhm @ 41A, 10V
Rds On - Drain-Source R.	75 mOhms
Reverse recovery time	200ns
Rise Time	23 ns
Semiconductor structure	single transistor
Series	IXFN82N60, HiPerFET?, P.
Supplier Device Package	SOT-227B
Technology	HiPerFET?,, MOSFET (Met.
Tradename	Polar, HiPerFET
Transistor Polarity	N-Channel
Type of module	MOSFET transistor
Typical Turn-Off Delay .	79 ns
Unit Weight	38 g
Vds - Drain-Source Brea.	600 V
Vgs (Max)	?30V
Vgs - Gate-Source Break.	30 V
Vgs th - Gate-Source Th.	5 V
Vgs(th) (Max) @ Id	5V @ 8mA

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Freelance Electronics	IXFN82N60P	16.6106	1	In Stock	IXYS	16.6106 @ 1
Future Electronics	5352711	26.604	10	40	IXYS	26.604 @ 10
Digi-Key	1652006	39.86	1	In Stock	IXYS	39.86 @ 1
TME	IXFN82N60P	42.09	1	In Stock	IXYS	42.09 @ 1
swatee.com	IXFN82N60P	45.79	1	10	IXYS	45.79 @ 1
RS Delivers	194-130	52.596	1	In Stock	IXYS	52.596 @ 1
