Molex 559350410

B00O0IPJPY

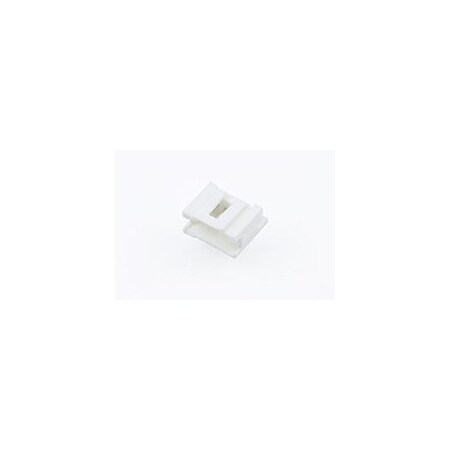

MOLEX - 55935-0410 - Pin Header, Wire-to-Board, 2 mm, 1 Rows, 4 Contacts, Through Hole Right Angle

MOLEX - 55935-0410 - Pin Header, Wire-to-Board, 2 mm, 1 Rows, 4 Contacts, Through Hole Right Anglezoom

Attributes

Key Value
Alternate Mfr Part Numb.55935-0410
ApplicationsGeneral Purpose, Indust.
Base Product Number055935
CategoryConnectors, Interconnec.
ColorNatural
Connector TypeHeader
Contact FinishTin Plated
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating0.144" (3.66mm)
Contact Length - Post0.126" (3.20mm)
Contact Material-
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Current Rating (Amps)-
DescriptionCONN HEADER R/A 4POS 2MM
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM12299-ND
Family NameMicroClasp
Fastening TypeLatch Holder
FeaturesBoard Guide
Flammability RatingUL 94V-0
Hole Center to Center2 mm
Ingress Protection-
Insulation ColorNatural
Insulation Height0.264" (6.70mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerMolex
Manufacturer Product Nu.0559350410
Manufacturer Standard L.14 Weeks
Mated Stacking Heights-
MaterialPolyester
Material Flammability R.-
Max. Temp.105?C
Max. Voltage250V AC/DC
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Circuits4
Number of Contacts4
Number of Positions4
Number of Positions Loa.All
Number of Rows1
Operating Temperature-
OrientationRight Angle
Overall Contact Length-
PackageTray
Package Quantity1
Pitch2.00 mm (0.079")
Pitch - Mating0.079" (2.00mm)
Plating MaterialTin
Primary TypeBoard Mount
Product StatusActive
Row Spacing - Mating-
SeriesMicroClasp 55935, 55935.
ShroudingShrouded - 4 Wall
Special FeaturesNot Low-Halogen
StandardsUL E29179
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationKinked Pin, Solder
TypeRight Angle Header
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomMOLEX 55935-04100.1331100Molex0.133 @ 100
Avnet05593504100.16436002585Molex0.164 @ 3600
Onlinecomponents.com55935-04100.205170100Molex0.205 @ 170
thumbzoomDigi-Key32634130.306129249Molex0.306 @ 100
thumbzoomNewark26R13810.3216382MOLEX0.32 @ 100
HotendaH13676720.37931100Molex0.3793 @ 100
TMEMX-55935-04100.44410100MOLEX0.444 @ 100
us.rs-online.com703725540.46461100Molex Incorporated0.4646 @ 100
RS Delivers188-0520.51241420Molex0.5124 @ 100
thumbzoomRadwell55935-04101.21100MOLEX1.2 @ 100
thumbzoomZoroG7769374135.01100Molex135.0 @ 100
