Walter Tools VNMA160408-RK5 WKK20S

mpnVNMA160408-RK5 WKK20S
brandname: WALTER VALENITE
manufacturername: WALTER VALENITE

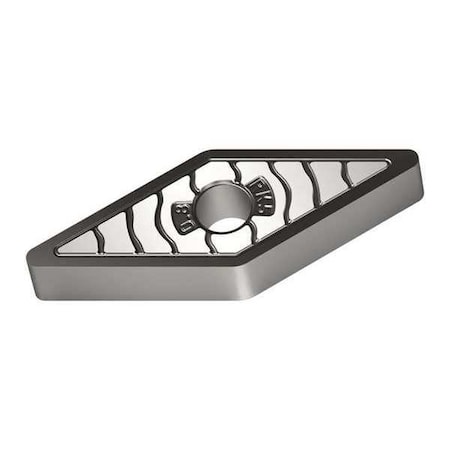

Diamond Turning Insert,VNMA,Carbide

Diamond Turning Insert,VNMA,Carbide

zoom

Brand: Walter Tools
PartNumber: VNMA160408-RK5 WKK20S
Manufacturer: WALTER VALENITE
Label: WALTER VALENITE

Attributes

Key	Value
ANSI Code	VNMA332-RK5 WKK20S
ANSI Number	VNMA331
Brand	WALTER VALENITE
Cast Iron (K) Compatibi.	Yes
Catalog Page	N/A
Chip-Breaker	Yes
Chip-Breaker Code	RK5
Clearance Angle	0 Degrees, 0 ?
Coating	CVD
Corner Radius	2, 1/32 in
Country of Origin	Germany
Country of Origin (subj.	Germany
Cutting Application	Turning
Cutting Direction	Neutral
Cutting Edge Length	16.00mm
Depth of Cut	0.80 to 4.00mm
Finish - Machining	TiCN+Al2O3+TiCN
For Use With	Toolholders, Boring Bars
Grade	WKK20S
Hardened (H) Compatibil.	No
Included Angle	35 Degrees, 35 ?
Inscribed Circle	3/8 in, 3
Insert Application	Roughing
Insert Code	VNMA332
Insert Holding Type	Straight Hole
Insert Material	Carbide
Insert Shape	Diamond
Insert Size	332
Insert Style	VNMA
Insert Thickness	0.1880"
ISO Number	VNMA160408-RK5 WKK20S
Item	Diamond Turning Insert
Item?	53VK02
Manufacturer Grade	WKK20S
Material	Carbide
Material - Machining	Carbide
Measurement System	Fractional Inch
Mfr. Model?	VNMA160408-RK5 WKK20S
Mounting Hole Dia.	0.150"
Mounting Style	Clamp
No. of Edges	2
Non Ferrous (N) Compati.	No
Nose Radius	0.0310"
Number of Cutting Edges	2
Primary Material Applic.	Cast Iron
Primary Material Applic.	K
Rake	Negative
Relief Angle	0 Degrees
Shape	Rhombic
Stainless (M) Compatibi.	No
Steel (P) Compatibility	Yes
Super Alloy (S) Compati.	No
Thickness	3, 3/16 in
UNSPSC	23171618
Workpiece Compatibility	Cast Iron (K), Steel (P)

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G7928700	25.0	10	10		Walter Valenite	0.22	25.0 @ 10
	Grainger	53VK02	27.64	1	10		WALTER VALENITE		27.64 @ 10
