Bussmann KRP-C-1100SP

B009RUCGQ0

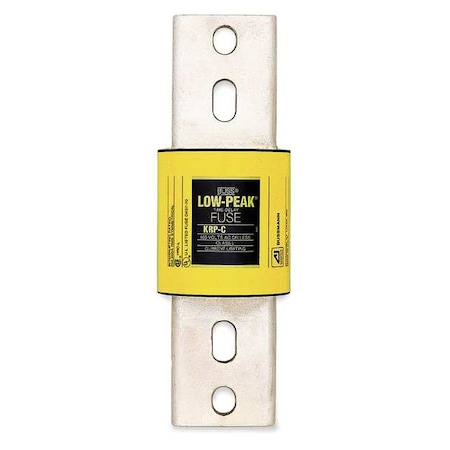

Bussman Low-Peak TIME-DELAY 300K KRP-C-1100SP

Bussman Low-Peak TIME-DELAY 300K KRP-C-1100SPzoom

Attributes

Key Value
AC Voltage Rating600V AC
Alarm ContactNo
Amperage Rating1100
Amps1,100 A, 1100
ApplicationInd Facilities & Factor.
ApplicationsElectrical, Industrial
Approval AgencyCE, CSA, UL
ApprovalsCE, CSA, UL
Body MaterialFiberglass/Melamine
Body StyleBolt-On
Body TypeCartridge
BrandEaton Bussmann series
Breaking Capacity @ Rat.300kA AC, 100kA DC
Catalog NumberKRP-C-1100SP
CategoryCircuit Protection
CharacteristicTime Delay
ClassClass L, L
ConnectionBolted blade end x bolt.
Country of OriginMultiple, MX - Mexico
Current Rating1,100 A
Current Rating (Amps)1.1kA
DC Voltage Rating300V DC
Diameter2-13/32"
ECCNEAR99
ElementDual
Equivalent Brand and Se.Bussmann KRP-C, Littelf.
Equivalent SeriesA4BQ, A4BY, KLPC, KRP-C
Family SeriesBussmann Fuses, KRP-C S.
Features-
Fits Fuse Block StyleNonrejection
Fuse Amps1100A
Fuse Interrupt Rating300 kAIC at 600 Vac|100.
Fuse Size10-3/4" L x 2-13/32" dia
Fuse SpeedTime Delay
Fuse TypeCartridge
Fuse Voltage Rating600VAC/300VDC
Gross Weight0.001 lbs
Height2.78 in.
Indicating/Non-Indicati.Non-Indicating
Interrupt Rating300 kAIC at 600 Vac|100.
Interrupt Rating DC300 kA
ItemFuse
Item NumberKRP-C-1100SP
Item TypeFuse
Length10-3/4", 10.75 in.
Length (Straight Wirewa.10 3/4 in
Made in USANo
ManufacturerEaton Bussmann, Bussmann
Manufacturer Part NumberKRP-C-1100SP
MaterialMelamine, Melamine Glas.
MfrEaton - Bussmann Electr.
Mounting typeBolt-On
Mounting TypeBolt Mount
Net Weight0 lbs
Operating Temperature-
PackageBulk
Package / CaseCylindrical, Blade Term.
Package TypeCenter Bolted
Product SeriesKRP-C
Product StatusActive
Rated Voltage600V ac, 300V dc
Rejection / NonrejectionNonrejection
Rejection/Non-RejectionNon-Rejection
Response TimeSlow Blow, 4, 4 sec at .
RoHSYes
SeriesLOW-PEAK? KRP-C, KRP-C
ShapeRectangular
Size2.50 In Diameter X 10.7.
Size / Dimension2.500" Dia x 3.750" L (.
Special FeaturesSilver Plated End Bell
SpeedTime Delay
StandardCE Marked,RoHS Compliant
StandardsCSA, UL
Sub BrandBussmann Series
Terminal TypeKnife Blade
Trip IndicatorNo
TypeCurrent Limiting, Curre.
UNSPSC39121626
UPC051712178396
Visual IndicationNonindicating
Voltage (AC)600 VAC
Voltage (DC)300 VDC
Voltage Rating600 VAC/300 VDC, 600 Va.
Voltage Rating - AC600 V
Voltage Rating - DC300 V
Width2.78 in.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomEATON KRP-C-1100SP1405.281In StockEaton1405.28 @ 1
thumbzoomZoroG48215591442.571In Stock65Eaton Bussmann51.751442.57 @ 1
Carlton Bates Company051712178391447.01In StockCooper Bussmann1447.0 @ 1
thumbzoomGalcoKRP-C-1100SP-BUSS1825.561In StockBussmann0.0011825.56 @ 1
thumbzoomstandardelectricsupply.com22289482437.971In StockBussmann2437.97 @ 1
Digi-Key18777592457.481In StockEaton - Bussmann Electrical Division2457.48 @ 1
thumbzoomPlatt.com09604762528.141In StockEaton/Bussmann Series2528.14 @ 1
Graybar220491682725.94561In StockBussmann (Eaton)2725.9456 @ 1
thumbzoomcrescentelectric.com1057523732.9112Eaton Bussmann series3732.91 @ 1
Newark99M45054128.231In StockEATON BUSSMANN4128.23 @ 1
thumbzoomkempstoncontrols.co.ukKRP-C-1100SP4239.7845751In StockBussmann4239.784575 @ 1
Airline HydraulicsBUSSMANN KRP-C-1100SP5545.371In StockCooper Bussmann5545.37 @ 1
