A. O. Smith 9649

B00QW2MP62

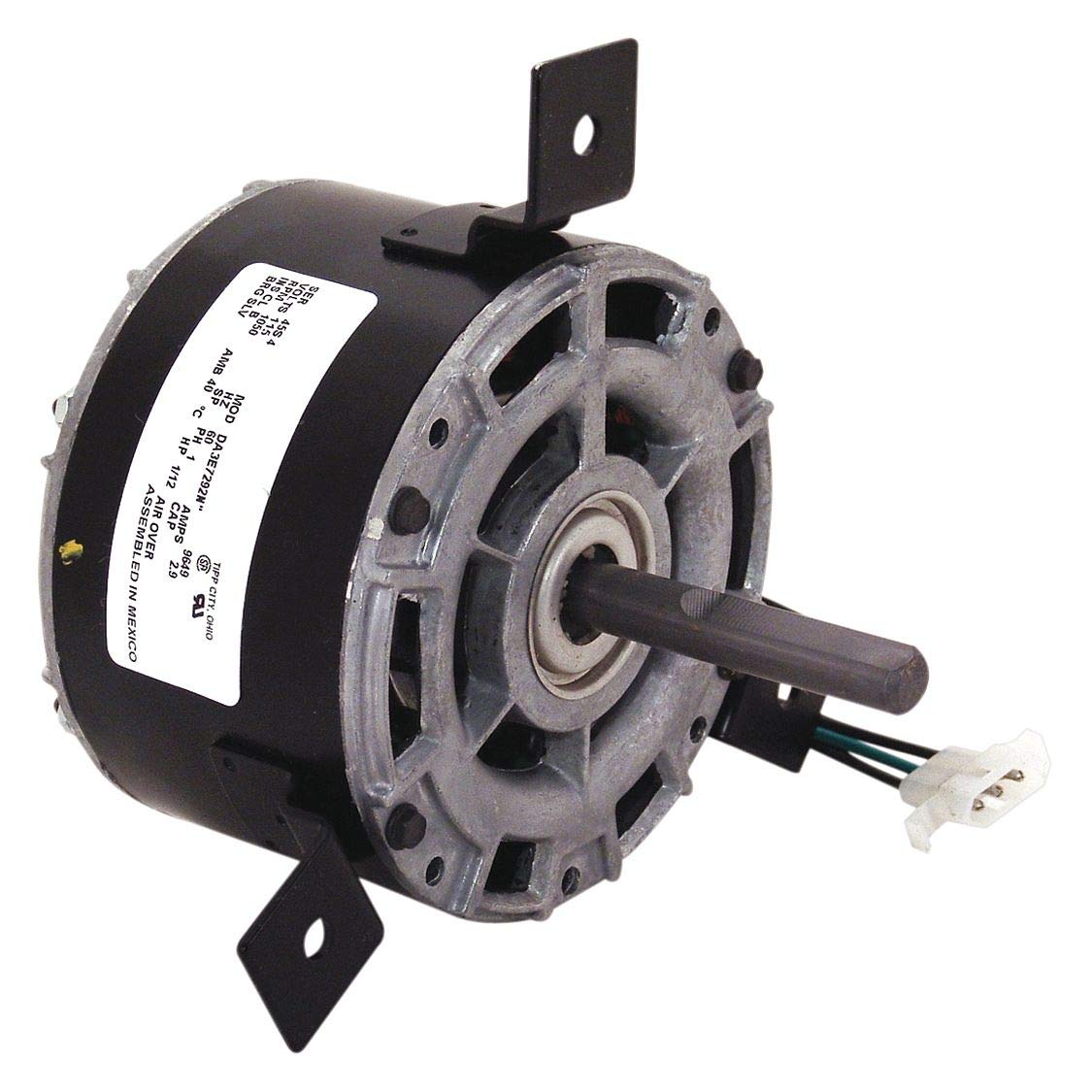

A.O. Smith Corporation 9649 1/12HP 115V 1050RPM 42Y Motor

A.O. Smith Corporation 9649 1/12HP 115V 1050RPM 42Y Motorzoom

Attributes

Key Value
9649 is listed in Centu.A.O. Smith DA3E7292, Br.
Amps2.9
ApplicationFan/Blower
Batteries Included?No
Batteries Required?No
BearingsSleeve
Best Sellers Rank#231,790 in Tools & Hom.
Body Dia.5"
Bolt Circle Dia.6-3/4"
BrandCentury
Capacitor RequiredNo
CertificationCertified frustration-f.
Country of Origin (subj.Mexico
Customer Reviews5.0 out of 5 stars1 rat.
Date First AvailableMarch 3, 2012
DutyAir Over
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame42Y
Full Load Amps2.9A
HP1/12 HP, 1/12
Hz60, 60 Hz
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemMotor
Item model number9649
Item Package Quantity1
Item Weight6.82 pounds
Length Less Shaft3 1/4 in
ManufacturerCentury Electric/AO Smi.
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationOEM Replacement
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter5"
Motor Enclosure DesignOpen Air-Over
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeLug
Motor Service Factor1.00
Motor Shaft DesignFlat
Motor Shaft RotationCounterclockwise Lead E.
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Thermal ProtectionAutomatic
MountingBracket
Mpn9649
Nameplate RPM1050 rpm
No. of Speeds1
Number of Shafts1
Number of Speeds1
OEM Replacement BrandBroan
Overall Length5.94"
Part Number9649
Phase1
Product Dimensions10.5 x 7.5 x 9 inches
Product TypeShaded Pole
Product with faster shi.true
Replacement ForBroan 99080178, Fasco D.
RotationCW Shaft End, CCWLE
RPM1050
RPM Range1001-1100
Service Factor (SF)1.00
Shaft Dia.1/2"
Shaft Diameter1/2"
Shaft Length2-11/16", 2.69"
Ship Weight7 lbs.
Shippingundefined (Fixed Shippi.
SKUZO-G0485527
StandardsUL Recognized, CSA Cert.
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UPC786674009234
Usable @ 200VNo
Usable @ 208VNo
Voltage115V
Voltage Compatibility115V AC, 120V AC
Volts115
Weight7 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomVoomi Supply964914.991In StockCentury Motors14.99 @ 1
thumbzoomhomeessentialsdirect.com964937.231In StockCentury Electric/AO Smith Motors Co6.8237.23 @ 1
thumbzoomsustainablesupply.comC1561198149.191In StockCentury7.05149.19 @ 1
AmazonTPB000LDJCMS157.291In Stock4CENTURY157.29 @ 1
AmazonUNKB000LDJCMS157.291In StockCENTURY157.29 @ 1
thumbzoomAmazonB000LDJCMS159.521In StockCentury159.52 @ 1
thumbzoomemotorpro.com9649159.621In StockCentury7.0159.62 @ 1
thumbzoomNational Supply NetworkB245167171.021In StockAO SMITH171.02 @ 1
Global IndustrialWBB245167171.951In Stock15CENTURY171.95 @ 1
thumbzoomZoroG0485527177.541In StockCentury7.05177.54 @ 1
hvacdiscountstore.comCEN--9649188.651In StockCENTURY MOTORS188.65 @ 1
thumbzoomindustrialstores.com9649190.551In Stock28Century Motors by Regal Beloit190.55 @ 1
thumbzoommidwestapplianceparts.com9649-AO-P197.921In StockAO Smith197.92 @ 1
thumbzoomsimsupply.comZO-G0485527217.211In StockCentury217.21 @ 1
thumbzoomptacsolutions.com9649217.812A.O. Smith217.8 @ 1
