A. O. Smith 9662

B000LET23G

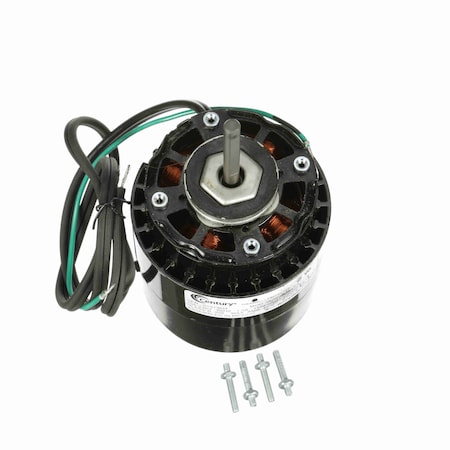

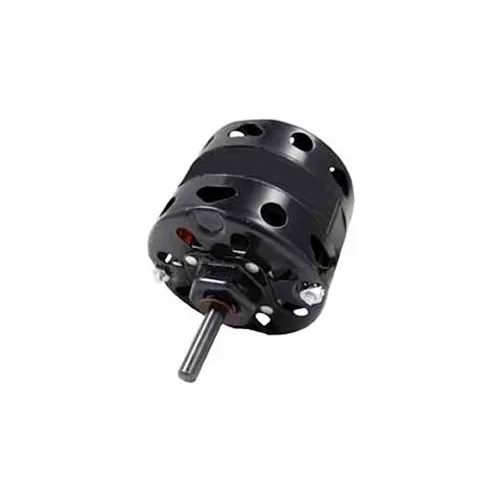

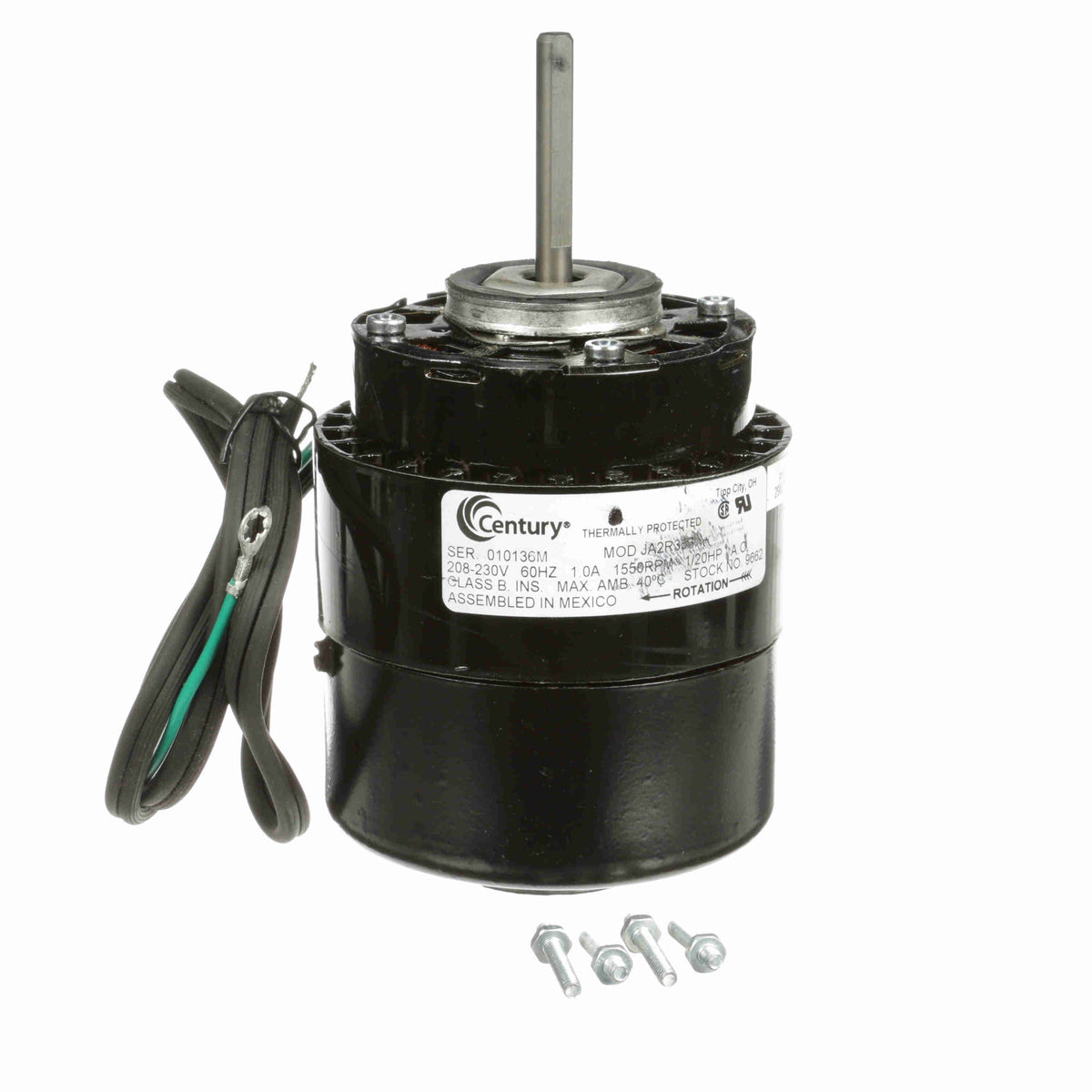

A.O. Smith 9662 1/20 HP 208-230 Volt 1550 RPM Blower Motor 9662

A.O. Smith 9662 1/20 HP 208-230 Volt 1550 RPM Blower Motor 9662zoom

Attributes

Key Value
Amps1
BearingsSleeve
Body Dia.4 in
Duty CycleContinuous
Enclosure TypeOFC (Open Fan Cooled)
Frame4.0, 3-3/8"
Full Load Amps1.0
HP1/20
Hz60
Includes8/32 Mounting Studs
Ins. ClassB
Insulation ClassB
ItemUnit Bearing Motor
Length Less Shaft5 1/8 in
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter3-3/8"
Motor Enclosure DesignOpen Air-Over
Motor Mounting PositionAll Angle
Motor Mounting TypeRing
Motor Service Factor1.00
Motor Shaft RotationCWSE
Motor Sub ApplicationRefrigerator/Freezer
Motor Thermal ProtectionAuto
MountingBand/Ring/Stud
Nameplate RPM1550
Number of Speeds1
Output Watts35
Overall Length7 1/8 in
Package Quantity1
Phase1
Product TypeShaded Pole
Resilient Ring Dia.1 3/4 in
Ring Dia.1 3/4 in
Ring to Ring Center4 3/4 in
RotationCW Shaft End
RPM1550
Service Factor (SF)1.00
Shaft Dia.5/16 in
Shaft Diameter5/16"
Shaft Length2 in, 2"
Ship Weight5 lbs.
Thermal ProtectionAutomatic
Voltage208-230
Voltage Compatibility115/208-230, 208-230, 2.
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomktool.net9662163.211In StockCentury163.21 @ 1
thumbzoomcshincorporated.comU9662177.161In StockAO Smith / Century5.0177.16 @ 1
thumbzoomsustainablesupply.comC2090633189.611In StockCentury15.0189.61 @ 1
thumbzoomemotorpro.com9662198.471In StockCentury5.0198.47 @ 1
thumbzoompatrickssupply.com9662205.01In StockCENTURY205.0 @ 1
thumbzoommidwestapplianceparts.com9662-AO-P214.2411AO Smith214.24 @ 1
thumbzoomNational Supply NetworkB244517221.081In StockAO SMITH221.08 @ 1
hvacdiscountstore.comCEN--9662224.241In StockCENTURY MOTORS224.24 @ 1
Grainger4VA44226.01In StockCENTURY226.0 @ 1
thumbzoomGlobal IndustrialWBB244517229.951In StockCentury229.95 @ 1
thumbzoomZoroG109245118366.9911Century Motors366.99 @ 1
