- mpn4Z617
- brandname: DAYTON
- manufacturername: DAYTON

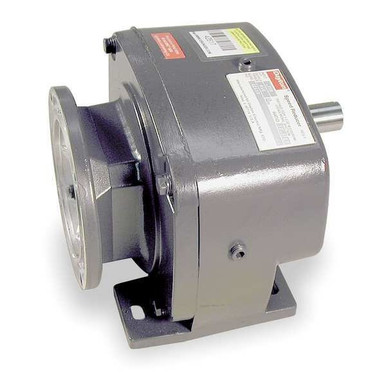

Speed Reducer, C-Face, 56C, 17.5:1
- Brand: Dayton
- PartNumber: 4Z617
- Model: 4Z617
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton
- Label: Dayton
Attributes
| Key | Value |
|---|
| Bearings | Ball |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 9 |
| Dimension U | 1 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56c |
| Gear Material | Hardened and Ground Ste. |
| Gear Type | Helical |
| Gearing | Helical and Spur |
| Housing Material | Cast Iron |
| Input RPM | 1725, 1750 rpm, 1750 |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade |
| Max. Input HP | 0.75 hp, 3/4, 0.75 |
| Max. Output Torque | 454 in.-lb., 454 in-lb |
| Max. Torque (In.-Lbs.) | 454 |
| Mpn | 4Z617 |
| NEMA/IEC Frame | 56c |
| Nominal Output RPM | 100 RPM, 100 |
| Nominal Ratio | 17.5:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 1 in |
| Output Shaft Dia. (In.) | 1 |
| Output Shaft Height | 4 7/8 in |
| Output Shaft Height (In. | 4.88 |
| Output Torque @ 1 HP | 454 in.-lb., 454 in-lbs |
| Output Torque @ 1/2 HP | 302 in-lb |
| Output Torque @ 1/2 HP . | 302 |
| Output Torque @ 1/3 HP | 201 in-lbs, 201 in-lb |
| Output Torque @ 1/3 HP . | 201 |
| Output Torque @ 1/4 HP | 151 in-lb |
| Output Torque @ 1/4 HP . | 151 |
| Output Torque @ 1/40 HP | 3,600 in-lbs |
| Output Torque @ 3/4 HP | 454 in-lbs, 454 in-lb |
| Output Torque @ 3/4 HP . | 454 |
| Overhung Load | 773 lb. |
| Overhung Load (Lb.) | 773 |
| Pinion | Hardened Steel |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Reducer Model No. | 84403 |
| Rotation | Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Orientation | Parallel |
| Ship Weight | 24 lbs. |
| Single/Double Output/Un. | Single Output |
| SKU | ZO-G2956931 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735340912 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2956931 | 699.99 | 1 | 23 | | Dayton | 24.0 | 699.99 @ 1 |
| Grainger | 4Z617 | 786.0 | 1 | 13 | 0 | DAYTON | | 786.0 @ 1 |
| AmazonTP | B000LDJ4E4 | 787.02 | 1 | In Stock | 3 | Dayton | | 787.02 @ 1 |
 | sustainablesupply.com | C1689961 | 810.45 | 1 | In Stock | | Dayton | 24.0 | 810.45 @ 1 |
 | simsupply.com | ZO-G2956931 | 874.59 | 1 | 9 | | Dayton | | 874.59 @ 1 |
| AmazonSC | B000LDJ4E4 | 879.38 | 1 | In Stock | | Dayton | | 879.38 @ 1 |
| grainger.ca | DMD4Z617 | 934.26474126 | 1 | In Stock | | DAYTON | 24.0 | 934.26474126 @ 1 |
 | Raptor Supplies | AE2QYH | 1149.283863 | 1 | In Stock | | DAYTON | | 1149.283863 @ 1 |
| emotorpro.com | 4Z617 | 1173.0 | 1 | In Stock | | Dayton | 24.0 | 1173.0 @ 1 |
