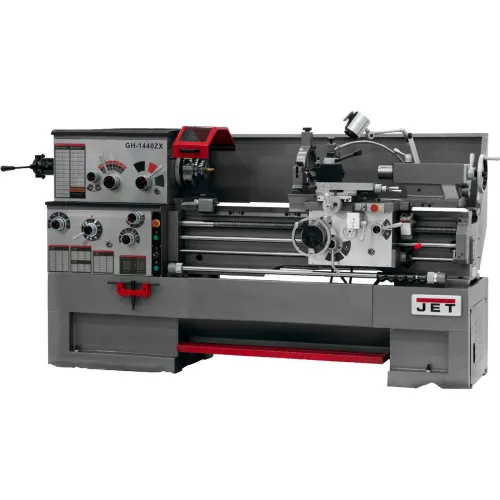

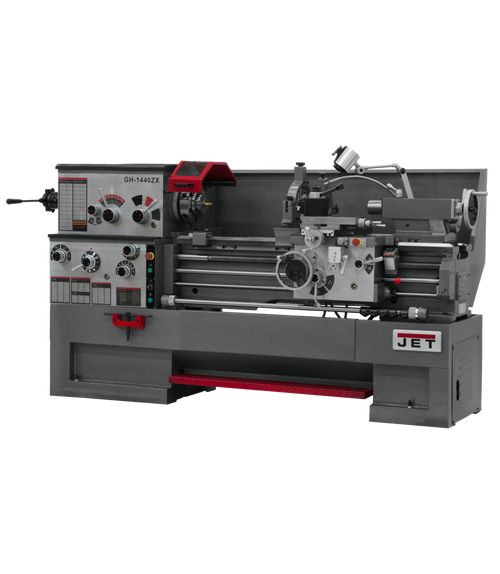

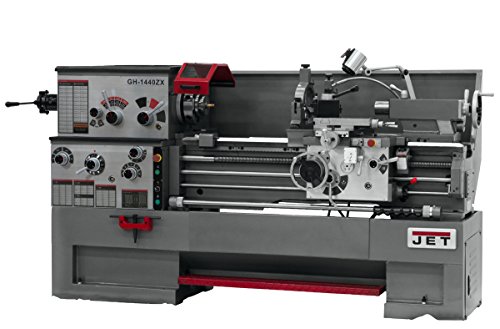

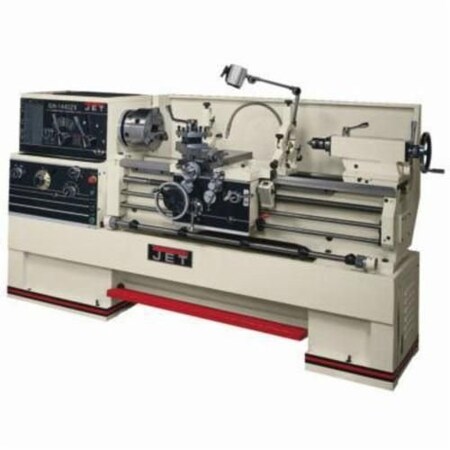

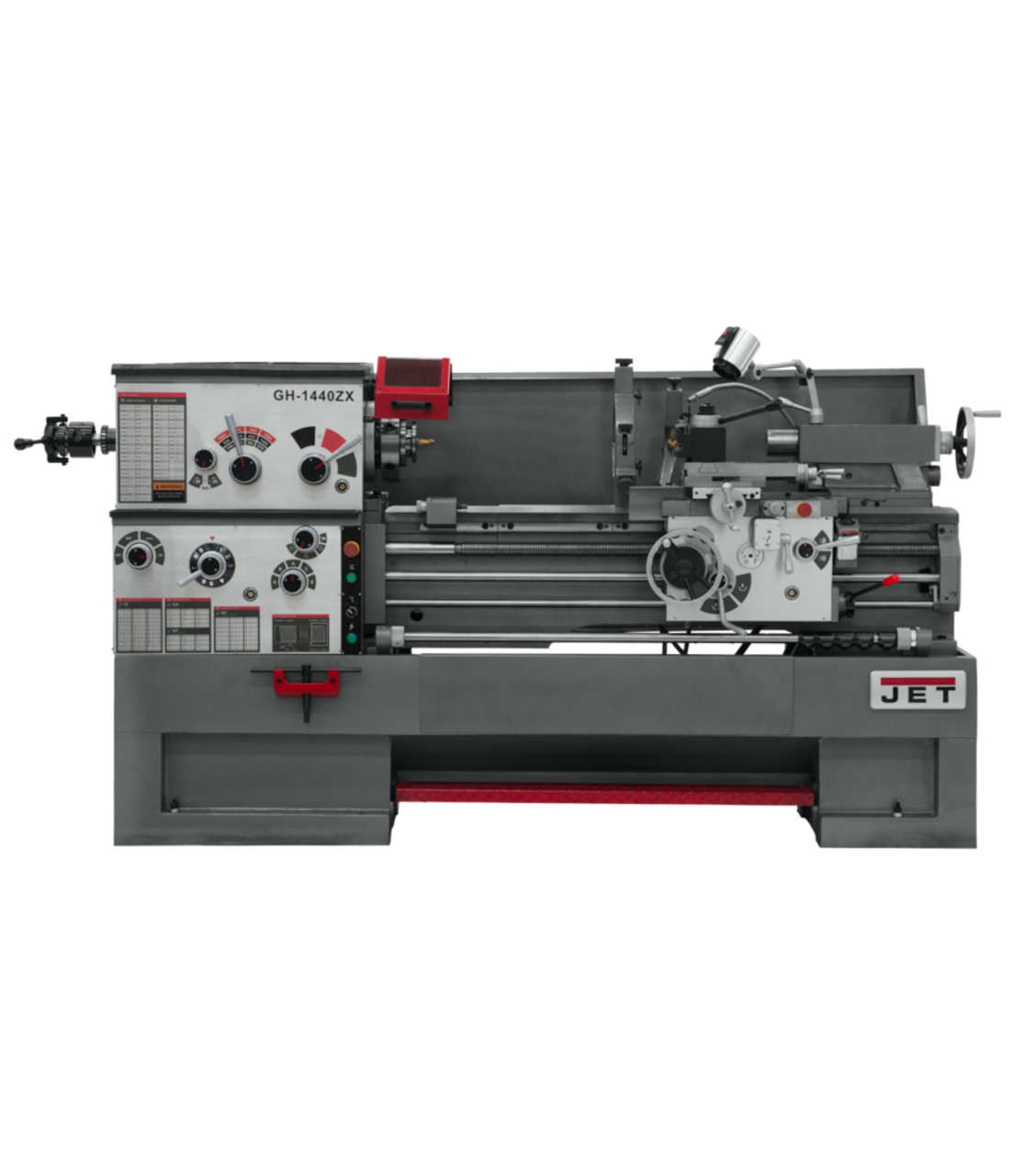

JET ZX-Series Large Spindle Bore Lathe with Collet Closer - 14in. x 40in. Model Number GH-1440ZX/321531

JET ZX-Series Large Spindle Bore Lathe with Collet Closer - 14in. x 40in. Model Number GH-1440ZX/321531zoom

Attributes

Key Value
Accessory 2Collet Closer </td
Carriage Travel (In.)36-9/16 </td
Compound Slide Travel (.5-1/8 </td
ConditionNew
Cross Slide Travel (In.)9 </td
Distance Between Center.40 </td
DriveGeared Head </td
Follow Rest Capacity (I.1/2 - 3-1/2 </td
Length of Gap (In.)12 </td
ManufacturerJet
Max Tool Size (In.)1 x 1 </td
Motor (HP)7-1/2 HP, 230/460, 3 Ph.
Number of Inch Threads61 </td
Number of Longitudinal .122 </td
Number of Metric Threads24 </td
Number of Spindle Speeds12 </td
Overall Dimensions (L x.96 x 44 x 66 </td
Package Quantity1
Prewired (V.)230 </td
Range of Cross Feeds (I..0006 - .0365 </td
Range of Inch Threads (.1-5/8 - 72 </td
Range of Longitudinal F..0015 - .0913 </td
Range of Metric Threads.05 - 20 </td
Range of Spindle Speeds.42 - 1,800 </td
Size14 x 40 </td
SKU321531
Spindle Bore (In.)3-1/8 </td
Spindle MountD1-8 </td
Spindle Taper with Slee.MT-7 (MT-5) </td
Steady Rest Capacity (I.3/8 - 7 </td
Style (Type)Engine - Large Spindle .
Swing Over Bed (In.)14 </td
Swing Over Cross Slide .7-5/8 </td
Swing Through Gap (In.)23-5/8 </td
Tailstock Spindle Trave.5 </td
Taper in Tailstock Spin.MT-4 </td
UPC66275551532
Weight (Lbs.)5,187 </td
Width of Bed (In.)13-3/8 </td

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
internationaltool.comJET-32153126949.01In StockJet26949.0 @ 1
elitemetaltools.com234629399.01In StockJET29399.0 @ 1
thumbzoomGlobal IndustrialWBB023085429399.01In Stock24JET29399.0 @ 1
thumbzoomJB ToolsJB-DS-WLT-JT9-32153129399.01In StockJet29399.0 @ 1
ToolUp.comJET 32153129399.01In StockJet29399.0 @ 1
thumbzoomAceToolJET-32153129399.01In StockJet5187.029399.0 @ 1
thumbzoomburnstools.com32153129399.01In StockJet29399.0 @ 1
thumbzoomtoolsplus.comJET32153129399.01In StockJET29399.0 @ 1
thumbzoomimsbolt.com32153129399.01In StockJET29399.0 @ 1
thumbzoomZoroG00803119532479.991In StockJet32479.99 @ 1
