Jet 321543

mpn321543
brandname: Jet
manufacturername: Jet

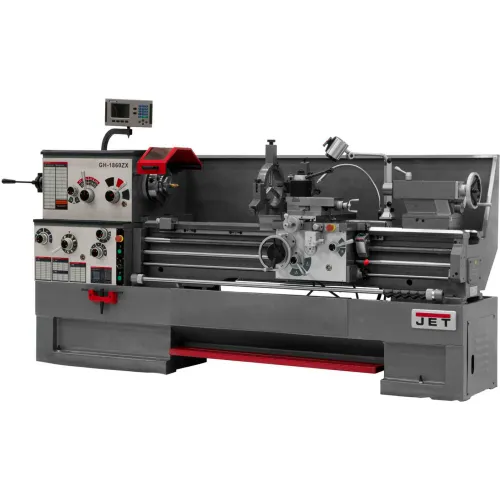

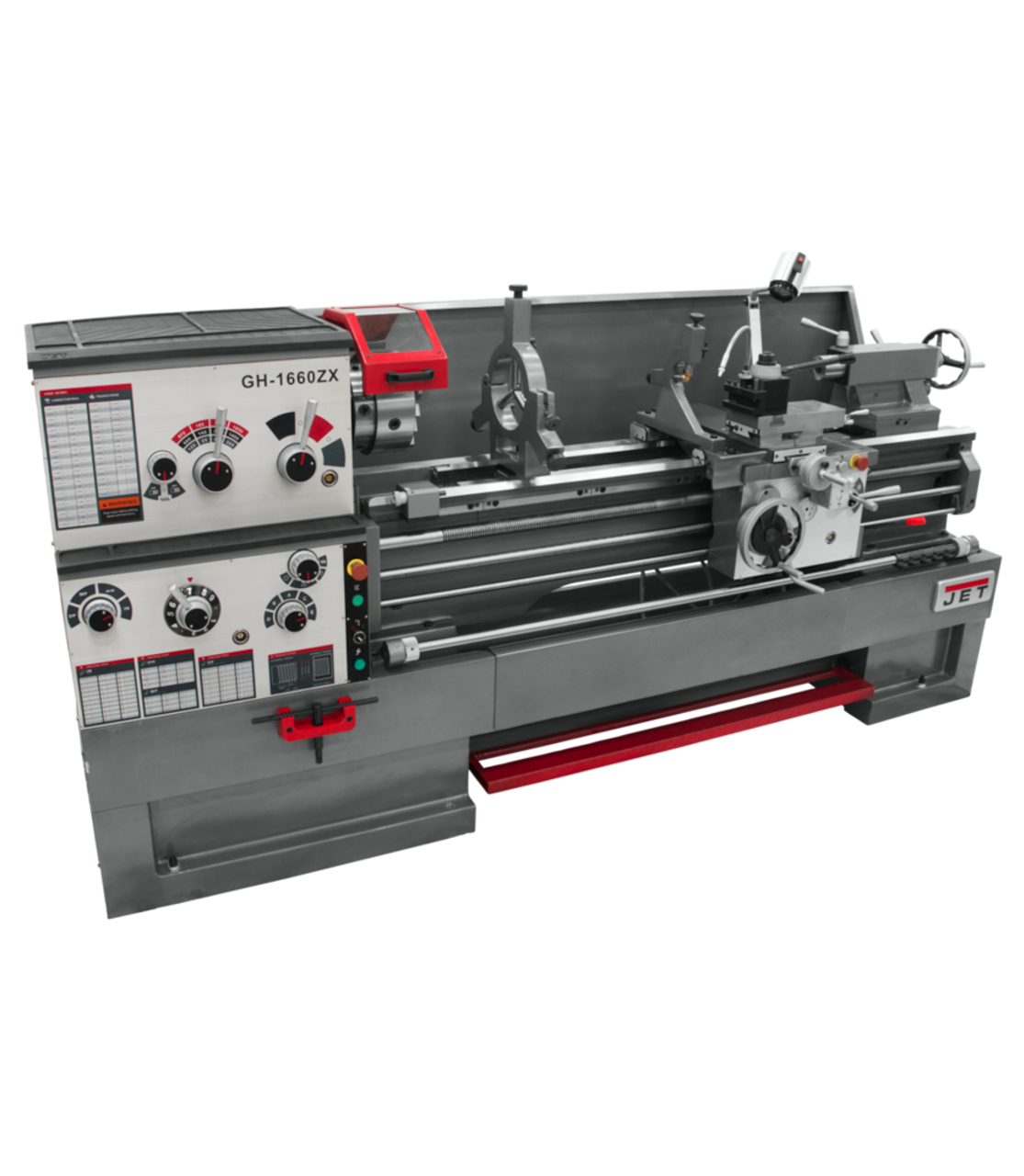

Jet GH-1660ZX With ACU-RITE 200S DRO With Taper Attachment (321543)

Brand: Jet
PartNumber: 321543
PackageQuantity: 1
Manufacturer: Jet
Label: Jet

Attributes

Key	Value
Accessory 1	Taper Attachment </td
Bed Width	8 3/4 in
Bed Width (In.)	13-3/8
Carriage Travel (In.)	55-9/16 </td
Compound Slide Travel (.	5-1/8 </td
Condition	New
Cross Slide Travel (In.)	9 </td
Cross Travel (In.)	9
Digital Readout	ACU-RITE 200S </td
Distance Between Center.	60, 60 </td
Drive	Geared Head </td
Follow Rest Capacity (I.	1/2 - 3-1/2 </td
Frequency	60 Hz
Gap Length	12 1/4 in
Gap Length (In.)	12-1/4
Horsepower	7.5 HP, 7 1/2 hp
Item	Lathe
Length of Gap (In.)	12 </td
Longitudinal Feed Rates	122
Manufacturer	Jet
Max Tool Size (In.)	1 x 1 </td
Motor (HP)	7-1/2 HP, 230/460, 3 Ph.
Motor HP	7-1/2
Motor Phase	3 Ph
Number of Inch Threads	61 </td
Number of Longitudinal .	122 </td
Number of Metric Threads	24 </td
Number of Spindle Speeds	12 </td
Number of Threads (mm)	24
Overall Dimensions (L x.	115 x 44 x 66 </td
Overall Height	116 1/2 in
Overall Length	116 1/2 in
Overall Width	40 in
Phase	Three
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.0006 - .0365 </td
Range of Inch Threads (.	1-5/8 - 72 </td
Range of Longitudinal F.	.0015 - .0913 </td
Range of Metric Threads	.05 - 20 </td
Range of Spindle Speeds.	25 - 1,800 </td
Size	16 x 60 </td
SKU	321543
Spindle Bore (In.)	3-1/8, 3-1/8 </td
Spindle Mount	D1-8 </td
Spindle Speed (RPM)	25 to 1800
Spindle Taper with Slee.	MT-7 (MT-5) </td
Stationary type	Engine - Large Spindle .
Steady Rest Capacity (I.	3/8 - 7 </td
Style (Type)	Engine - Large Spindle .
Swing In Gap (In.)	27-7/8
Swing Over Bed (In.)	16 </td, 16
Swing Over Cross Slide .	10 </td
Swing Through Gap (In.)	25-1/2 </td
Tailstock Spindle Trave.	5 </td
Tailstock Taper	MT3
Taper in Tailstock Spin.	MT-4 </td
Thread Range (In.)	1-5/8 to 72
Thread Range (mm)	.05 to 20
Voltage	230/460V AC
Warranty	2 Year
Weight (Lbs.)	5,795 </td
Width of Bed (In.)	13-3/8 </td

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Grainger	42W804	33867.0	1	In Stock	15	JET		33867.0 @ 1
internationaltool.com	JET-321543	34899.0	1	In Stock		Jet		34899.0 @ 1
Global Industrial	WBB0230956	37999.0	1	In Stock	24	JET		37999.0 @ 1
JB Tools	JB-DS-WLT-321543	37999.0	1	In Stock		Jet		37999.0 @ 1
toolsplus.com	JET321543	37999.0	1	In Stock		JET		37999.0 @ 1
elitemetaltools.com	10358	37999.0	1	In Stock		JET		37999.0 @ 1
AceTool	JET-321543	37999.0	1	In Stock		Jet	5795.0	37999.0 @ 1
burnstools.com	321543	37999.0	1	In Stock		Jet		37999.0 @ 1
ToolUp.com	JET 321543	37999.0	1	In Stock		Jet		37999.0 @ 1
TylerTool	JETN321543	37999.0	1	In Stock		JET		37999.0 @ 1
imsbolt.com	321543	37999.0	1	In Stock		JET		37999.0 @ 1
Zoro	G9879466	38549.0	1	1		Jet	6220.0	38549.0 @ 1
